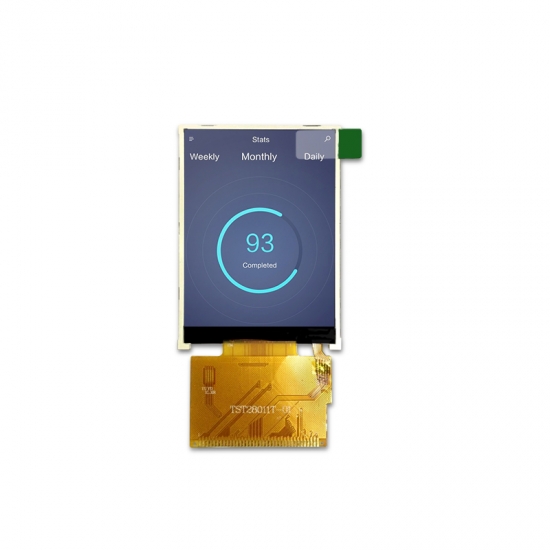

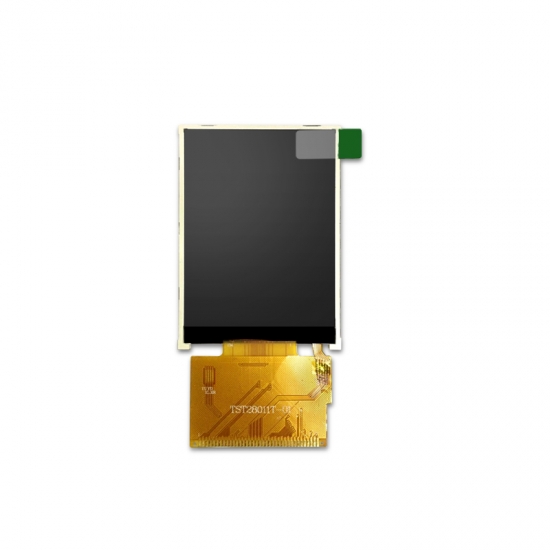

2.8" 240x320 resolution TFT LCD module with ST7789V controller
  • Item No. :

    TST28011T-01
  • LCD Type :

    TFT
  • Payment :

    T/T in advance
  • MOQ :

    1000
  • Lead Time :

    3~4 weeks
inquire now Data sheet
  • Specifications
  • dimention
  • effect

2.8" 240x320 resolution TFT LCD module with ST7789V controller

Specification

  Specification
Display type 262k color TFT,Transmissive
Description QVGA 240x320 2.8 tft lcd
Display Colors 16.7M Dithering
Outline Dimension(mm) 50.00x69.20x2.25mm
A.A.(mm) 43.20x57.60mm
Driver IC ST7789V
Resolution(dots)_ 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Dots Pitch 0.18x0.18
Color Configuration RGB stripe
Backlight 4 LEDs, White
Weight(g) TBD
Interface 8080 system 8/16 bits parallel interface
Module lifetime(Hours) 50,000-100,000
