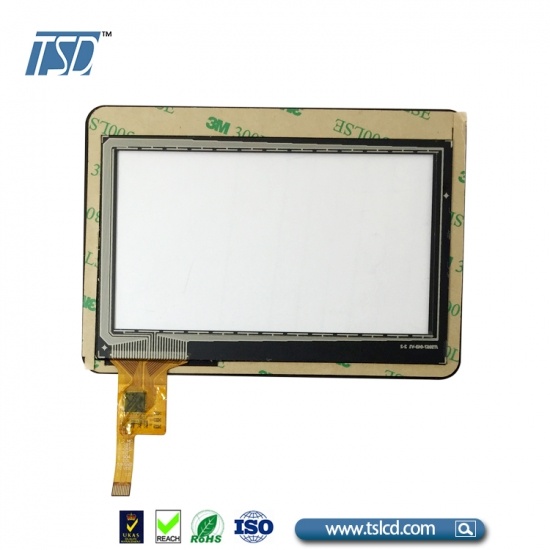

500cd/m2 4.3'' tft lcd panel with cover lens touch

Feature:

500cd/m2 4.3'' tft lcd panel with cover lens touch

*AR,AG,AF design if need

*customized cover lens for any applications

*China factory price support .




Specification
Part No. TST043015CMHX-P
Outline Dimension(mm) 105.5x67.2x4.2(Typ.)
Display Area(mm) 95.04(H)x53.856(V)
Driver IC HX8257A
Resolution(dots) WQVGA, 480*RGB*272
Description 4.3" 500 nits brightness lcd display panel
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 480RGB(H)*272(V)
Pixel Pitch 0.198(H)*0.198(V)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,262k colors, 4.3 inch tft lcd
Surface treatment Antiglare, Hard-Coating(3H), AF,AR coating
Weight(g) 50(Typ.)
Module brightness(cd/m2) 500(Typ.)
Backlight LED Side-light type,
10 pcs. white led(20MA/chip, recomendation)
Power Consumption(w) Logic system 0.09Max.
B/L system 0.924Max.




Customized CTP for 4.3inch TFT:


We can design and customize Capacitive touch panel for you with different size, shape and Logo. Welcome to contact us for details. We would like to help you develop your project.


Custom CTP

1.up to 10 touch points

2. CTP Bonding : OCA bonding or 3M double side tape

3.  AR(anti-reflective),AG(anti-glare),AF(anti-fingerprint)Coating available

4. …



Custom Process:

Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks





Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
