6H viewing angle 3.5inch QVGA TFT LCD with 54pin RGB interface
  • Item No. :

    TST035QVIH-28BC
  • LCD Type :

    TFT ,transmissive,nomal type
  • Payment :

    T/T in advance
  • MOQ :

    500
  • Lead Time :

    15days
  • Package Details :

    200pcs/CTN
inquire now Data sheet
  • Specifications
  • dimention

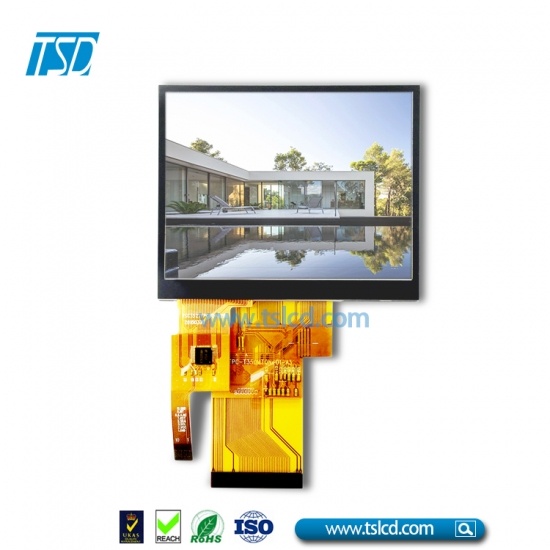

  • effect

3.5 inch tft LCD DISPLAY QVGA 320x240 dots landscape type

6H viewing angle 3.5inch 320x240 Dots with 54pin RGB interface

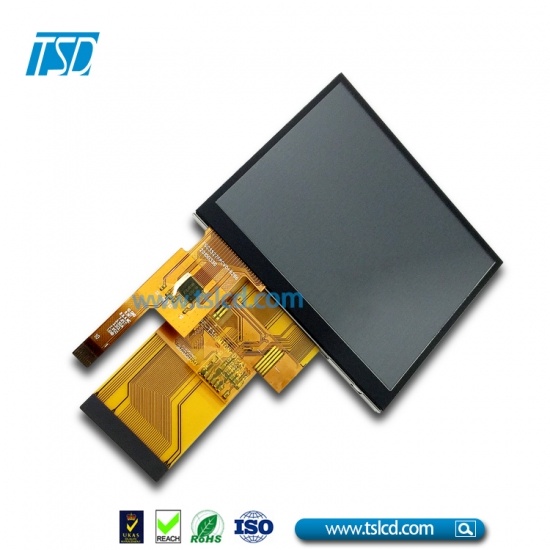

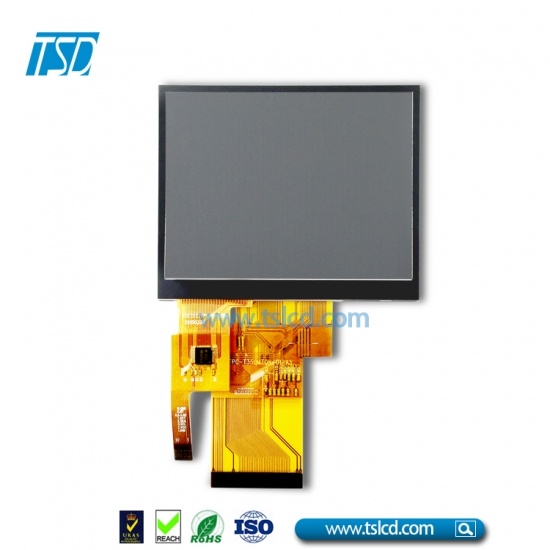

3.5 inch TFT LCD module with touch screen panel, LCD with 6 LED in-parallel backlight, resolution 320RGB x 240(QVGA)

Specification
LCD type 3.5 inch tft lcd, Transmissive
Display type 3.5 inch TFT,16.7M color, normal white
Item description 3.5" tft lcd screen, 12H view direction, 54pins
Driver element a-si TFT Active matrix
Outline Dimension(mm) 76.75(W) x 63.7(H) x3.27(D)
A.A.(mm) 70.08(W) x 52.56 (H)
Driver IC HX8238
Resolution(dots) 320x240 resolution
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Pixel Pitch 0.219x0.219
Logic Volatge 2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Interface 54pins, RGB interface
Backlight 6 LEDs serial, White
Weight(g) 29.3
Interface RGB
Module lifetime(Hours) 50,000-100,000
