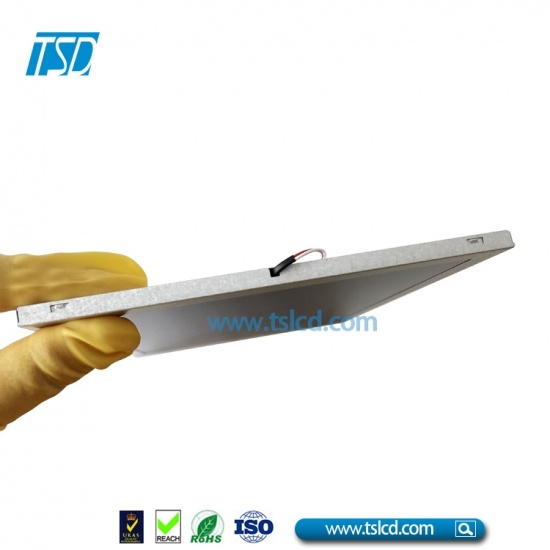

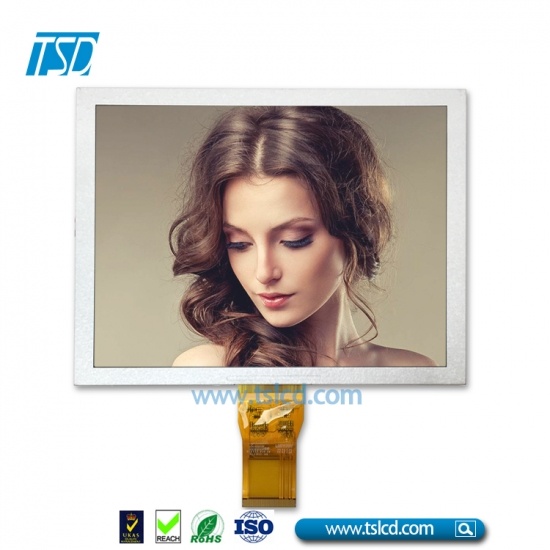

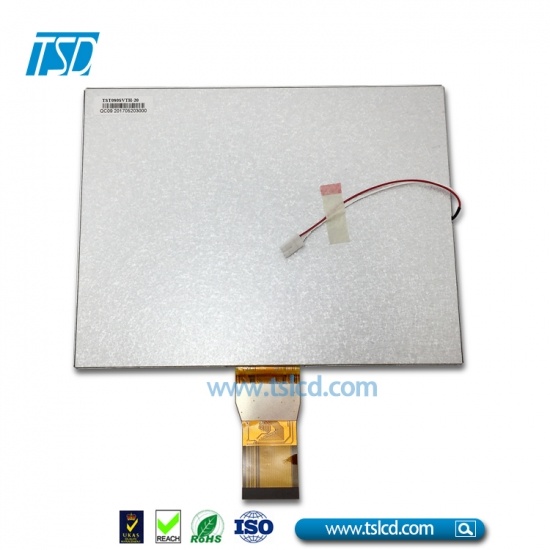

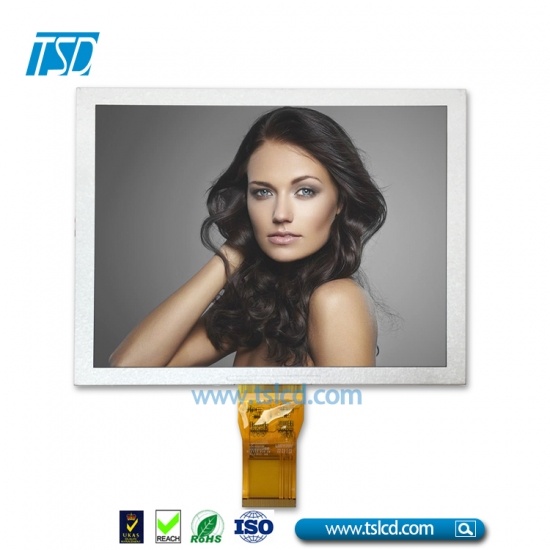

8inch 800*480 color TFT LCD module display 27 LEDs hight brightness backlight

8inch 800*480 color TFT LCD module display 27 LEDs hight brightness backlight

12 O'clock viewing angle with 24-bit RGB interface


8” color TFT LCD 800x480 display module



Specification
Part No. TST800MIWN-01, 8 inch lcd panel
Outline Dimension(mm) 164.9x100.0x6.7
Display Area(mm) 154.08x85.92
Resolution(dots) WVGA, 800*RGB*480
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel 94% transmittance RTP
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,Transmissive, 7 inch TFT
Surface treatment Antiglare
View direction  12H
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface Digital
Module lifetime(Hours) 50,000-100,000
