Definitions of On-Cell, In-Cell and OGS:

On-cell: Indicates that the touch layer will be above the liquid crystal

refers to the method of embedding touch screen between color filter and polarizer of display screen. It means touch sensor is equipped on LCD panel, which is much less difficult than in Cell technology

In-Cell: It refers to the method of embedding the touch panel function into the liquid crystal pixels, it means embedding the touch sensor function inside the display screen, which makes the screen thinner and lighter.

OGS(One Glass Solution): It refers to a protective screen for electronic products is made by directly forming ITO conductive film and sensor on protective glass. A piece of glass protects both the glass and the touch sensor.

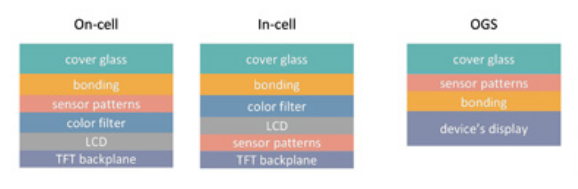

Diagram of On-Cell, In-Cell and OGS

Different between On-Cell and In-Cell

Compare about On-Cell, In-Cell and OGS:

1. In terms of screen penetration and visual effects, OGS is the best, by In-Cell and On-Cell.

2. In-Cell is the lightest and thinnest, by OGS, and On-Cell is slightly worse than the former two.

3. In terms of the strengthen of the screen, On-Cell is the best, OGS is the second, In-Cell is the worst.

4. In terms of technology and production control, In-Cell/On-Cell is more complex than OGS.

5. With the advancement of technology, in-Cell/On-Cell screens are at the same level as OGS in terms of quality rate.
