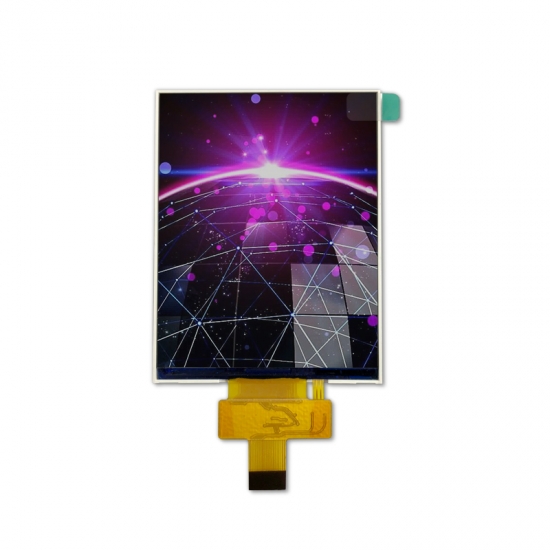

QVGA 240x320 resolution 3.5 inch IPS mono TFT lcd with high performance
  • Item No. :

    TST035QVGS-43
  • LCD Type :

    China
  • Payment :

    T/T, Paypal
  • MOQ :

    2000
  • Lead Time :

    25 days
  • Package Details :

    Shenzhen/Hongkong
inquire now
  • Specifications
  • dimention
  • effect

LCD type

3.5" tft lcd , Transmissive

Display type 3.5" TFT 262k color, normal white
Item description 3.5 inch IPS MONO TFT
Driver element a-si TFT Active matrix
Outline Dimension(mm) 64.16 (w) x 83.39 (h) x 3.8 (t) mm
A.A.(mm) 53.28 (w) x 71.04 (h) mm
Driver IC ST7512
Resolution(dots) 240x320 resolution
Viewing Direction 80/80/80/80
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Pixel Pitch 0.222x0.222
Number of pins
20
Pixel arrangement W-stripe
Display mode Normally white
Interface MCU 8 bit Parallel
Backlight White
Weight(g) TBD
Interface RGB
Module lifetime(Hours) 50,000-100,000


QVGA 240x320 resolution 3.5 inch IPS mono tft lcd with high performance
