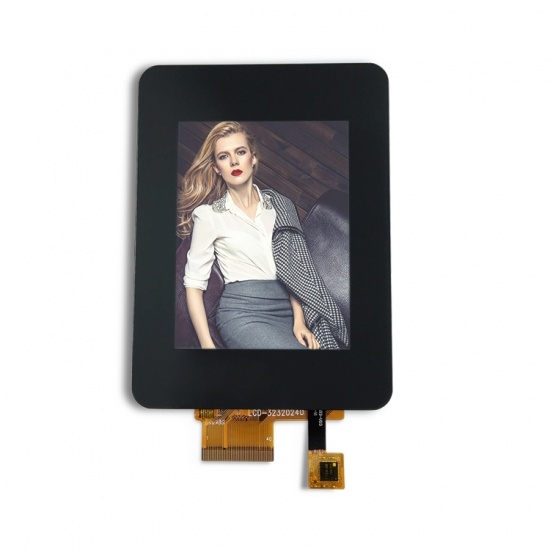

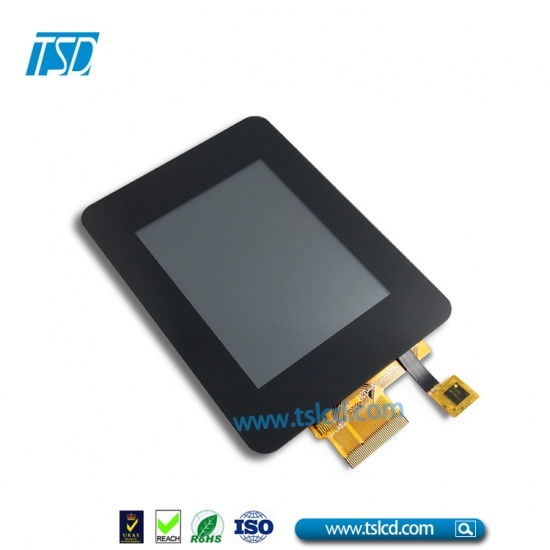

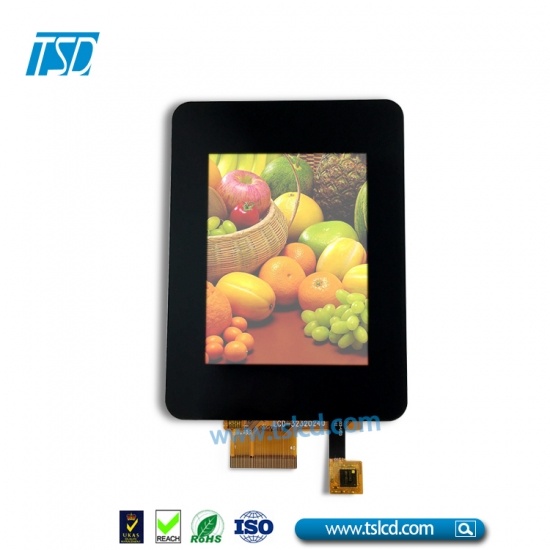

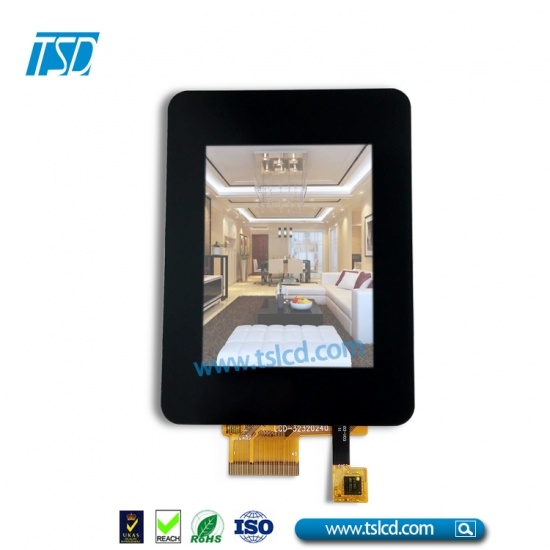

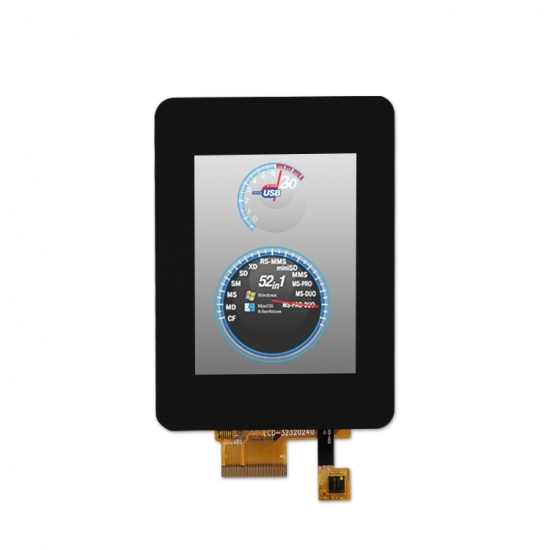

RGB Vertical stripe 3.2inch 240x320 TFT LCD with CTP
  • Item No. :

    TST32QV08AC
  • LCD Type :

    TFT ,transmissive,nomal type
  • Payment :

    T/T in advance
  • MOQ :

    500
  • Lead Time :

    7days
  • Package Details :

    200pcs/CTN 15KG/CTN
inquire now Data sheet
  • Specifications
  • dimention
  • effect

Specification
LCD type 3.2 inch TFT,Transmissive
Display type 3.2 inch TFT, 262k color, normal white
Description 3.2 inch tft lcd ili9341 with touch
Driver element a-si TFT Active matrix
Outline Dimension(mm) 55.04x77.7x4.45 (with touch panel)
A.A.(mm) 48.6x64.8
Driver IC ILI9341
Resolution QVGA 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Operating Voltage 2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 5 LEDs, White
Weight(g) TBD
System Interface  8 bit 8080 system Parallel interface
Touch panel 4 wire resistive TP
Module lifetime(Hours) 50,000-100,000
