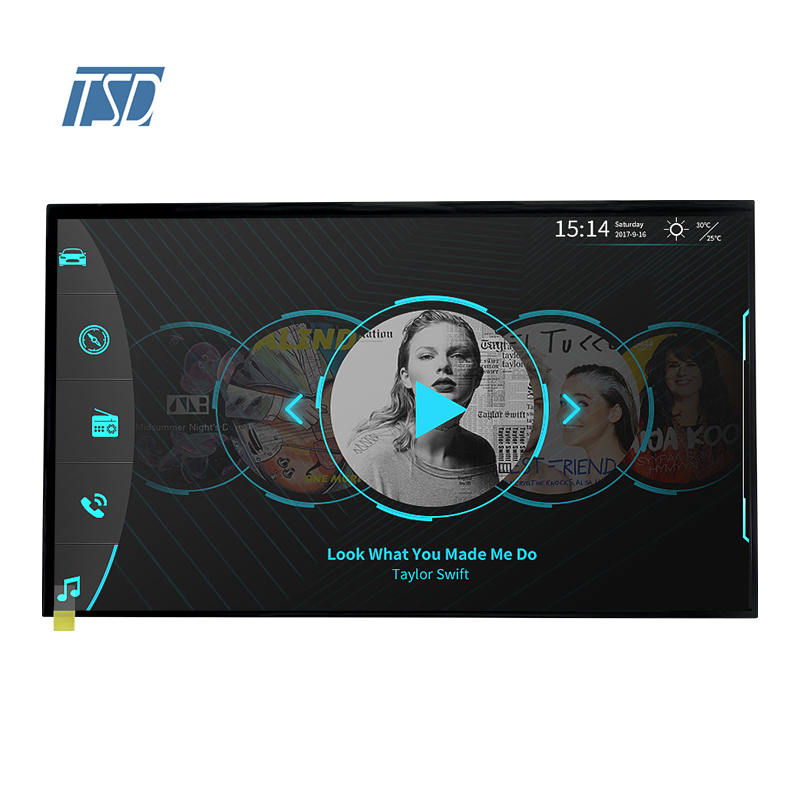

TSD 1024×768 resolution 15 inch IPS tft lcd module with LVDS interface

  • Model Name: TST150XGBE-N10
  • LCD Type: 15 inch TFT LCD display
  • Resolution: 1024*768
  • Viewing angle: IPS all viewing angle
  • Brightness: 350 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

TSD TFT item number TST150XGBE-N10 is 15 inch, IPS TFT LCD, 1024*768 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
Part No. 15 inch IPS TFT
Outline Dimension(mm) 326.5x253.5x9.7
Active Area(mm) 304.128x228.096
Operating temperature(°C) -20 to 70
Storage temperature(°C) -30 to 80
Resolution(dots) 1024xRGBx768
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 15 inch TFT
Brightness 350 nits
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VDD Power Supply , 3.3V(typ.)
2 VDD Power Supply , 3.3V(typ.)
3 Vss Ground
4 NC No Connection
5 RIN0- -Lvds differential data input 0
6 RIN0+

+LvDS differential data input 0

7 Vss Ground
8 RIN1- -LVDS differential data input 1
9 RIN1+ +LVDS differentia data input 1
10 Vss Ground
11 RIN2- -LVDS differential data input 2
12 RIN2+ +LVDS differential data input 2
13 Vss Ground
14 CLKIN- -LVDS differential clock input CLK
15 CLKIN+ +LVDS differential clock input CLK
16 VSS Ground
17 RIN3- -LVDS differential data input 3
18 RIN3+ +LVDS differential data input 3
19 Vss LED Ground
20 NC No Connection

Applications:



For our 15 inch LCD display TST150XGBE-N10, it's widely using in advertising machine.

Product Features:

1.15 inch 1024*768 res. with 20 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
