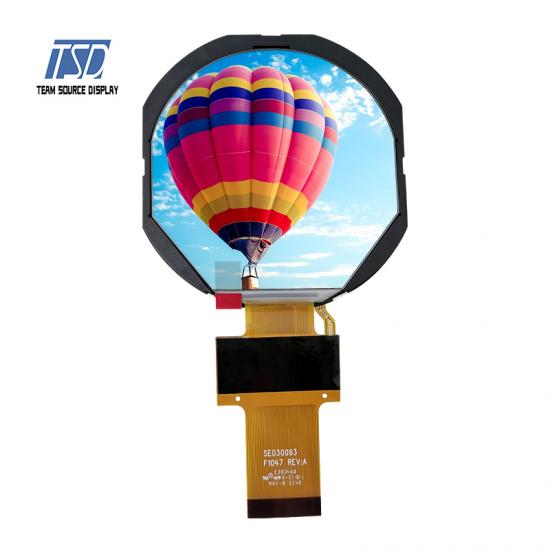

432x432 resolution 3 inch round ips tft lcd display with RGB interface

432x432 resolution 3 inch round ips tft lcd display with RGB interface



  • Item No.:

    TST030GN06-01
  • Payment:

    T/T in advance
  • Product origin:

    round lcd
  • Lead Time:

    4~5 weeks
  • Specifications
  • Dimention
  • Effect

Specification

LCD type 3 inch IPS round tft display module
Display type 3" round TFT
Model name TST030GN06-01
Outline Dimension(mm)
94x94x7.7
A.A.(mm) 76.4x76.4
Touch screen
Available to custom
Resolution(dots)_ 432*RGB*432
Viewing Direction All
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 432(H)x 3RGB x 432(V)
Operating Volatge 3.3v
Logic Voltage 1.8v-2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Surface treatment Antiglare, Hard-Coating(3H)
IC Package Type COG
Luminance 500 nits
Backlight white LEDs
Interface
RGB
Module lifetime(Hours) 50,000-100,000
Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
