5.0 inch TFT

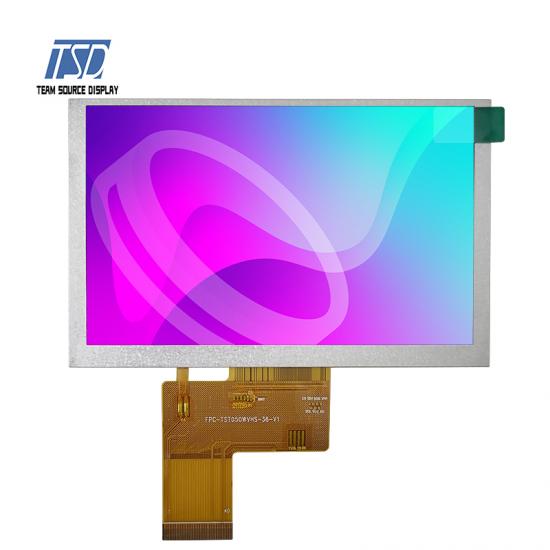

 /5.0 Inch TN Screen 800x480 Resolution TFT Display with TTL Interface RTP
Categories

5.0 Inch TN Screen 800x480 Resolution TFT Display
5.0 Inch TN Screen 800x480 Resolution TFT Display 5.0 Inch TN Screen 800x480 Resolution TFT Display 5.0 Inch TN Screen 800x480 Resolution TFT Display

5.0 Inch TN Screen 800x480 Resolution TFT Display with TTL Interface RTP

LCD Size: 0.96''-32''(Normal, ONCELL/TN&IPS). Brightness can be designed per customer's

FPC Design: Customized Interface and Pins definition/Customized FPC Shape and Material

LCD Viewing Angle: Full range of IPS LCD Options Super-wide viewing angle Glare or Anti-glare Polarizer O-film solution

Backlight(BL) design: Customized Outline Dimension BL Frame Material: Meta/Plastic/Metal & Plastic integrated/Lifetime up to 50K hours High brightness up to 1000 nits

Customized CTP 0.96-50 inch: Slide, Single-touch in-cell, on-cell, G+G, G+F, GGG industry or automotive CTP solutions with OCA, OCR optical bonding



  • Item No.:

    TST050WVZO-01P

  • Payment:

    T/T in advance

  • Price range:

    1000 - 10000/$13

  • Product origin:

    Guangdong, China

  • Min order:

    5000

  • Shipping port:

    Hongkong/Yantian

  • Lead Time:

    3~4 weeks
Inquiry now
  • Specifications
  • Dimention
  • Effect
Type:
TFT
Display Size:
5.0 Inch
Supplier Type:
Manufacturer
Place of Origin:
Guangdong, China
Brand Name:
TSD
Display mode:
a-Si TFT, Normally White, Transmissive, TN
Resolution:
800*480
Viewing Direction:
12 O'CLOCK
Outline Dimension:
120.7*75.8*4.00
Viewing Area:
108.0(H)x64.8(V)
Pixel pitch(WxH):
0.045(H) x 0.135(V)
Luminance:
420
Operating Temperature:
-20°C~70°C
Storage Temperature:
-30°C~80°C
Color Depth:
16.7M
Outline Dimension:
120.7*75.8*4.00
Viewing Area:
108.0(H)x64.8(V)
Pixel pitch(WxH):
0.045(H) x 0.135(V)
