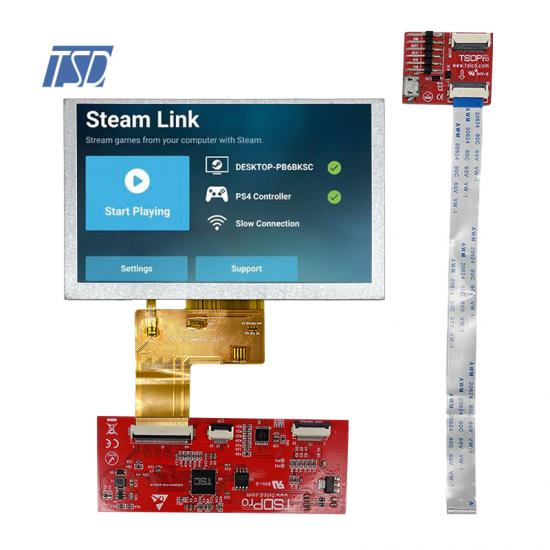

HMI interface 5 inch tft lcd Resistive panel 800x480 UART interface 5 inch tft lcd display module
| Specification | ||
| Part No. | ProLCD-T050R01 | |
| Outline Dimension(mm) |
1120.70(W) x 75.80(H) x 4.15(D)
|
|
| Active Area(mm) | 108.00(W) x 64.80 (H) | |
| Resolution(dots) | 800x (RGB) × 480 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480V) | |
| Touch panel | RTP | |
| Driver IC | ST7282 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,TN, 5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction |
ALL |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface |
UART |
|
| Module lifetime(Hours) | 50,000-100,000 | |
