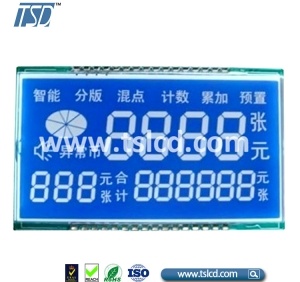

TSD TSG094B-F-T COG with Pin solder TN segment lcd panel



  • LCD Type:  TN, HTN
  • Polarizer type: Reflective
  • Connector Type: Metal Pins
  • The range of operating Temperature: -40~90°C
  • Custom Service Support





Description:



TSD is a professional LCD manufacturer in China, specializing in TFT LCD, Mono LCD, Touch Panel, OLED Display and E-ink for many years. TSD has developed thousands of OEM&ODM LCD Modules for various fields, including Smart Home Appliances, Industrial, Automotive, Medical, etc.

TSD TSG094B-F-T COG with Pin solder TN segment lcd panel:

Custom Process:

Confirm specific requirements  Pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks

OEM and customization are welcome!




Drawing:


Specifications:



General Specification
Part No.  TSG094B-F-T
Outline Dimension(mm)

45.00(W)x100.0(H)x22.30(D)

Active Area(mm) 42.00(W) x 23.5(H)
Resolution(dots)  1-9 Digital Custom
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 1-9 Digital
Touch panel  Without
Driver IC ML1001F-2U
Pixel arrangement Segment
Display mode TN/ Refective/ Positive
Surface treatment No
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface PIN
Module lifetime(Hours) 50,000-100,000




Applications:



The energy meter, digital meter, oiling machine, crane, and air conditioner are customized for your device.




Product Features:

  • 1. TN Reflective Positive LCD with 1-9 Digital Number

    2. COG+PIN Connector

    3. 12 O'clock Viewing Angle

    4. Support Custom the size, shape, content, display mode, etc.
