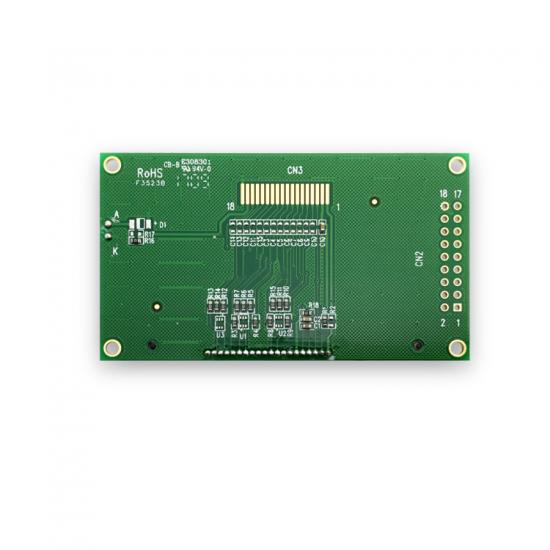

Wholesale FSTN 128x64 dots COG LCD module

Wholesale FSTN 128x64 dots COG LCD module


Specifications

Item

128x64 lcd display

LCD Type

FSTN

Part number

TSG12864-1185-FFDLWS-R

Palarizer Mode

Transflective

Polarizer UV-Cutting

With

LCD mode

Positive

Viewing angle

6 o'clock

Driving method

DUTY:1/65; BIAS: 1/9

Module size

74x 39x 8mm

View Area

50.00 x 25.00mm

Driver IC Package

COG

Active Area (W x H)

46.05 x 23.01mm

Dot Matrix

128 × 64 Dots




  • Item No.:

    TSG12864-1185-FFDLWS
  • Payment:

    T/T, paypal
  • Product origin:

    Shenzhen,China
  • Min order:

    5000
  • Shipping port:

    EXW Factory
  • Lead Time:

    4-5wks
  • Specifications
  • Dimention
  • Effect

Product description:



Specifications

Item

128x64 lcd display

LCD Type

FSTN

Part number

TSG12864-1185-FFDLWS-R

Palarizer Mode

Transflective

Polarizer UV-Cutting

With

LCD mode

Positive

Viewing angle

6 o'clock

Driving method

DUTY:1/65; BIAS: 1/9

Module size

74x 39x 8mm

View Area

50.00 x 25.00mm

Driver IC Package

COG



Active Area (W x H)

46.05 x 23.01mm

Dot Matrix

128 × 64 Dots





Character Module Series:

  1. Various LCD Type Available
  2. Various Backlight Color Available
  3. Various 232 or USB interface Available
  4. Compatible Various Control IC:S6A0069.SPLC780D,ST7066U
  5. Supply Various Characters: English, Japan, European, Russian etc.
  6. Our standard character module:8x2,16x1,16x2,16x4,20x2,20x4,40x2,40x4.

Graphic Module Series: COB/COG available

128*32,128*64,160*128,240*320,240*128,256*128,etc.
