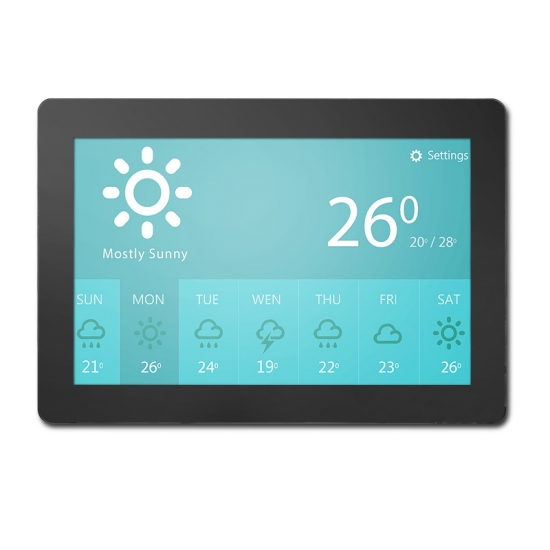

10.1 inch Capacitive touch screen LCD display 1024x600 resolution with LVDS interface
  • Item No. :

    TST101WSBH-32C
  • LCD Type :

    China
  • Payment :

    T/T in advance
  • MOQ :

    1000
  • Lead Time :

    3~4 weeks
  • Package Details :

    Shenzhen/Hongkong
inquire now Data sheet
  • Specifications
  • dimention
  • effect

10.1 inch Capacitive touch screen LCD display 1024x600 resolution with LVDS interface



Specification
LCD type 10.1" tft lcd display Module
Display type 10.1 inch TFT, 16.7M color, normally white
Driver element color active matrix thin film transistor
Backlight white LED
Outline Dimension(mm) 235*143*6.5
Active Area.(mm) 222.72*125.28
Resolution(dots) 1024xRGBx600
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Backlight LEDs
 24 white LEDs
Color depth
16.7M
Luminance(cd/m2) 400(typ.)
Touch Panel
with CTP
Application Notebook, advertisement display, etc.
Touch controller
GT928
Interface  LVDS
Module lifetime(Hours) 50,000-100,000
