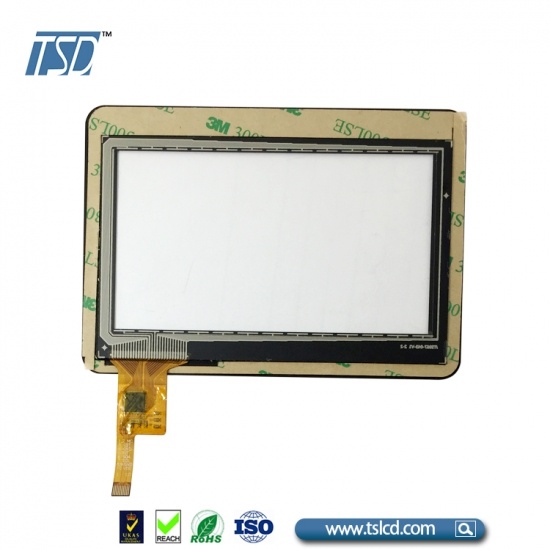

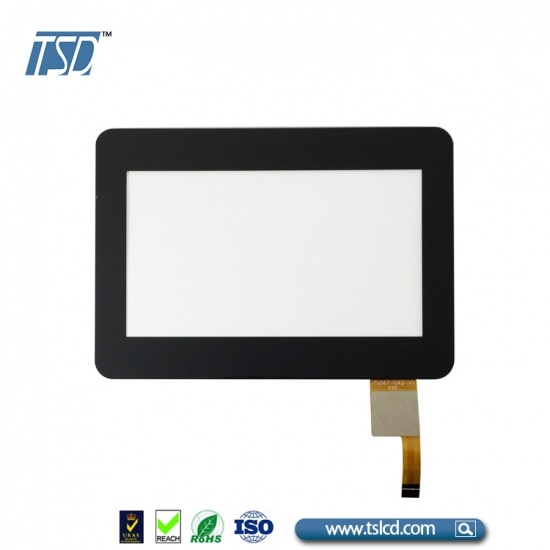

TFT cover lens 4.3'' tft lcd display with CTP
  • Item No. :

    TST043015CMHX-P
  • LCD Type :

    4.3'' tft lcd with AR coating
  • Payment :

    TT
  • MOQ :

    1
  • Lead Time :

    3-4weeks
  • Exw price :

    Get lastest price
  • Package Details :

    base on the final pakage
inquire now
  • Specifications
  • dimention
  • effect



Specification
Part No. TST043015CMHX-P
Outline Dimension(mm) 105.5x67.2x4.2(Typ.)
Display Area(mm) 95.04(H)x53.856(V)
Driver IC HX8257A
Resolution(dots) WQVGA, 480*RGB*272
Description 4.3" 500 nits brightness lcd display panel
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 480RGB(H)*272(V)
Pixel Pitch 0.198(H)*0.198(V)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,262k colors, 4.3 inch tft lcd
Surface treatment Antiglare, Hard-Coating(3H), AF,AR coating
Weight(g) 50(Typ.)
Module brightness(cd/m2) 500(Typ.)
Backlight LED Side-light type,
10 pcs. white led(20MA/chip, recomendation)
Power Consumption(w) Logic system 0.09Max.
B/L system 0.924Max.



Customized CTP for 4.3inch TFT:


We can design and customize Capacitive touch panel for you with different size, shape and Logo. Welcome to contact us for details. We would like to help you develop your project.



Custom CTP

1.up to 10 touch points

2. CTP Bonding : OCA bonding or 3M double side tape

3.  AR(anti-reflective),AG(anti-glare),AF(anti-fingerprint)Coating available

4. …



Custom Process:

Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks




4.3'' tft lcd with touch panel
