TSD STN 128x64 LCD COB monchrome LCD 5V

  • Model Name: TSM12864-7
  • LCD Type: 128*64 dots lcd
  • Resolution: 128*64
  • Viewing angle: 12H
  • Driver IC: S6B0107
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



The TSM12864-7 is a 128*64 dots dot-matrix LCD module. It has a STN panel composed of 128 segments and 64 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.



Specification
LCD type  STN display
Display type monochrome LCD
Viewing angle 12H
Outline Dimension(mm)

78*70*13.5
Active Area.(mm)
56*38.35
Resolution(dots) 128*64
Operating Voltage 5V
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Display mode Blue
Driver IC
S6B0107

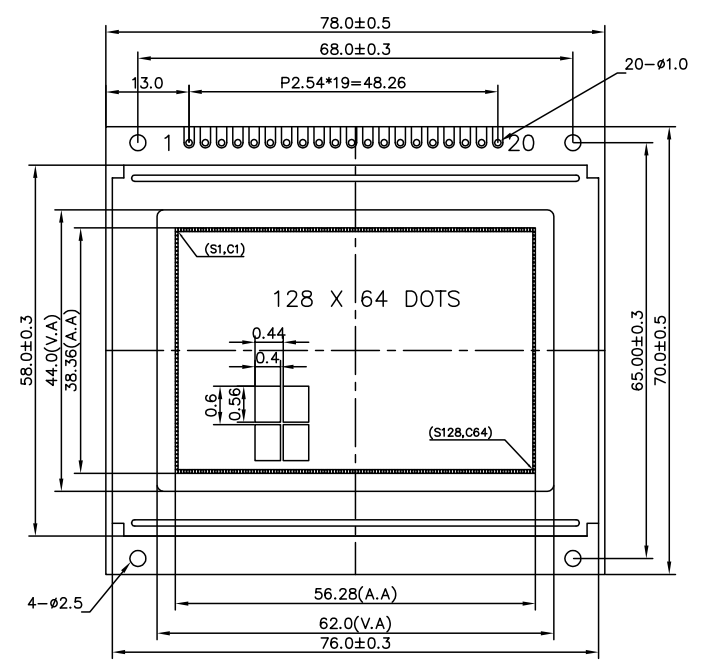

Drawing:

Interface Description:

PIN SYMBOL
1 CSA
2 CSB
3 VSS
4 VDD
5 V0
6 RS
7 RW
8 E
9 DB0
10 DB1
11 DB2
12 DB3
13 DB4
14 DB5
15 DB6
16 DB7
17 RST
18 VOUT
19 A
20 K



Applications:

For our TSM12864-7 dots Graphic lcd , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1. TSM12864-7 dots lcd with 20pins

2. 5v working Voltage

3.S6B0107 IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
