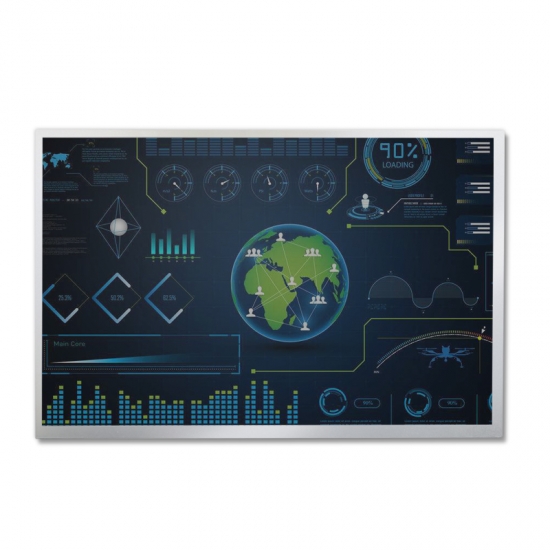

1024x768 resolution 12.1" tft lcd display with LVDS interface

1024x768 resolution 12.1" tft lcd display with LVDS interface



1024x768 resolution 12.1" tft lcd display with LVDS interface





Specification
LCD type 12.1" tft lcd display
Display type 12.1 inch TFT, 16.7M color, normally white
Driver element color active matrix thin film transistor
Viewing angle 9H
Outline Dimension(mm) 260.50x204.00x8.40
Active Area.(mm) 245.76x184.32
Resolution(dots) 1024xRGBx768
Operating Voltage 3.3V
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement  RGB Vertical Stripe
Display mode Normally white
Luminance(cd/m2) 600(typ.)
Contrast Ratio 700(typ.)
Application Notebook, advertisement display, etc.
Model Number TST121XA01DW
Interface  LVDS
Module lifetime(Hours) 50,000-100,000
