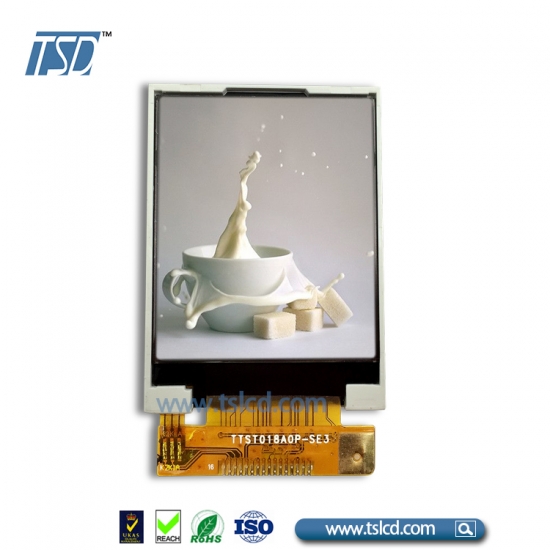

128x160 resolution 1.77" color TFT lcd MCU display with ZIF connection

Inquiry now Data sheet

128x160 resolution 1.77" color TFT lcd MCU display with ZIF connection

Specification
LCD type	TFT,Transmissive
Display type	1.8 inch TFT, 262k color, normal white
Description	1.77" tft lcd module with SPI interface
Driver element	a-si TFT Active matrix
Outline Dimension(mm)	46.7x34.7x2.5
A.A.(mm)	35.04x28.03
Driver IC	ST7735S
Resolution(dots)_	128RGB160
Viewing Direction	6H
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Logic Volatge	3.0v
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Surface treatment	Antiglare, Hard-Coating(3H)
Weight(g)	TBD
Backlight	2 LEDs, White
Weight(g)	TBD
Interface connector	MCU interface
Module lifetime(Hours)	50,000-100,000

Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 128x160 resolution 1.77" color TFT lcd MCU display with ZIF connection
