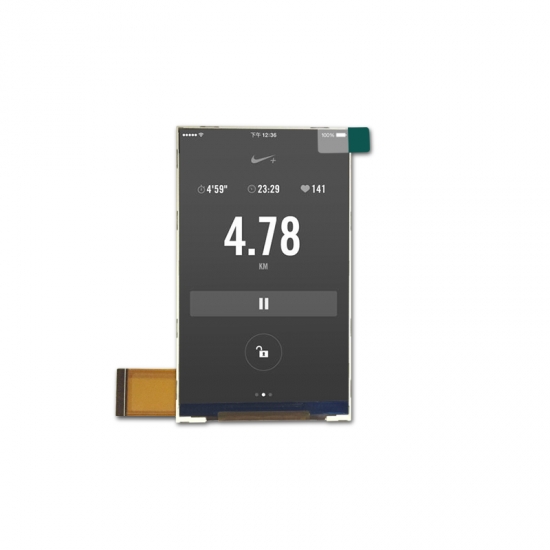

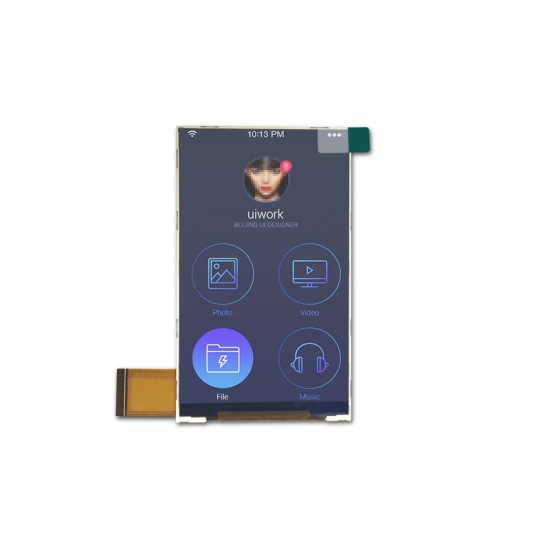

3.97 inch 480x800 resolution TFT LCD display with RGB interface

Inquiry now Data sheet

3.97 inch 480x800 resolution TFT LCD display with RGB interface

Specification
Part No.	TST3972532
Outline Dimension(mm)	57.143mm x96.853mm x2.0mm
Active Area(mm)	51.84mmx86.4mm
Resolution(dots)	480RGB800
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	480RGB(H)xRGBx800(V)
Touch panel	without
Driver IC	ILI9806E
Pixel arrangement	RGB Vertical stripe
Display mode	Normal white, 3.97 inch TFT
Surface treatment	Antiglare
View direction	12H
Weight(g)	TBD
Power Consumption(w)	Panel	0.226(Typ.)
	B/L system	1.674(Typ.)
Interface	RGB
Module lifetime(Hours)	50,000-100,000
