640x320 resolution 6.2 inch tft lcd panel with wide viewing direction

Specification
Part No.	TST062CCGS-W01

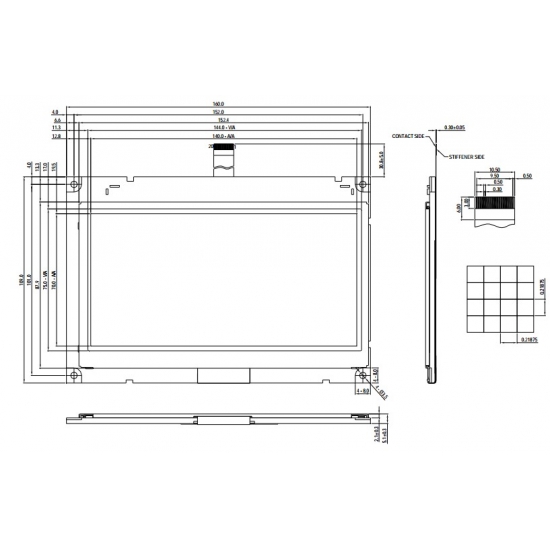

Outline Dimension(mm)	160.0 (w) x 109.0 (h) x 4.6 (t) mm
Active Area(mm)	140.0 (w) x 70.0 (h) mm
Resolution(dots)	640RGB320
Operating temperature(°C)	-20-60
Storage temperature(°C)	-30-70
Number of Pixel(pixels)	640RGB(H)xRGBx320(V)
Touch panel	without
Dot Pitch	0.21875 (w) x 0.21875 (h) mm
Pixel arrangement	Mono stripe
Display mode	Normal black VA
Display method	TFT active matrix
View direction	wide viewing
Weight(g)	TBD
Power Consumption(w)	Panel	0.226(Typ.)
	B/L system	1.674(Typ.)
Interface	LCD controller / driver – Parallel 6800 / 8080, 4-line serial, 3-line serial
Module lifetime(Hours)	20,000-50,000
