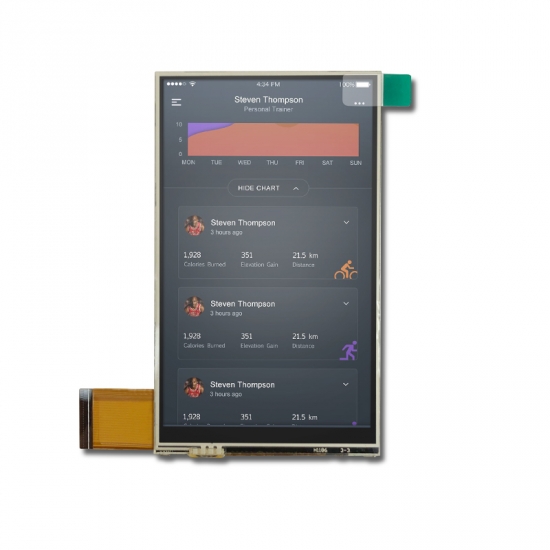

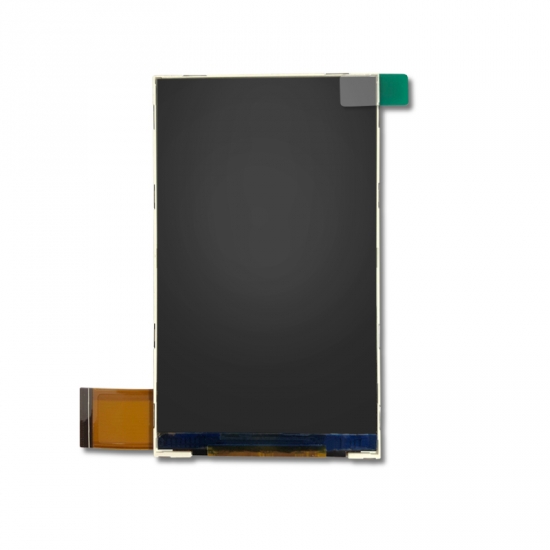

New and stable 3.97 inch 480x800 resolution IPS color display with MIPI interface

Inquiry now Data sheet

New and stable 3.97 inch 480x800 resolution IPS color display with MIPI interface

Specification
Part No.	TST040WVHS-16
Outline Dimension(mm)	57.143mm x96.853mm x2.0mm
Active Area(mm)	51.84mmx86.4mm
Resolution(dots)	480RGB800
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	480RGB(H)xRGBx800(V)
Touch panel	without
Driver IC	ILI9806E
Pixel arrangement	RGB Vertical stripe
Display mode	Normal black,IPS, 3.97 inch TFT
Surface treatment	Antiglare
View direction	ALL
Weight(g)	TBD
Power Consumption(w)	Panel	0.226(Typ.)
	B/L system	1.674(Typ.)
Interface	RGB
Module lifetime(Hours)	50,000-100,000
