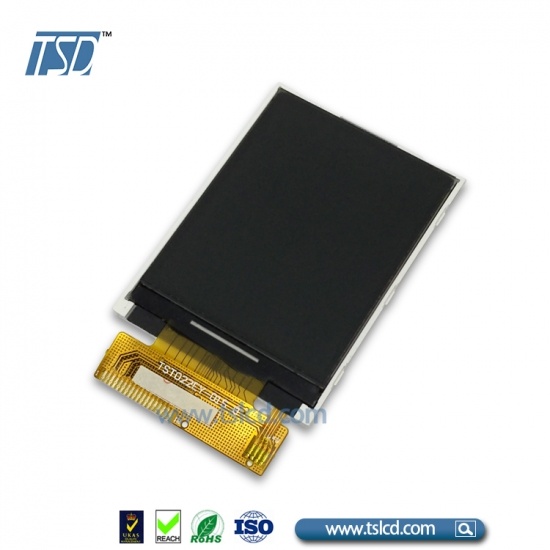

176x220 resolution 2.2 inch lcd display 6 o'clock viewing with SPI interface

176x220 resolution 2.2 inch lcd display 6 o'clock viewing with SPI interface



Specification
LCD type TFT, Transmissive, TFT color LCD
Display type 2.2" TFT, 262k color, normal white
Description tft 2.2 inch spi
Driver element a-si TFT Active matrix
Outline Dimension(mm) 40.54x56.45x2.85
A.A.(mm) 33.84×45.12
Driver IC ILI9341
Resolution(dots) 176x220 resolution
Viewing Direction 6H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Weight(g) TBD
Backlight 3 LED, White
Weight(g) TBD
Interface SPI
Module lifetime(Hours) 50,000-100,000
