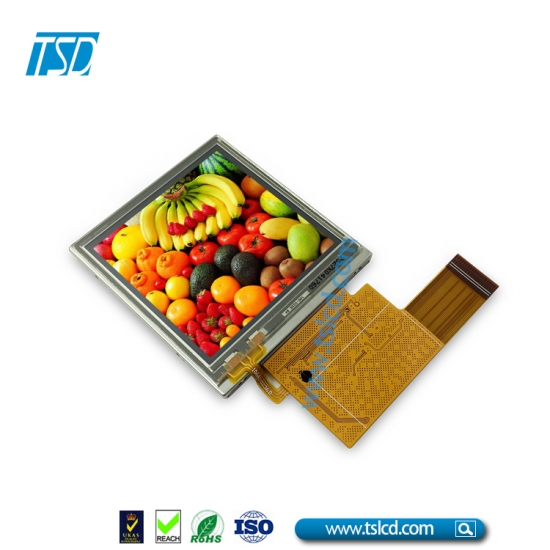

2.2 inch transflective lcd display 176x220 resolution with MPU or RGB interface

Inquiry now Data sheet

Specification
LCD type	TFT, Transflective, TFT color LCD
Display type	2.2" TFT, 262k color, normal white
Description	tft 2.2 inch spi
Driver element	a-si TFT Active matrix
Outline Dimension(mm)	40.40×56.48×2.22
A.A.(mm)	33.84×45.12
Driver IC	HX8347-I
Resolution(dots)	176x220 resolution
Viewing Direction	12H
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Weight(g)	TBD
Backlight	3 LED, White
Weight(g)	TBD
Interface	MPU/RGB
Module lifetime(Hours)	50,000-100,000
