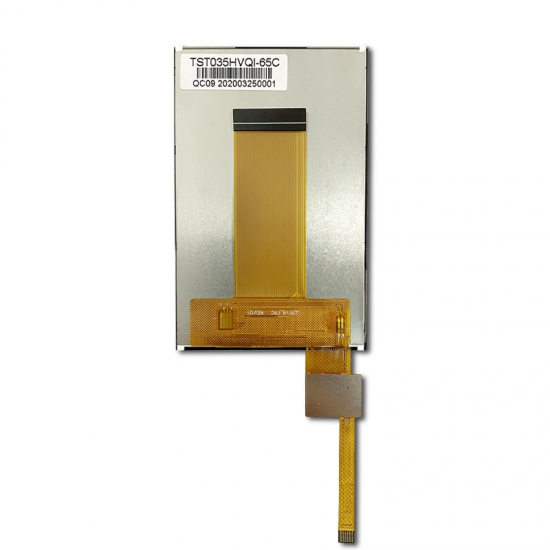

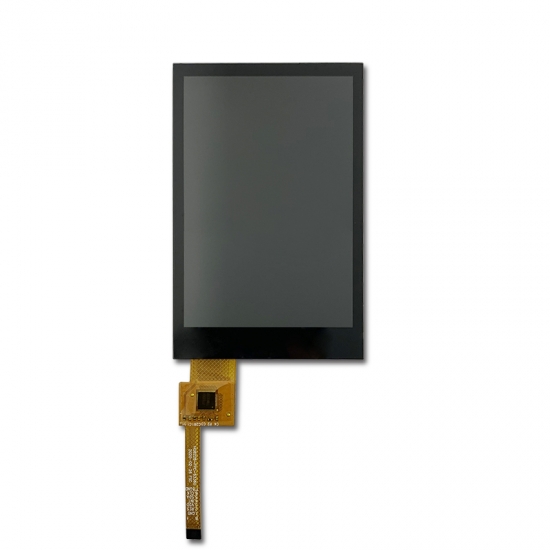

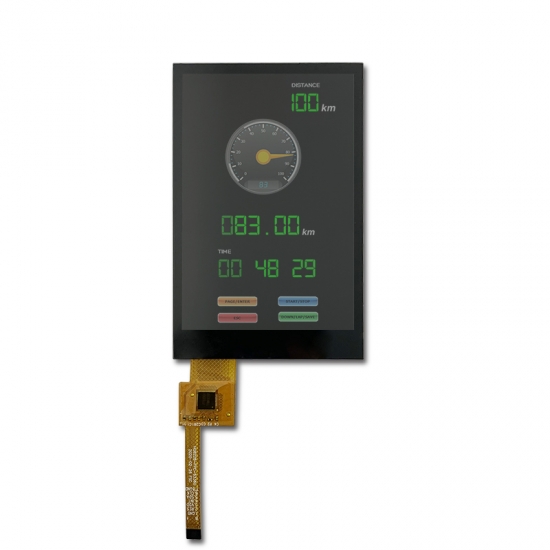

320x480 resolution 3.5 inch ips TFT LCD display with P-cap touch screen

320x480 resolution 3.5 inch ips TFT LCD display with P-cap touch screen

Inquiry now Data sheet

Main parameters

Item

3.5 inch IPS TFT LCD display

Model name

TST035HVQI-65C

Display Mode

Normally Black,Transmissive

Resolution

320*480

Technology Type

a-Si TFT active matrix

Driver IC

ILI9488

Pixel Configuration

R.G.B. Vertical Stripe

Outline Dimension

53.76(W)*84.18(H)*3.30(T)(Exclude FPC)

Active Area(mm)

48.96mm*73.44mm

Interface

18 bits RGB

Viewing Direction

ALL O'clock

Surface Luminance

350 nits

Backlight Type

6 LED white color

Operating Temperature

-20~70°C

Storage Temperature

-30~+80°C
