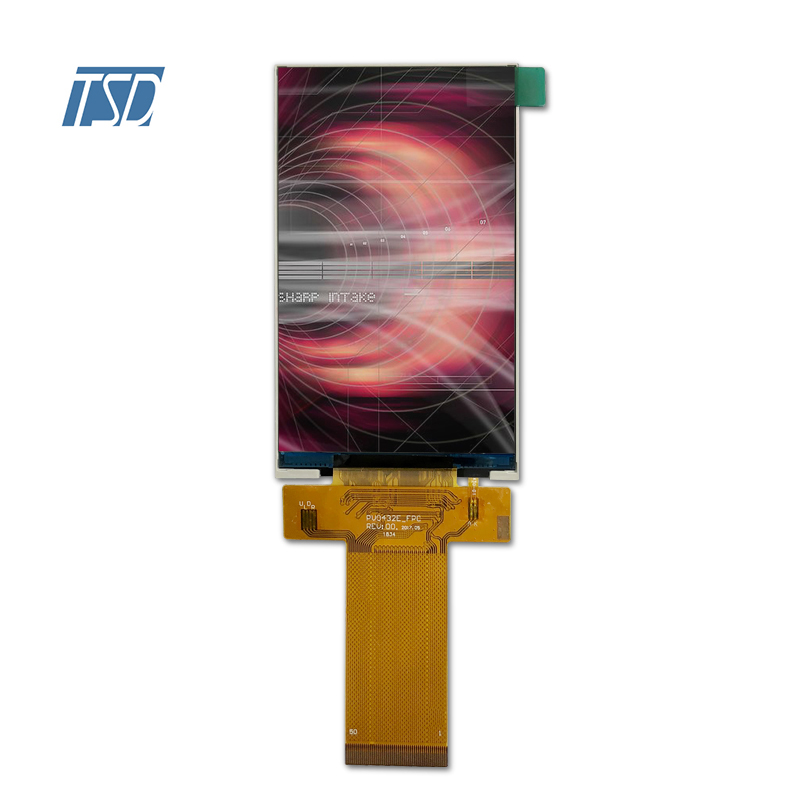

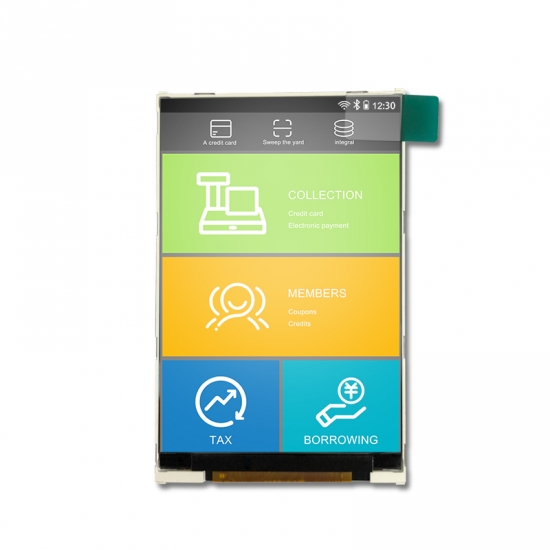

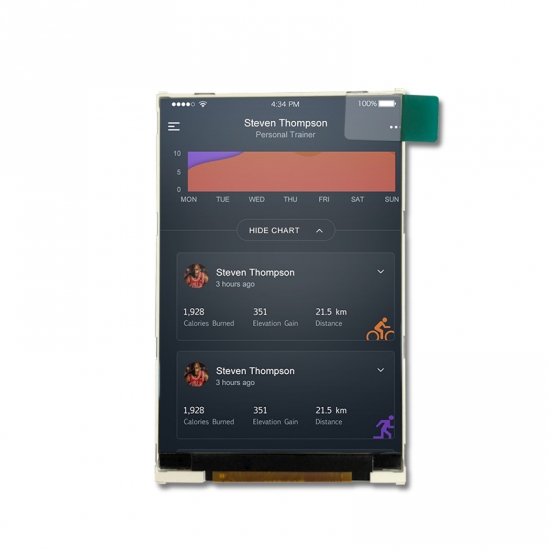

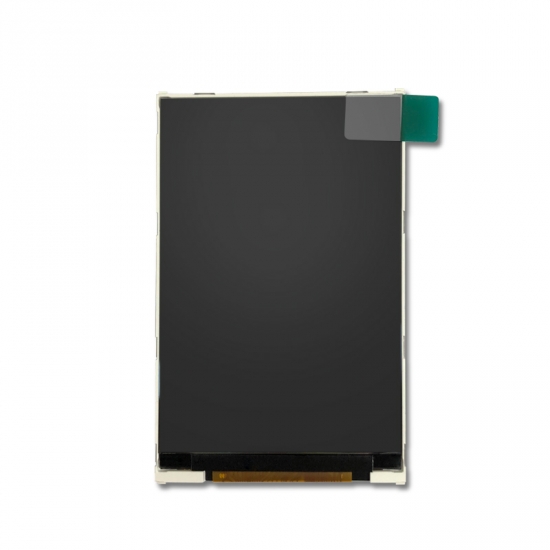

Description:
TST035HVQI-45P is 3.5 inch 320x480 resolution MCU 16 bits interface LCD display module, it is vertical display with standard resistive touch panel. Backlight is 250 nits, White LEDs is 6, backlight current is 120mA and backlight voltage is 3.2V, which could be customized. For this 3.5 inch TFT LCD module, driver IC is ILI9488, viewing direction is free, all o'clock, color depth is 65K, white backlight and transmissive mode.

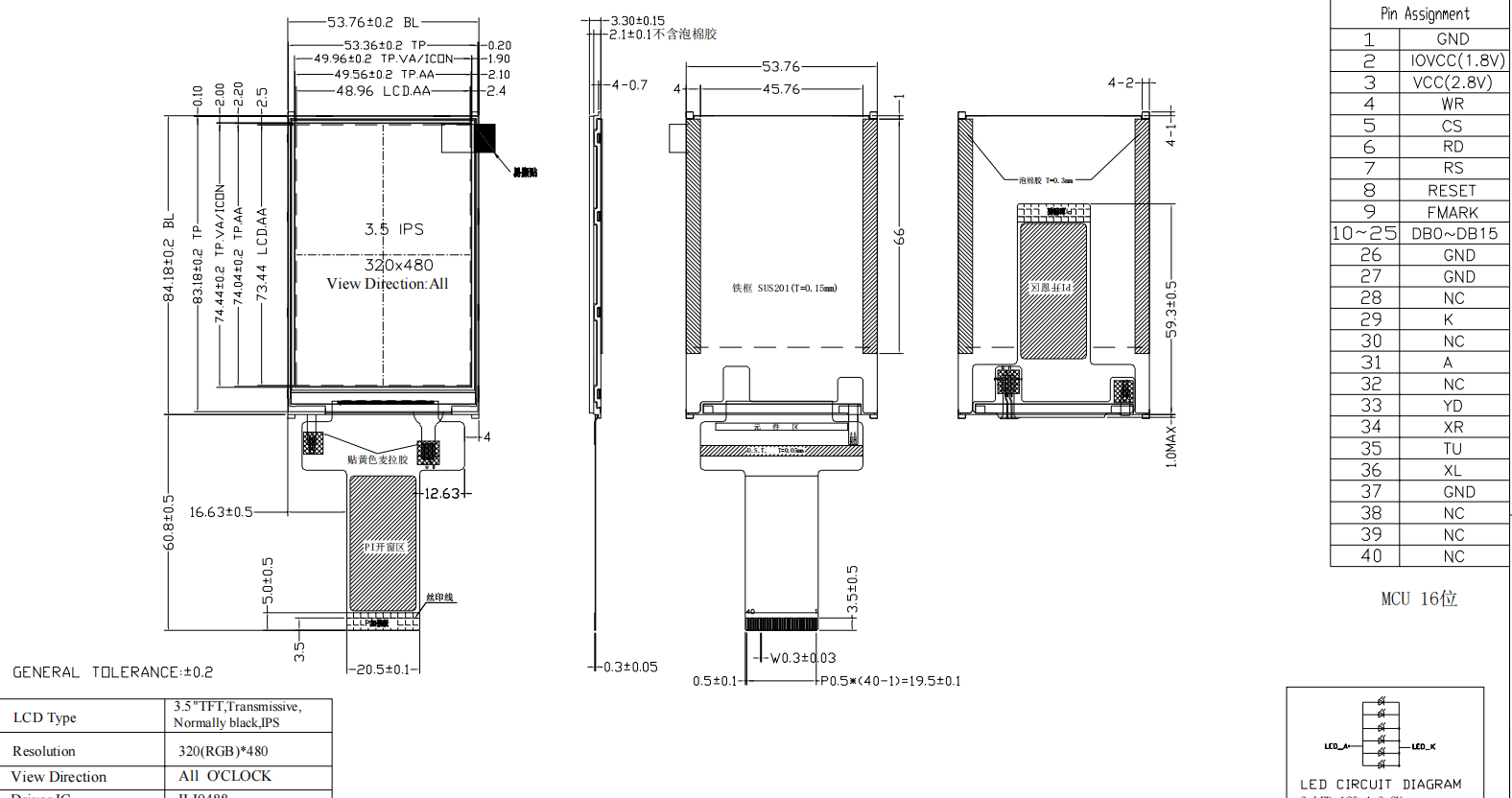

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST035HVQI-45P | |
| Outline Dimension(mm) | 53.76x84.18x3.3 | |
| Active Area(mm) | 48.96x73.44 | |
| Resolution(dots) | 320x480 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 320(H)xRGBx480(V) | |
| Touch panel | with RTP | |
| Driver IC | ILI9488 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 3.5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MCU 16 bits |
|
| Module lifetime(Hours) | 30,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | GND | System Ground. (0V) |
| 2 | IOVCC(1.8V) | Power supply |
| 3 | VCC(2.8V) | Power supply |
| 4 | WR | serves as a write signal |
| 5 | CS | Chip select input signal |
| 6 | RD | serves as a read signal |
| 7 | RS | Register select input signal |
| 8 | RESET | Chip reset pin(LowActive) |
| 9 | FMARK | Tearing effect signal |
| 10-25 | DB0-DB15 | Databus |
| 26-27 | GND | System Ground.(0V) |
| 28 | NC | No connect |
| 29 | LEDK | Backlight Cathode input pin. |
| 30 | NC | No connect |
| 31 | LEDA | Backlight anode input pin. |
| 32 | NC | No connect |
| 33 | YD | The touch pin Y down pin |
| 34 | XR | The touch pin X right pin |
| 35 | YU | The touch pin Y up pin |
| 36 | XL | The touch pin X left pin |
| 37 | GND | System Ground.(0V) |
| 38-40 | NC | No connect |
Applications:
For our 3.5 inch 320x480 LCD display TST035HVQI-45P, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.5" contains 320x480 dots and can display up to 65K colors.
