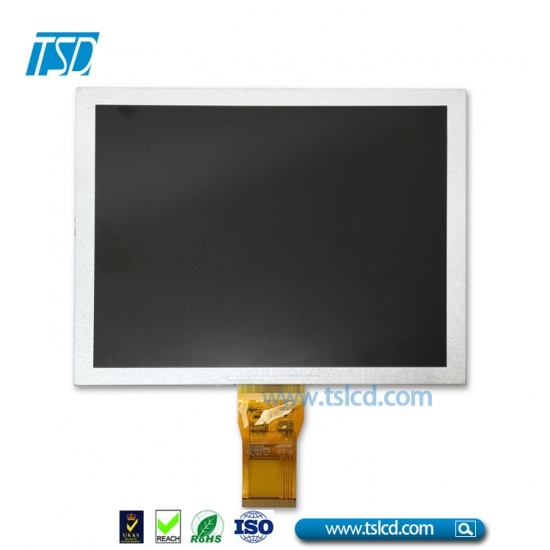

8 inch 800*600 resolution tft lcd display with RGB interface

8 inch 800*600 resolution tft lcd display with RGB interface



8 inch 800*600 resolution tft lcd display with RGB interface



Specification
Part No. TST080SVBH-15B, 8 inch lcd panel
Outline Dimension(mm) 183.00x141.00x3.5
Display Area(mm) 162.00x121.50
Resolution(dots) 800*RGB*600
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx600(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,Transmissive, 8 inch TFT
Surface treatment Antiglare
View direction  12H
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface RGB
Module lifetime(Hours) 50,000-100,000
Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
