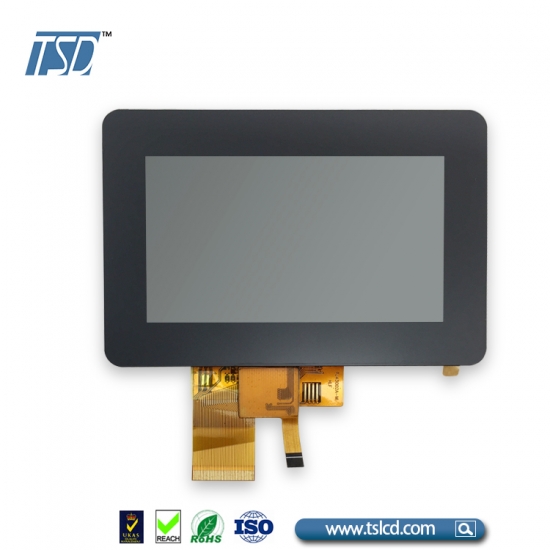

Cheap 480×272 resolution 4.3 inch TFT LCD touch screen with CTP
  • Item No. :

    TST043WQBS-35C
  • LCD Type :

    TFT,Transmissive,Normally white,TN
  • Payment :

    T/T
  • MOQ :

    1000
  • Lead Time :

    3~4 weeks
  • Package Details :

    Shenzhen/Hongkong
inquire now
  • Specifications
  • dimention
  • effect

Cheap 480×272 resolution 4.3 inch TFT LCD touch screen with CTP


Specification

Part No.

TST043WQBS-35C

Outline Dimension(mm)

105.5x67.2x3.0(Typ.)

Display Area(mm)

95.04(H)x53.41(V)

Driver IC

ST7282

Resolution(dots)

WQVGA, 480*RGB*272

Description

4.3" 280 nits brightness lcd display panel

Operating temperature(°C)

-20~70

Storage temperature(°C)

-30~80

Number of Pixel(pixels)

480RGB(H)*272(V)

Pixel Pitch

0.198(H)*0.198(V)

Pixel arrangement

RGB Vertical stripe

Display mode

Normal white,262k colors, 4.3 inch tft lcd

Surface treatment

Antiglare, Hard-Coating(3H)

Touch screen

with CTP

Module brightness(cd/m2)

280(Typ.)

Backlight

LED Side-light type,

10 pcs. white led(20MA/chip, recomendation)

Power Consumption(w)

Logic system

0.09Max.

B/L system

0.924Max.

4.3" LCD TFT with RTP

Light up effect under Extral wide viewing angle Polarize >80 degree angle

Light up effect with 1000 nit brightness,would be used under the sunlight

Light up effect with ofilm Polarize added

Light up effect with Anti-reflection film
