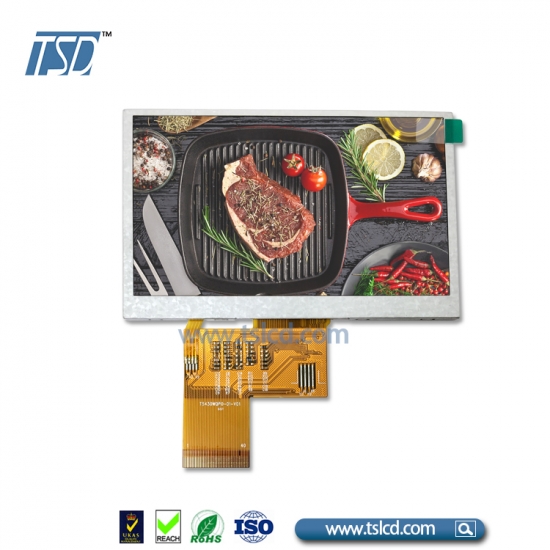

Wholesale cheap 500 nits 480×272 resolution 4.3 inch lcd display panel

Wholesale cheap 500 nits 480×272 resolution 4.3 inch lcd display panel

Wholesale cheap 500 nits 480×272 resolution 4.3 inch lcd display panel


Specification

Part No.

TST043WQIS-87

Outline Dimension(mm)

105.5x67.2x3.0(Typ.)

Display Area(mm)

95.04(H)x53.41(V)

Driver IC

ST7282

Resolution(dots)

WQVGA, 480*RGB*272

Description

4.3" 500 nits brightness lcd display panel

Operating temperature(°C)

-0~60

Storage temperature(°C)

-10~60

Number of Pixel(pixels)

480RGB(H)*272(V)

Pixel Pitch

0.198(H)*0.198(V)

Pixel arrangement

RGB Vertical stripe

Display mode

Normal white,262k colors, 4.3 inch tft lcd

Surface treatment

Antiglare, Hard-Coating(3H)

Weight(g)

50(Typ.)

Module brightness(cd/m2)

500(Typ.)

Backlight

LED Side-light type,

10 pcs. white led(20MA/chip, recomendation)

Power Consumption(w)

Logic system

0.09Max.

B/L system

0.924Max.
