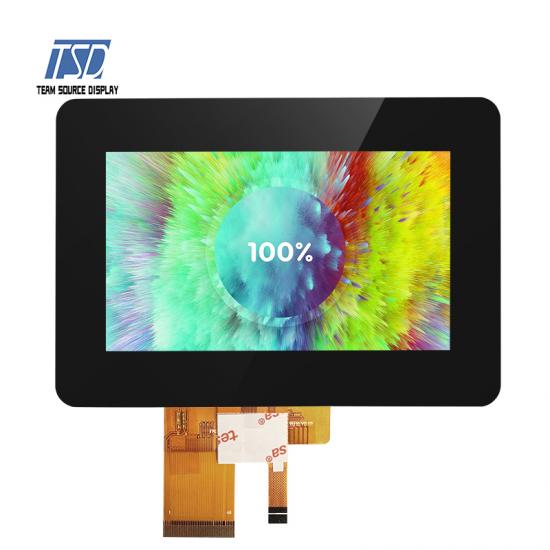

TSD 1000 nits Brightness 4.3 inch TFT LCD with touch panel

  • Model Name: TST043WQBS-146C
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 800 cd/m2
  • Driver IC: ST7283
  • Interface: RGB 24 bits
  • Touch Screen: with capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

TST043WQBS-146C is 4.3 inch 480x272 resolution RGB pins LCD display module in industrial grade, It could be used for HMI and access control. The brightness is 800 nits, White LEDs is 16, backlight current is 40mA and backlight voltage is 24V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ST7283, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

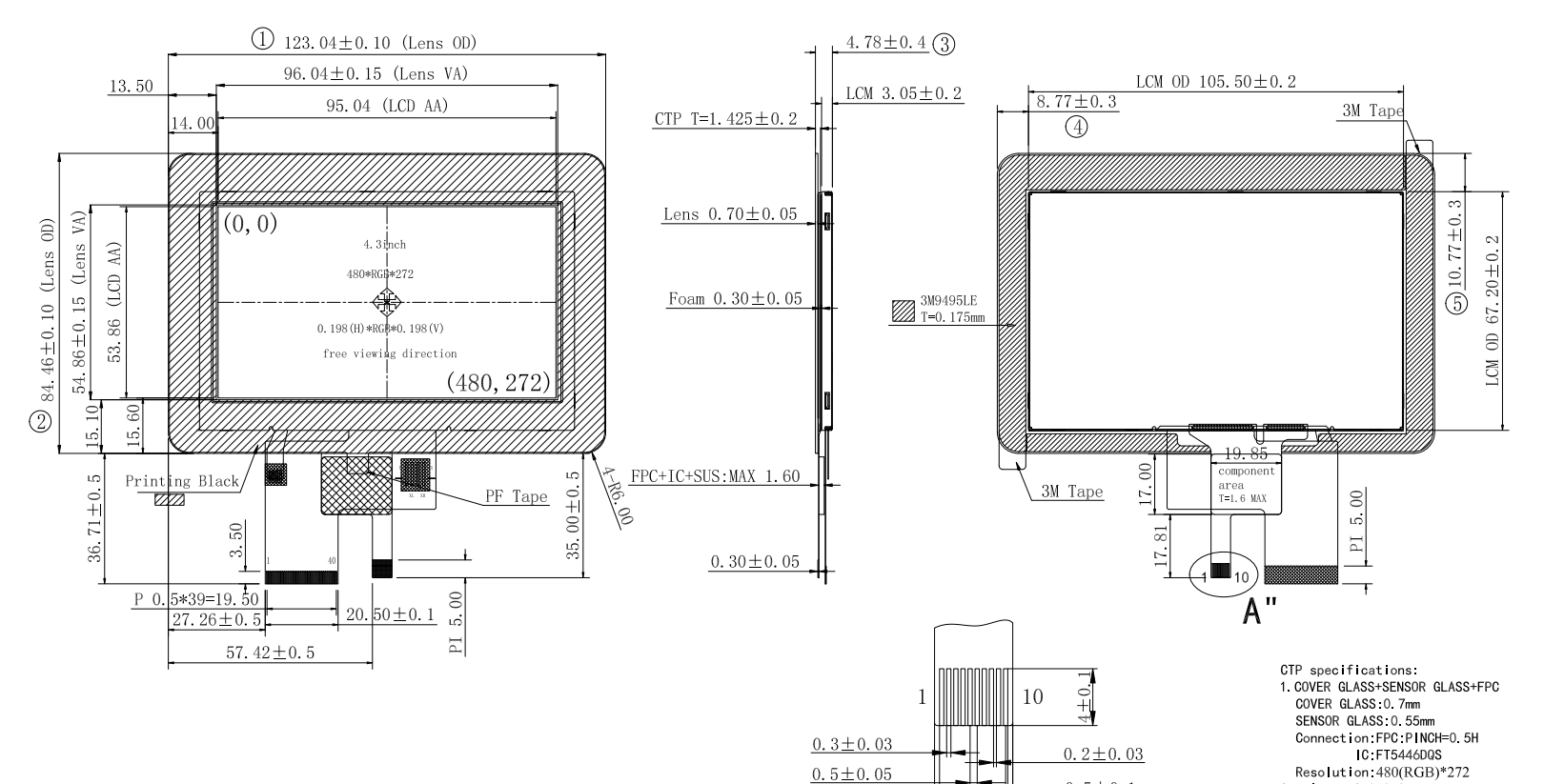

Drawing:




Specifications:



General Specification
Part No.  TST043WQBS-146C
Outline Dimension(mm)  123.04x84.46x4.78
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  without CTP
Driver IC ST7283
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB interface
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 LED- Cathod of LED backlight
2 LED+ Anode of LED backlight
3 GND Power ground
4 VDD Power voltage
5-12 R0-R7 Red data, R0=LSB, R7=MSB
13-20 G0-G7 Green data, G0=LSB, G7=MSB
21-28 B0-B7 Blue data, B0=LSB, B7=MSB
29 GND Power ground
30 DCLK Pixel clock
31 DISP Display on/off
32 HSYN Horizontal sync signal
33 VSYN Vertical sync signal
34 DE Data enable
35 NC No connect
36 GND Power ground
37-40 NC No connect




Applications:



For our 4.3 inch 480x272 TFT LCD display model TST043WQBS-146C, it is with touch panel and normally used in outdoor products.

4.3 inch lcd


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
