Description:

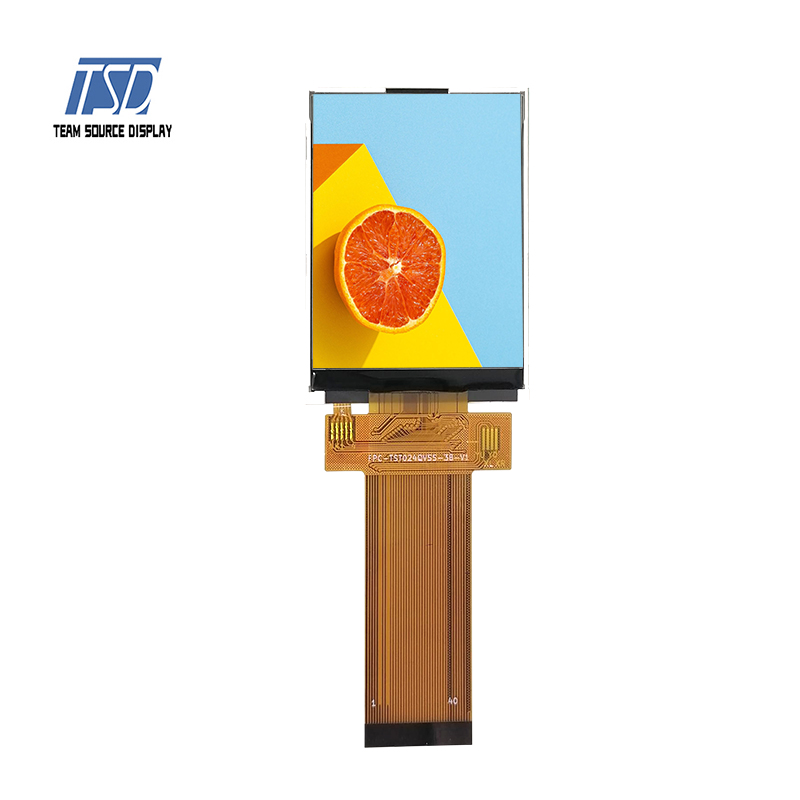

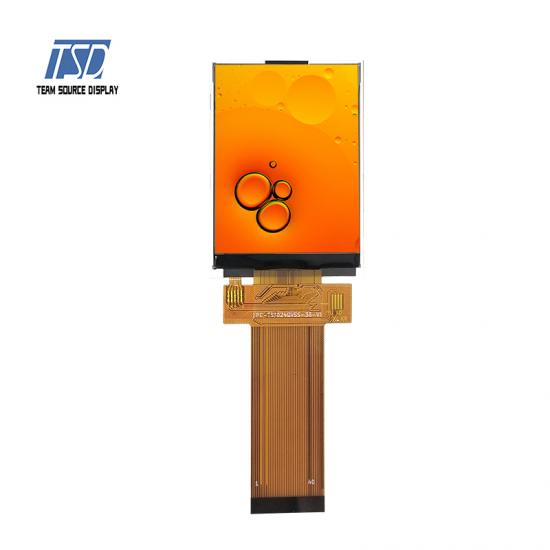

TST024QVSS-38 is 2.4 inch 240x320 pixel MCU interface LCD display module, could be customed with standard capacitive touch panel. The MCU could be 8 or 16 bits. Backlight is 1000 nits. It is very suitable for outdoor application such as EV charger, and gas dispenser. The backlight has 4 white LEDs, backlight current is 40mA and backlight voltage is 5.6-6.4V, which could be customized. This 2.4 inch TFT LCD module is designed with ST7789V, viewing direction is 6 o'clock, color depth is 262K, white backlight and transmissive type.

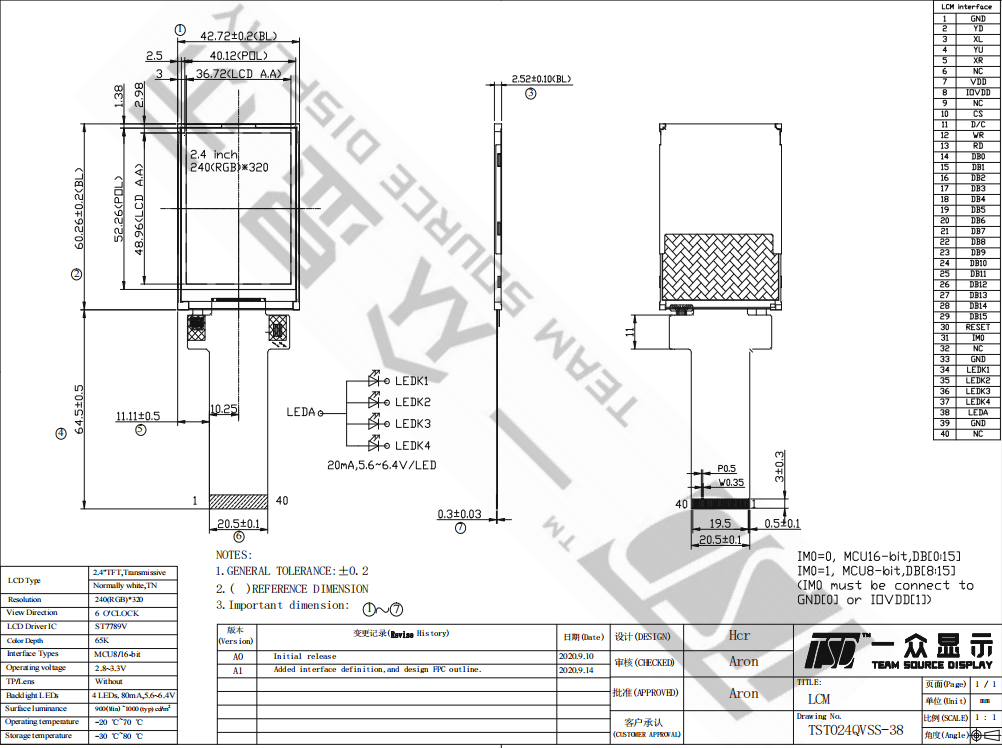

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST024QVSS-38 | |
| Outline Dimension(mm) |
42.72x60.26x2.52 |
|
| Active Area(mm) | 36.72x48.96 | |
| Resolution(dots) | 240x320 | |
| Operating temperature(°C) | -20 ~ +60°C | |
| Storage temperature(°C) | -30 ~ +70°C | |
| Number of Pixel(pixels) | 240(H)xRGBx320(V) | |
| Touch panel | w/o CTP | |
| Driver IC | ST7789V | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white, TN, 2.4 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MCU 8/16 bits |
|
| Module lifetime(Hours) | 20,000-30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | GND | System Ground. (0V) |
| 2-6 | NC | No connect |
| 7 | VDD | Power supply +2.8V |
| 8 | IOVDD | Power supply +1.8V |
| 9 | NC |
No connect |
| 10 | CS | Chip select signal. |
| 11 | D/C | Data/command selection pin |
| 12 | WR | Serves as a write signal |
| 13 | RD | Read signal |
| 14-29 | D0~D15 | Data bus |
| 30 | RESET | Reset input signal |
| 31 | IM0 |
IM0=0: MCU 16-bit, DB0-DB15 IM0=1: MCU 8-bit, DB8-DB15 |
| 32 | NC | No connect |
| 33 | GND | System Ground. (0V) |
| 34-37 | LED-K1~LED-K | Backlight K Cathode input pin. |
| 38 | LED-A | Backlight A Cathode input pin. |
| 39 | GND | System Ground. (0V) |
| 40 | NC | No connect |
Applications:
For our 2.4 inch LCD display TST024QVSS-38, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, we could also design touch panel to meet customer needs, to make it very intelligent life.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.4" contains 240x320 dots and can display up to 262k colors.
