Description:

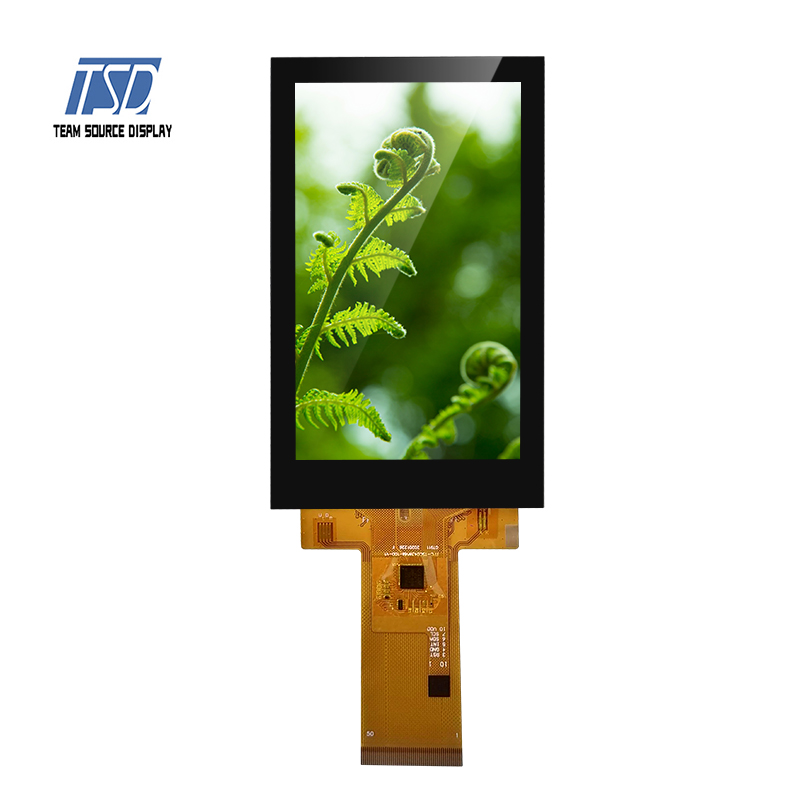

TST043WVBI-137C is 4.3 inch 480x800 resolution RGB 24 pins LCD display module in industrial grade, It is with capacitive touch panel, could be used for HMI and access control. The brightness is 360 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 15.6V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ILI9806E, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

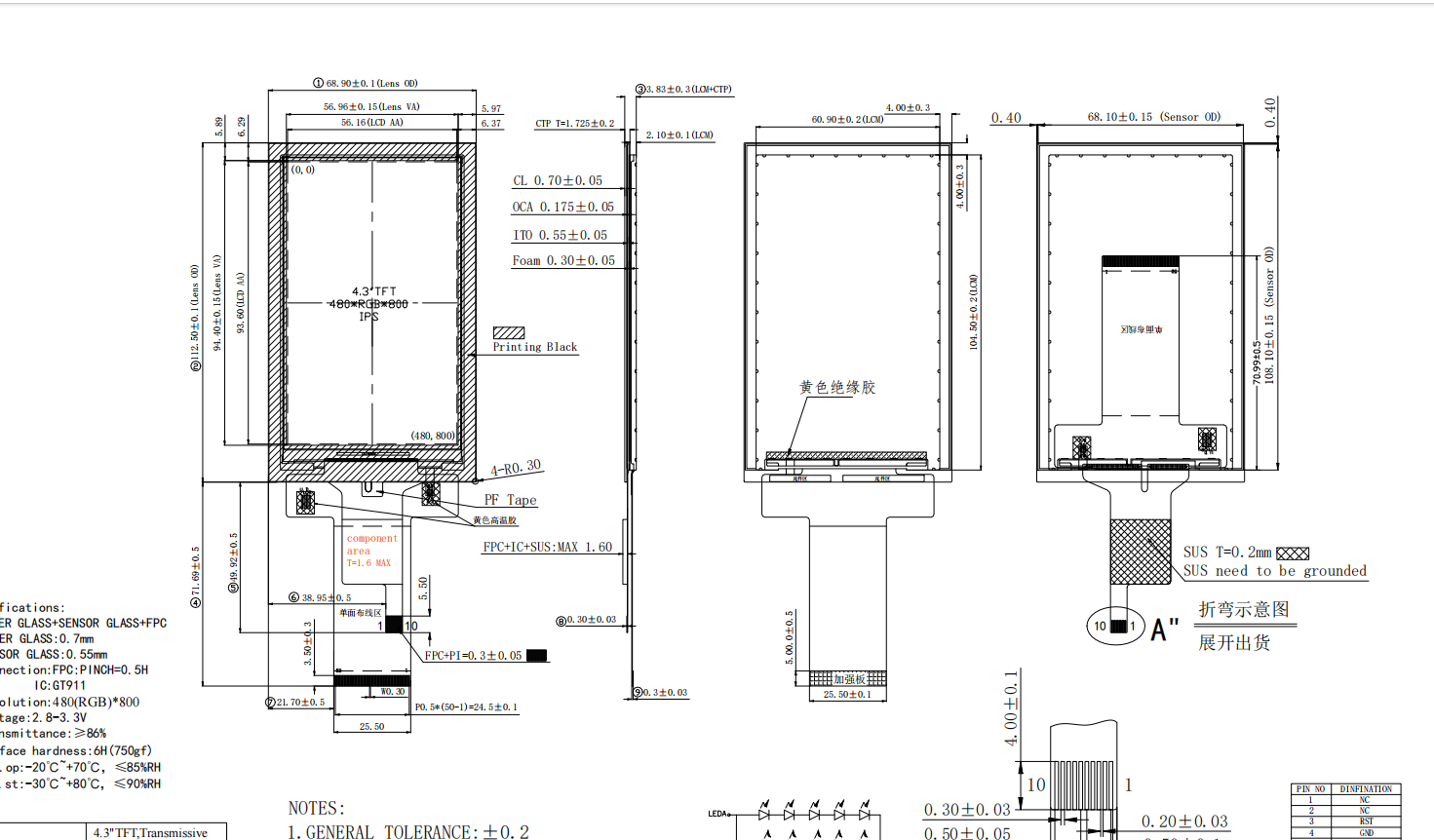

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WVBI-137C | |
| Outline Dimension(mm) | 68.9x112.5x3.83 | |
| Active Area(mm) | 56.16x93.6 | |
| Resolution(dots) | 480x800 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx800(V) | |
| Touch panel | with CTP | |
| Driver IC | ILI9806E | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB interface |
|
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LEDK | Cathod of LED backlight |
| 2 | LEDA | Anode of LED backlight |
| 3 | NC | No connection |
| 4-5 | GND | System ground |
| 6-7 | VCI | Power supply voltage, 2.6-3.3V |
| 8-11 | BS0-BS3 | BS[3:0]=0011b, 3-line 9 bit + 24-bit RGB |
| 12 | RST | Reset pin |
| 13-20 | R7-R0 | Red data |
| 21-28 | G7-G0 | Green data |
| 29-36 | B7-B0 | Blue data |
| 37 | RD | Fix to GND |
| 38 | WR | Fix to GND |
| 39 | SCL | Serial clock input |
| 40 | CS | Chip selection input |
| 41 | SDI | Serial data input/output pin. |
| 42 | SDO | open |
| 43 | VS | Vertical synchronizing signal. |
| 44 | HS | Horizontal synchronizing signal. |
| 45 | DE | Data ENABLE signal |
| 46 | CLK | Dot clock signal |
| 47-50 | NC | No connection |
Applications:
For our 4.3 inch 480x800 TFT LCD display model TST043WVBI-83, it is normally used in smart home and home appliance device.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x800 dots and can display up to 16.7M colors.
