Description:
ProLCD-T028P01 is 2.8 inch 240x320 resolution LCD display with Resistive touch panel, resolution is QVGA, coming out with 20 pins UART serial port. Outline dimension of LCD is 50x69.2mm, total thickness for the display+RTP+PCB is 4.76mm, general tolenrance is ±0.2mm. Standard brightness is 250 cd/m2, we could also make the higher brightness basing on customer's need. For the PCB type, it's bottom contact, pin pitch is 0.5mm.
The serial port screen mainly uses serial port communication to solve the problem of communication between the user operation interface program and the customer control panel to achieve the purpose of controlling the machine. The main function is to liberate users from the complex process of: complex interface software development + complex hardware solutions + hardware production cost control, and use the serial port screen solution provided by Team Source Display (TSD) is to achieve extremely fast, simple, efficient and high-efficiency as well as cost-effective solutions achieve the purpose of rapid product development, rapid product launch, and seizing market opportunities.

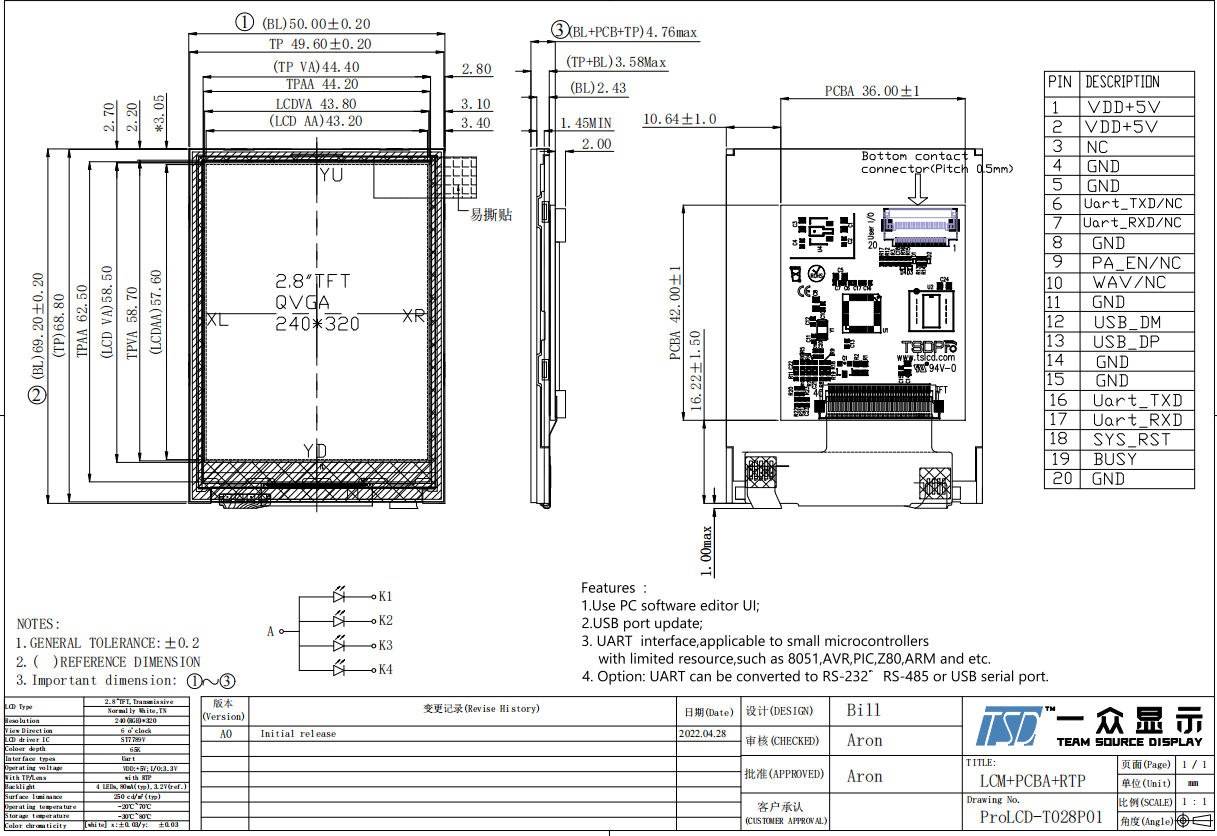

Drawing:
Specifications:
| General Specification | ||
| Part No. | ProLCD-T028P01 | |
| Outline Dimension(mm) |
50(W)x69.2(H)x4.76(D) |
|
| Active Area(mm) | 43.2(W) x 57.6(H) | |
| Resolution(dots) | 240x (RGB) × 320 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 240RGB(H)xRGBx320V) | |
| Touch panel | RTP | |
| Driver IC | ST7789V | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white,TN, 2.8 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | 6 o'clock |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | UART |
|
| Module lifetime(Hours) | 30,000-50,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | VDD | Power voltage 5V |
| 2 | VDD | Power voltage 5V |
| 3 | NC | No connect |
| 4 | GND | Power ground |
| 5 | GND | Power ground |
| 6 | UART_TXD/NC | Serial Communication Sends Data Output Pin. Do not Connect if you don't use it. |
| 7 | UART_RXD/NC | Serial Communication Receives Data Input Pin. Do not connect if you don't use it. |
| 8 | GND | Power ground |
| 9 | PA_EN/NC | Power Amplification Enable Pin. Do not connect if you don't use it. |
| 10 | WAV/NC | Audio Output Pin. Don not connect if you don't use it. |
| 11 | GND | Power Ground |
| 12 | USB_DM | This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data. |
| 13 | USB_DP | This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data. |
| 14 | GND | Power Ground |
| 15 | GND | Power Ground |
| 16 | UART_TXD | This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU |
| 17 | UART_RXD | This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal |
| 18 | SYS_RST | Global reset pin |
| 19 | BUSY | This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy |
| 20 | GND | Power Ground |
Applications:
For our 2.8 inch LCD display ProLCD-T028P01, it's widely using in smart home and white goods, like the smart thermostat, Temperature and humidity control panel. Customer only needs a low-end microprocessor (commonly known as single-chip microcomputer) and cooperates with the host computer software to easily design its own UI. TSD have the full ranges of standard design from 2.4 inch to 7 inch, touch or without touch solution are all available, and we could also make the customized design as per customer's needs.
Product Features:
1. Standard UART communication interface, baud rate 115200 bps;
2. USB2.0 interface update UI, fast and convenient;
3. PC-side host computer software, graphically designed UI, efficient and fast;
4. Support about 70 serial port commands, such as displaying pictures, progress bar, touch bar control, button control, text display, virtual touch, drawing graphics and other functions.

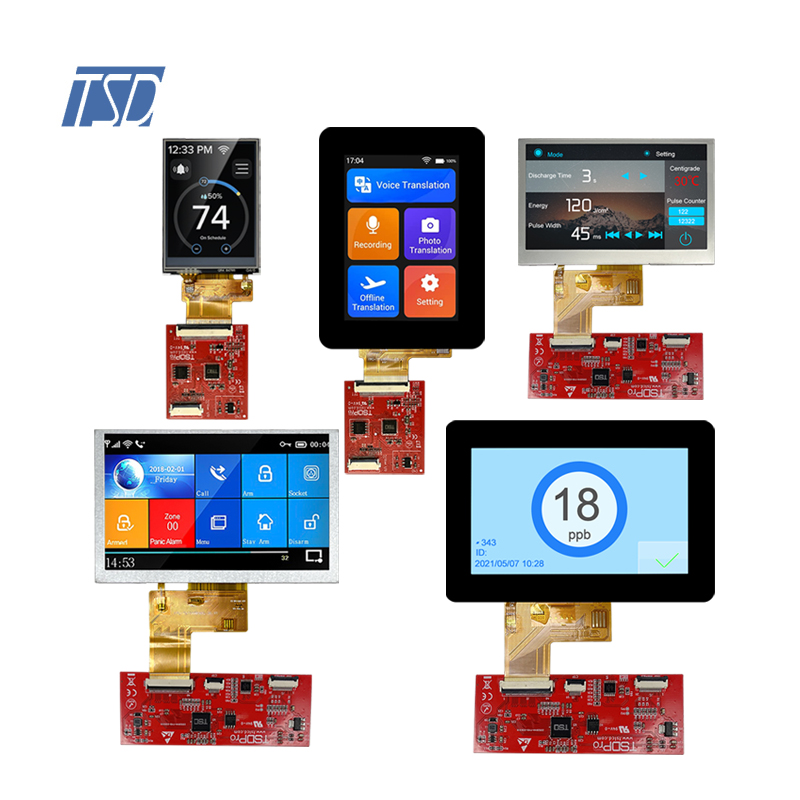

5. TSD have full ranges of UART display from 2.4 inch to 7 inch, customized design are warmly welcome.
