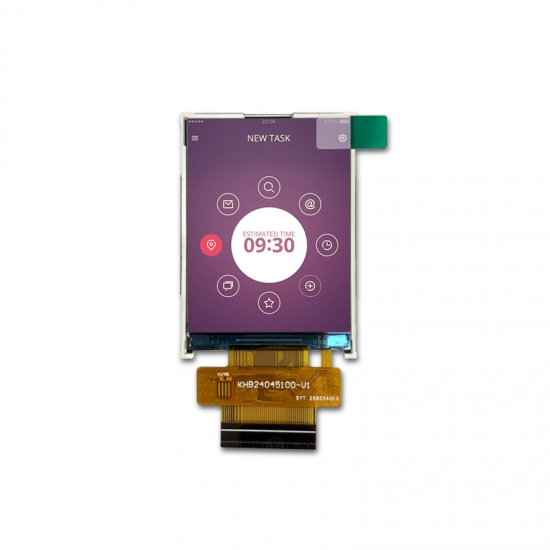

2.8 inch ILI9341 lcd display 240X320 resolution with RTP
  • Item No. :

  • LCD Type :

    TFT ,transmissive,nomal type
  • Payment :

    T/T in advance
  • MOQ :

inquire now Data sheet
  • Specifications
  • dimention
  • effect

Display type 262k color TFT,Transmissive
Description QVGA 240x320 2.8 tft lcd
Display Colors 16.7M Dithering
Outline Dimension(mm) 50x69.2x3.35
A.A.(mm) 43.2x67
Driver IC ILI9341
Resolution(dots)_ 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Dots Pitch 0.18x0.18
Color Configuration RGB stripe
Backlight 4 LEDs, White
Touch panel
Interface 8080 system 8/16 bits parallel interface
Module lifetime(Hours) 50,000-100,000
