Description:

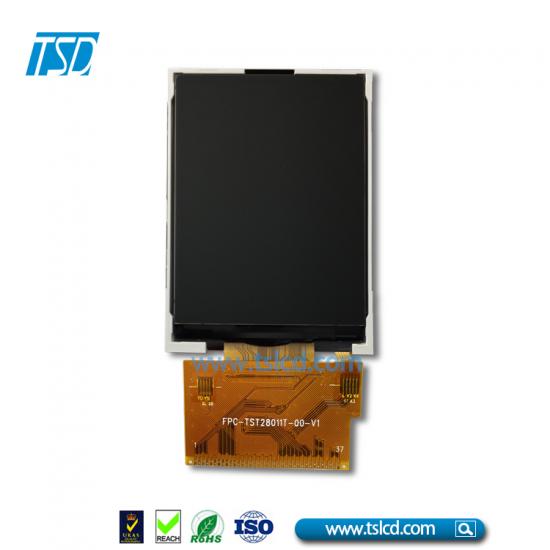

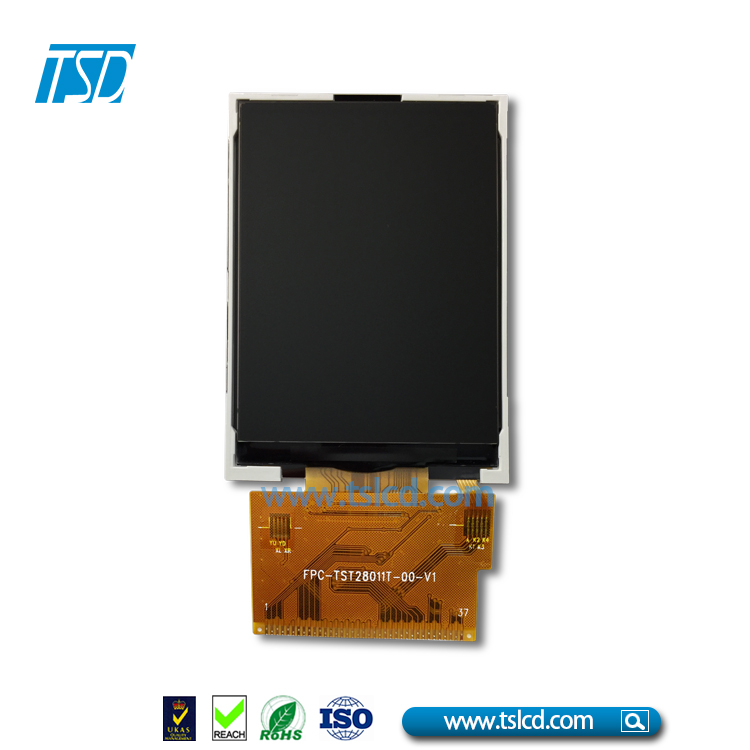

TST28011T-00 is a 2.8 inch TFT LCD with 240*320 resolution and we designed it MCU interface. A lot of our customers adopt this one for their project requirements such as smart phone, handheld devices. Here would share the features of this LCD for your better understanding: Driver IC is ILI9341V, Anti-Glare effect, using 2.8V input voltage, interface is MCU, Viewing direction is 12 o'clock. 2.8 inch LCD is frequently utilized in portable electronic devices and embedded systems.

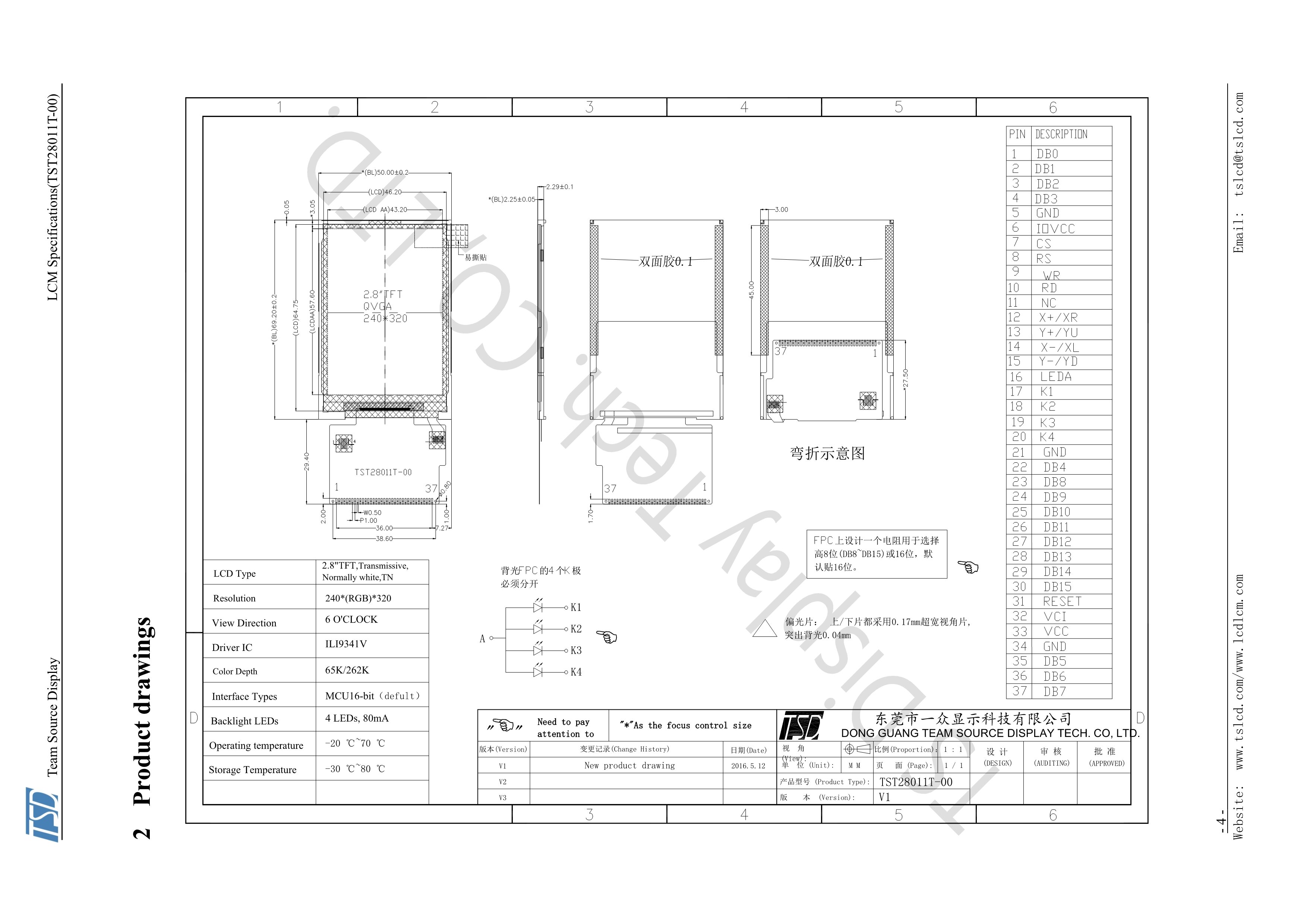

Drawing:
Specifications:
| General Specification | |
| Part No. | TST28011T-00 |
| Outline Dimension(mm) |
50.0W) x 69.2(H) x 2.25(D)
|
| Active Area(mm) |
43.2 (W) x 57.6 (H)
|
| Resolution(dots) |
240 x (RGB) × 320
|
| Operating temperature(°C) | -20 ~ +70°C |
| Storage temperature(°C) | -30 ~ +80°C |
| Number of Pixel(pixels) | 240 x (RGB) × 320 |
| Touch panel | Customizable |
| Driver IC |
ILI9341V
|
| Pixel arrangement |
RGB Vertical stripe
|
| Display mode |
Normally white,TN
|
| Surface treatment |
Anti-Glare
|
| View direction |
12 o’clock
|
| Weight(g) | TBD |
| Interface |
MCU 8/16-bit
|
| Module lifetime(Hours) | 50,000-100,000 |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1~4 |
DB0~DB3
|
Data BUS
|
| 5 | GND |
System Ground. (0V)
|
| 6 |
IOVCC
|
Power supply +2.8V or 1.8V
|
| 7 |
CS
|
Chip select signal.
|
| 8 | RS |
Data/Command Selection pin
|
| 9 | WR |
write signal
|
| 10 | RD |
read signal
|
| 11 | NC | |
| 12 |
X+/XR
|
NC
|
| 13 |
Y+/YU
|
NC
|
| 14 |
X-/XL
|
NC
|
| 15 |
Y-/YD
|
NC
|
| 16 |
LEDA
|
Backlight A Aothod input pin.
|
| 17~20 |
LEDK1~LEDK4
|
Backlight K Cathode input pin.
|
| 21 |
GND
|
System Ground. (0V)
|
| 22 |
DB4
|
Data BUS
|
| 23~30 |
DB8~DB15
|
Data BUS
|
| 31 |
RESET
|
Reset input signal
|
| 32 |
VCI
|
Power supply +2.8V
|
| 33 |
VCC
|
Power supply +2.8V or 1.8V
|
| 34 |
GND
|
System Ground. (0V)
|
| 35~37 |
DB5~DB7
|
Data BUS
|
|
|
||
Applications:
For our 2.8 inch LCD display TST28011T-00, displays an small size and high resolution, making it widely used in portable electronic devices and embedded systems. No matter it's in smartphones, embedded systems, measuring instruments, or navigation devices, TSD's 2.8 inch LCD support clear and high-quality image display, offering users a great visual experience and information presentation.
Product Features:
1. The 2.8 inch LCD finds extensive application in portable electronic devices such as smartphones to complete these devices expressing a user-friendly interface and image presentation;
2. This 2.8 inch LCD is commonly found in embedded systems. Embedded systems like computer systems embedded in various devices;
3. If you have other design requirements like touch panel, cover glass, you are warmly welcome.
