Description:

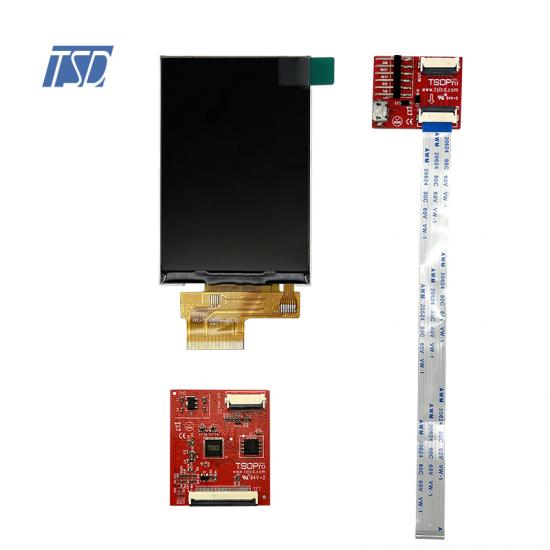

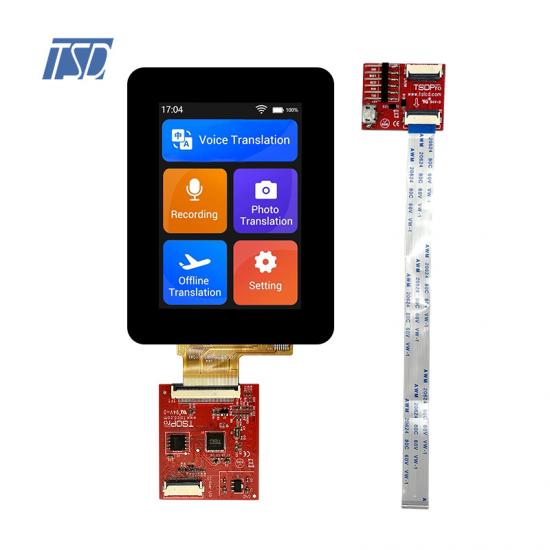

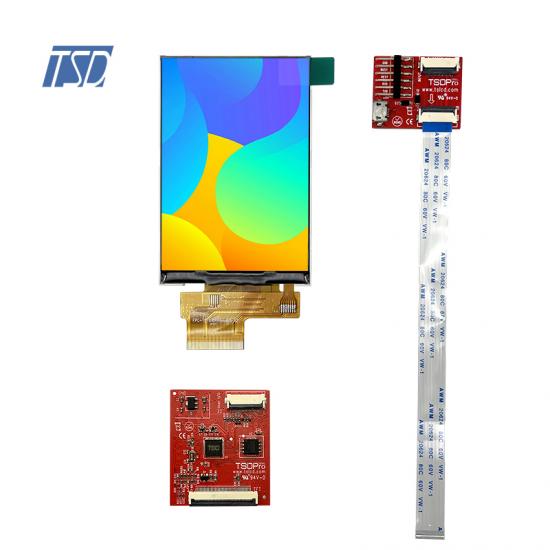

ProLCD-T035C01 is a transmission type color active matrix liquid crystal display (LCD), usingamorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 3.5-inch measurement on the diagonal, with an active resolution of 320xRGBx480. This 3.5 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.
UART (Universal Asynchronous Receiver and Transmitter) universal asynchronous receiver and transmitter (asynchronous serial communication port), is a general Data communication protocol, which includes interface standard specifications and bus standard specifications such as RS232, RS499, RS423, RS422 and RS485, that is, UART is the general name for asynchronous serial communication ports. TSD have the full ranges design for UART solutions, contact us freely to get more detail information.

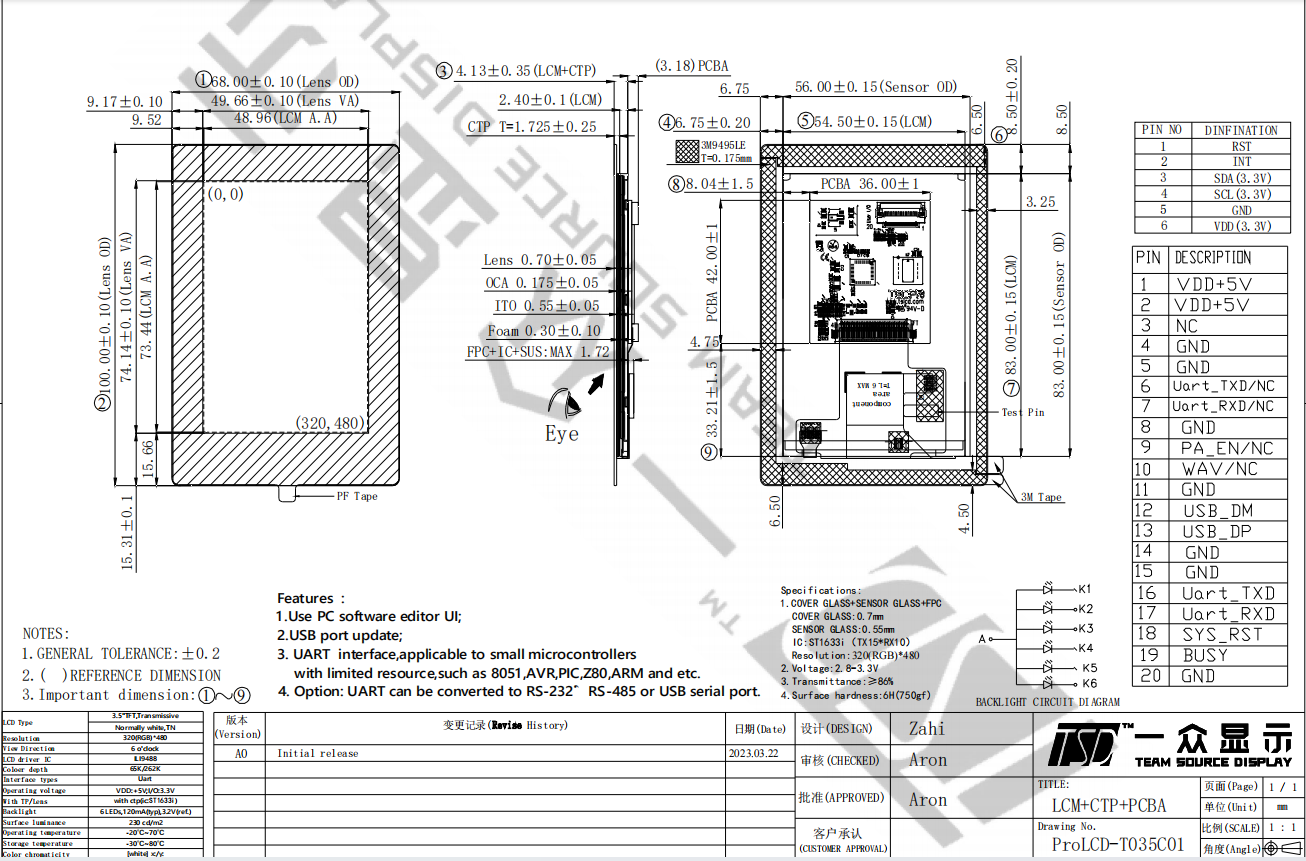

Drawing:
Specifications:
| General Specification | ||
| Part No. | ProLCD-T035C01 | |
| Outline Dimension(mm) |
68.0(W)x100.0(H)x4.13(D) |
|
| Active Area(mm) | 48.96W) x 73.44(H) | |
| Resolution(dots) | 320x (RGB) × 480 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 320RGB(H)xRGBx480V) | |
| Touch panel | CTP | |
| Driver IC | ILI9488 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white,TN, 3.5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | 6 o'clock |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | UART |
|
| Module lifetime(Hours) | 50,000-100,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | VDD | Power voltage 5V |
| 2 | VDD | Power voltage 5V |
| 3 | NC | No connect |
| 4 | GND | Power ground |
| 5 | GND | Power ground |
| 6 | UART_TXD/NC | Serial Communication Sends Data Output Pin. Do not Connect if you don't use it. |
| 7 | UART_RXD/NC | Serial Communication Receives Data Input Pin. Do not connect if you don't use it. |
| 8 | GND | Power ground |
| 9 | PA_EN/NC | Power Amplification Enable Pin. Do not connect if you don't use it. |
| 10 | WAV/NC | Audio Output Pin. Don not connect if you don't use it. |
| 11 | GND | Power Ground |
| 12 | USB_DM | This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data. |
| 13 | USB_DP | This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data. |
| 14 | GND | Power Ground |
| 15 | GND | Power Ground |
| 16 | UART_TXD | This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU |
| 17 | UART_RXD | This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal |
| 18 | SYS_RST | Global reset pin |
| 19 | BUSY | This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy |
| 20 | GND | Power Ground |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
Security Products: elevator controller, electronic indicator.
