Description:

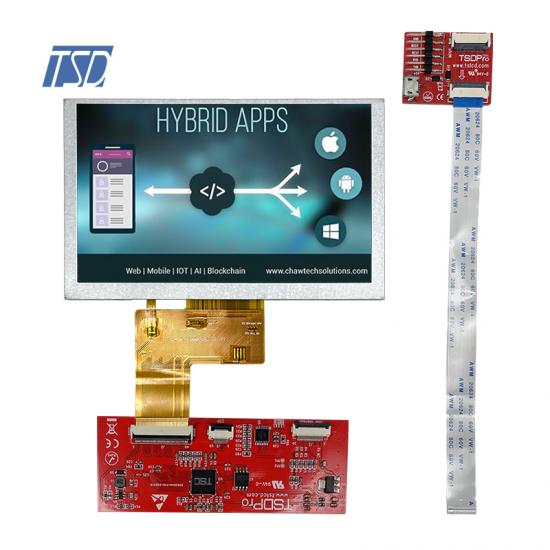

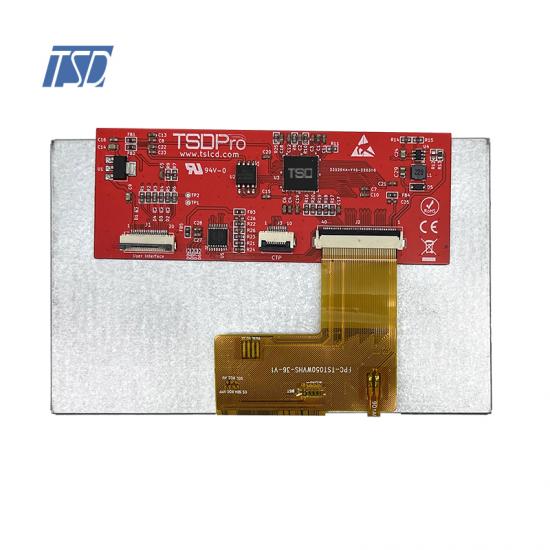

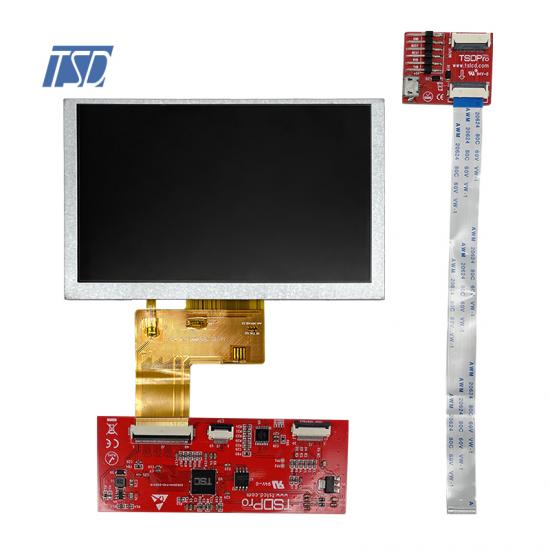

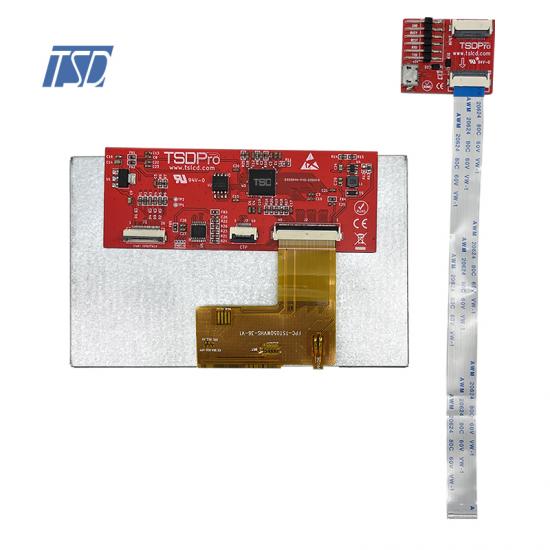

ProLCD-T050N01 is 800x480 WVGA 5 inch LCD display with UART serial port. This 5 inch display is using IPS glass, with the very best performance of full viewing angle. Driver IC is ST7262, interface type is UART with 20 pins, TSD could also make all kinds of customized design basing on your requirements. Backlight design is 18 LEDs with 60mA backlight current, typical luminance is 500 cd/m2. We could also make other high brightness model for different application.
UART (Universal Asynchronous Receiver and Transmitter) universal asynchronous receiver and transmitter (asynchronous serial communication port), is a general Data communication protocol, which includes interface standard specifications and bus standard specifications such as RS232, RS499, RS423, RS422 and RS485, that is, UART is the general name for asynchronous serial communication ports.
RS232, RS499, RS423, RS422 and RS485 are interface standards and bus standards corresponding to various asynchronous serial communication ports. They specify the electrical characteristics, transmission rate, connection characteristics and mechanical characteristics of the interface, etc.

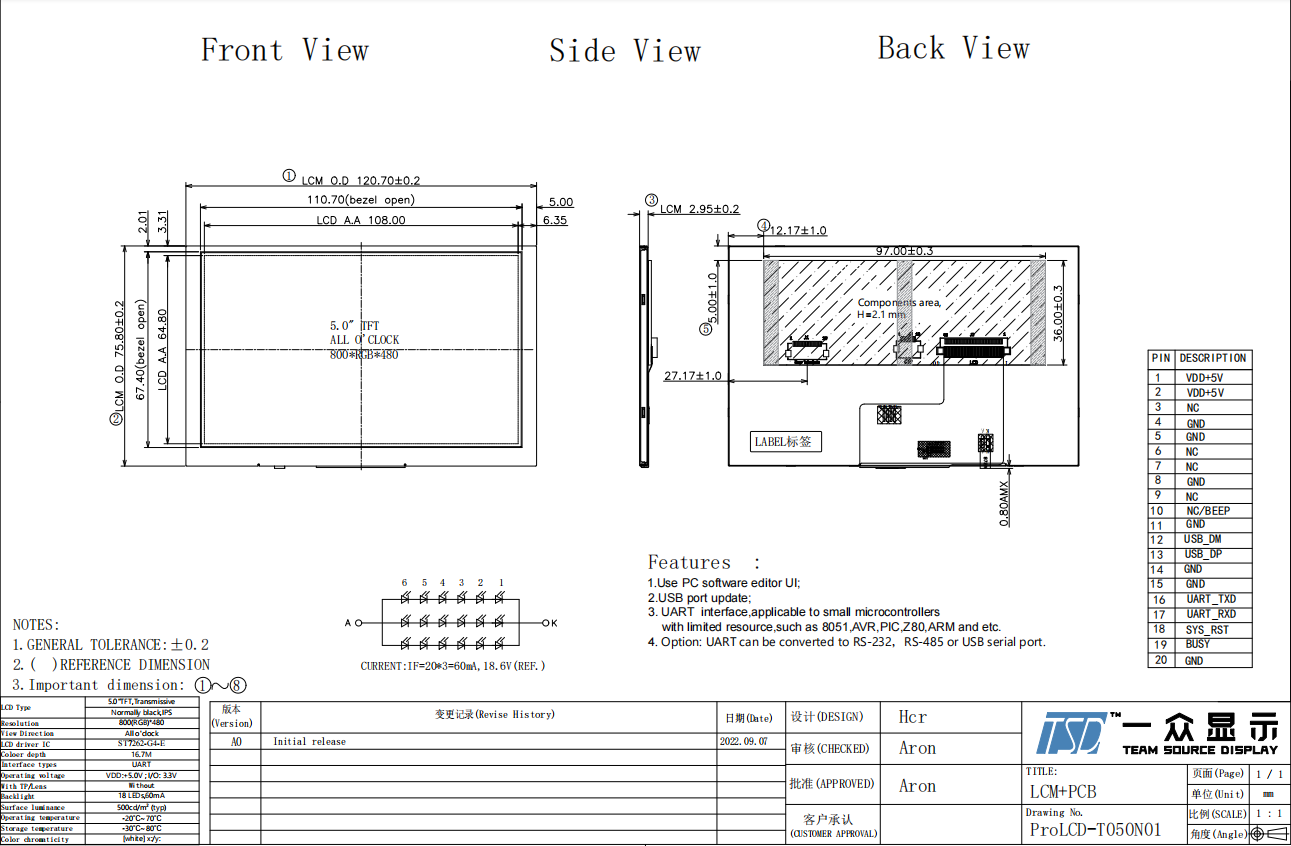

Drawing:
Specifications:
| General Specification | ||
| Part No. | ProLCD-T050N01 | |
| Outline Dimension(mm) |
120.7x75.8x2.95mm |
|
| Active Area(mm) | 108(W) x 64.8(H) | |
| Resolution(dots) | 800x(RGB)x480 |
|
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 800(H)xRGBx480(V) | |
| Touch panel | without | |
| Driver IC | ST7262 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | UART |
|
| Module lifetime(Hours) | 30,000-50,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | VDD | Power voltage 5V |
| 2 | VDD | Power voltage 5V |
| 3 | NC | No connect |
| 4 | GND | Power ground |
| 5 | GND | Power ground |
| 6 | NC | No connect |
| 7 | NC | No connect |
| 8 | GND | Power ground |
| 9 | NC | No connect |
| 10 | BEEP/NC | Buzzer output / No connect |
| 11 | GND | Power Ground |
| 12 | USB_DM | This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data. |
| 13 | USB_DP | This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data. |
| 14 | GND | Power Ground |
| 15 | GND | Power Ground |
| 16 | UART_TXD | This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU |
| 17 | UART_RXD | This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal |
| 18 | SYS_RST | Global reset pin |
| 19 | BUSY | This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy |
| 20 | GND | Power Ground |
Introduction for UART interface:
Universal Asynchronous Receiver/Transmitter, usually called UART. UART is a universal serial data bus used for asynchronous communication. This bus has two-way communication and can achieve full-duplex sending and receiving.
The serial port mentioned in embedded also refers to UART, which can be said to be widely used in the embedded field. It directly communicates between the host and auxiliary equipment, such as communication between car audio and external AP, and communication with PC, including monitoring and debugging. device communicates with other devices such as EEPROM.
