Description:

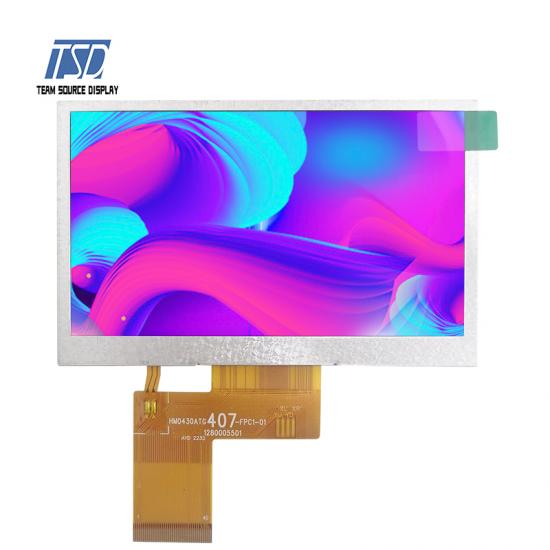

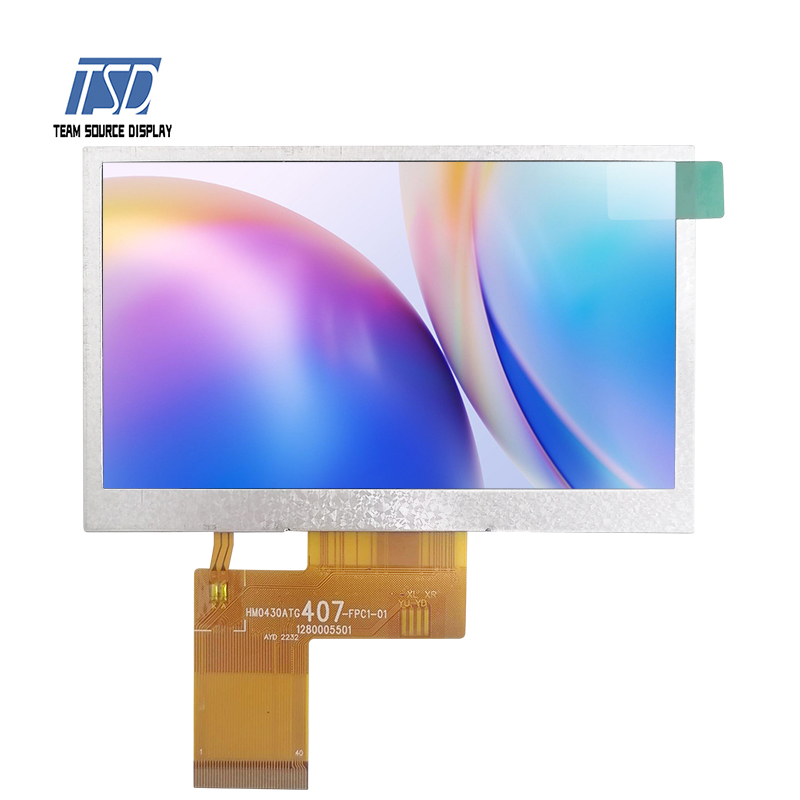

TST043WQOS-G07 is 4.3 inch 480x272 resolution RGB pins LCD display module in industrial grade, It could be used for HMI and access control. The brightness is 750 nits, White LEDs is 8, backlight current is 20mA and backlight voltage is 12.4V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ST7285B-G4-CT, The viewing angle is 6 o'clock, color depth is 16.7M, white backlight and transmissive mode.

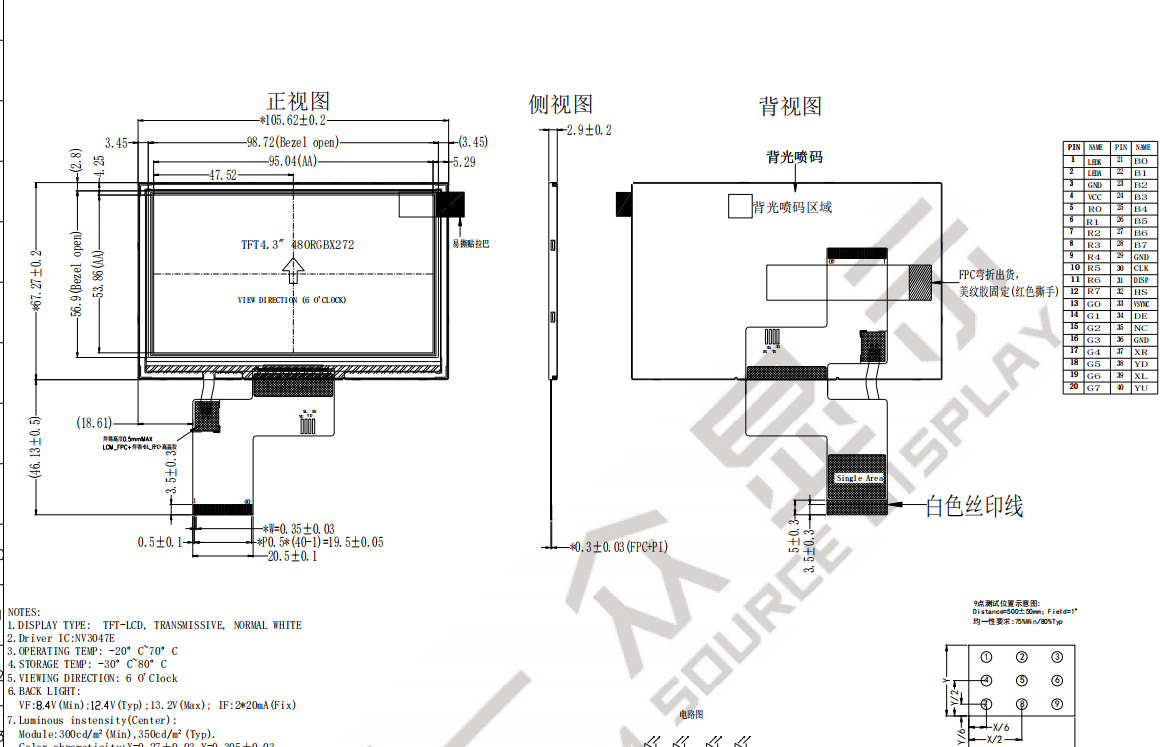

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WQOS-G07 | |
| Outline Dimension(mm) | 105.5x67.2x2.9 | |
| Active Area(mm) | 95.04x53.86 | |
| Resolution(dots) | 480x272 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx272(V) | |
| Touch panel | without CTP | |
| Driver IC | ST7285B-G4-CT | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white,TN, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB interface |
|
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED- | Cathod of LED backlight |
| 2 | LED+ | Anode of LED backlight |
| 3 | GND | Power ground |
| 4 | VCC | Common voltage |
| 5-12 | R0-R7 | Red data |
| 13-20 | G0-G7 | Green data |
| 21-28 | B0-B7 | Blue data |
| 29 | GND | Power ground |
| 30 | DCLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYN | Horizontal sync signal |
| 33 | VSYN | Vertical sync signal |
| 34 | DE | Data enable |
| 35 | NC | No connect |
| 36 | GND | Power ground |
| 37-40 | NC | No connect |
Applications:
For our 4.3 inch 480x272 TFT LCD display model TST043WQOS-G07, it is suitable for smart home product.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
