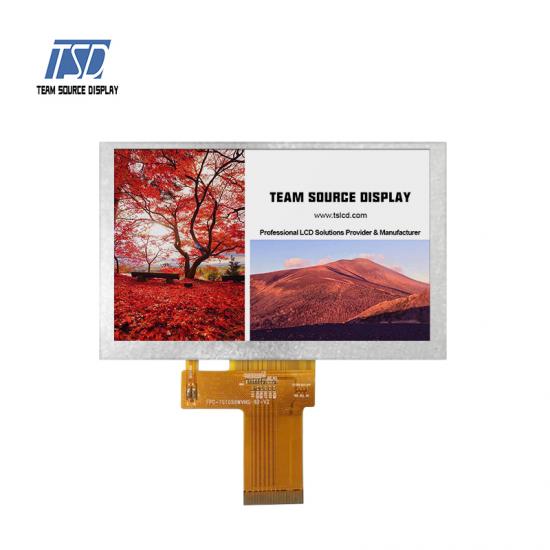

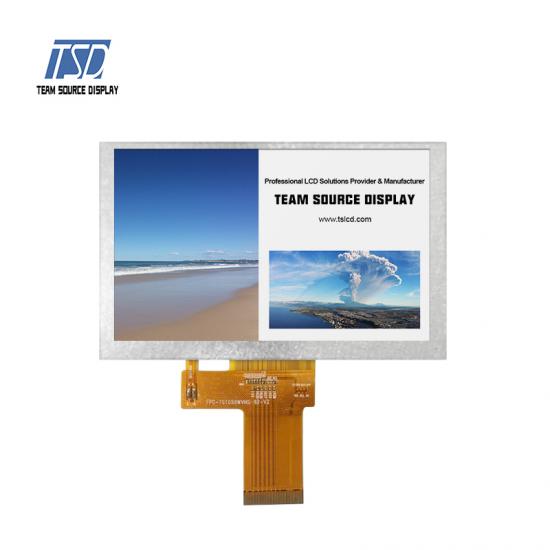

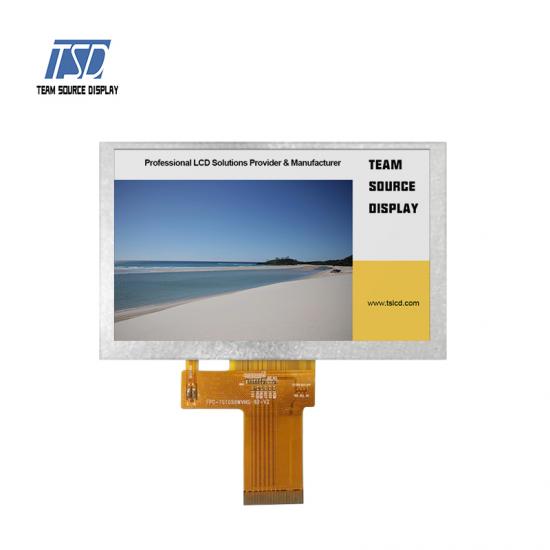

Description:
TST050WVHS-92B is 5 inch 800x480 resolution LCD display with LVDS interface, standard brightness is 650cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262A, Wide working temp. from -30 to +80viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade and automotive application.
Specification | ||
Part No. | TST050WVHS-92B | |
Outline Dimension(mm) | 120.70x75.80x2.9 | |
Active Area(mm) | 108.00x64.80 | |
Resolution(dots) | 800*RGB*480 | |
Operating temperature(°C) | -20-70 | |
Storage temperature(°C) | -30-80 | |
Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
Touch panel | without | |
Dot Pitch | 0.0642(W)x0.1790(H) | |
Pixel arrangement | RGB Vertical stripe | |
Display mode | Normal black,IPS, 5.0 inch TFT | |
Surface treatment | Antiglare | |
View direction | ALL | |
Weight(g) | TBD | |
Power Consumption(w) | Panel | 0.226(Typ.) |
B/L system | 1.674(Typ.) | |
Interface | LVDS | |
Module lifetime(Hours) | 50,000-100,000 |

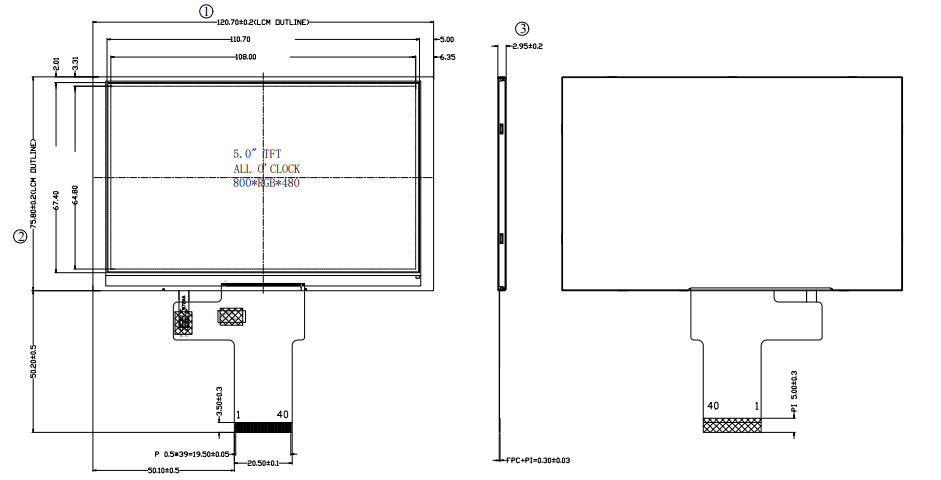

Drawing:
Interface Description:
Pin No. | Symbol | Description |
1 | NC | Common voltage |
2 | VDD | Power voltage for digital circuit |
3 | VDD | Power voltage for digital circuit |
4 | NC | No connect |
5 | NC | Global reset pin |
6 | STBYB |
STBYB:=1. Normal optation STBYB:0, Standby mode. |
7 | GND | Power ground |
8 | RXIN0- | Negative LVDS differential data input |
9 | RXINO+ | Positive LVDS differential data input |
10 | GND | Power ground |
11 | RXIN1- | Negative LVDS differential data input |
12 | RXIN1+ | Positive LVDS differential data input |
13 | GND | Power ground |
14 | RXIN2- | Negative LVDS differential data input |
15 | RXIN2+ | Positive LVDS differential data input |
16 | GND | Power ground |
17 | RXCLKIN- | Negative LVDS differential clock input |
18 | RXCLKIN+ | Positive LVDS differential clock input |
19 | GND | Power ground |
20 | RXIN3- | Negative LVDS differential data input |
21 | RXIN3+ | Positive LVDS differential clock input |
22 | GND | Power ground |
23 | NC | No connect |
24 | NC | No connect |
25 | GND | Power ground |
26 | NC | No connect |
27 | NC | No connect |
28 | NC | No connect |
29 | NC | No connect |
30 | GND | Power ground |
31 | LEDK | LED Cathode |
32 | LEDK | LED Cathode |
33 | L/R | Horizontal inversion |
34 | U/D | Vertical inversion |
35 | NC | No connect |
36 | NC | No connect |
37 | NC | No connect |
38 | NC | No connect |
39 | LEDA | LED Anode |
40 | LEDA | LED Anode |
Applications:
For our 5 inch LCD display TST050WVHS-92B, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.5‘’ 800*480 res. with 40 pins LVDS interface
2. IPS lcd full viewing angle
3.high brightness up to 650nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
