Description:

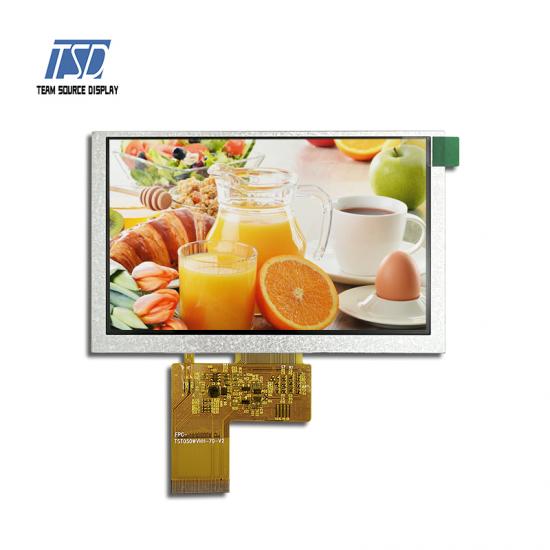

TST050WVHS-93 is 5 inch 800x480 resolution LCD display with RGB interface, standard brightness is 1500cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262A, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade application.
| Specification | ||
| Part No. | TST050WVHS-93 | |
| Outline Dimension(mm) | 120.70x75.80x2.9 | |
| Active Area(mm) | 108.00x64.80 | |
| Resolution(dots) | 800*RGB*480 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
| Touch panel | without | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal black,IPS, 5.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | RGB | |
| Module lifetime(Hours) | 50,000-100,000 | |

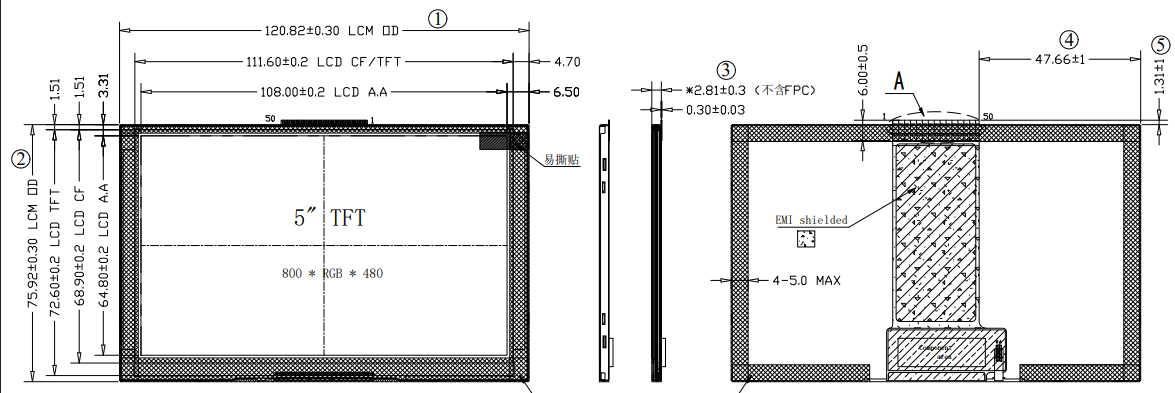

Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | LEDK | Cathode ofLED backlight |
| 2 | LEDK | Cathode ofLED backlight |
| 3-4 | LEDA | Anode ofLED backlight |
| 5 | NC | Not connect |
| 6 | GND | Power ground |
| 7-10 | NC |
Not connect |
| 11 | LR | Horizontal scan direction control pin. This pin must be connected to “H” or “Laccording to system application. |
| 12 | UD | Vertical scan direction control pin. This pin must be connected to “H"or “L"according to system application. |
| 13-14 | VCC | Power supply+ |
| 15 | GND | Power ground |
| 16 | DE | Data enable |
| 17 | VSYNC | Horizontal sync signal |
| 18 | VSYNC | Vertical sync signal |
| 19 | GND | Power ground |
| 20 | CLK | Pixel clock |
| 21 | GND | Power ground |
| 22-29 | B7~B0 | Blue data |
| 30 | XL/X- | Not connect |
| 31-38 | G7~G0 | Green data |
| 39 | GND | Power ground |
| 40-47 | R7~R0 | Red data |
| 48 | GND | Power ground |
| 49 | RESET | Reset input pin |
| 50 | STBYB | DISP sets the display mode. “H”Normal display mode |
Applications:
For our 5 inch LCD display TST050WVBS-93, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.5‘’ 800*480 res. with 50 pins RGB interface
2. IPS lcd full viewing angle
3.high brightness up to 1500nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
