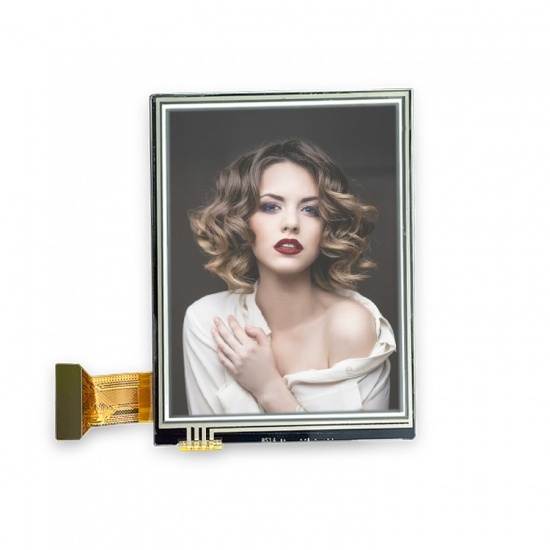

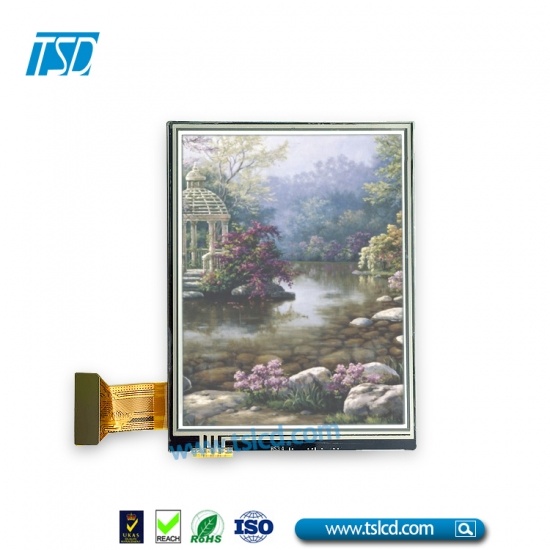

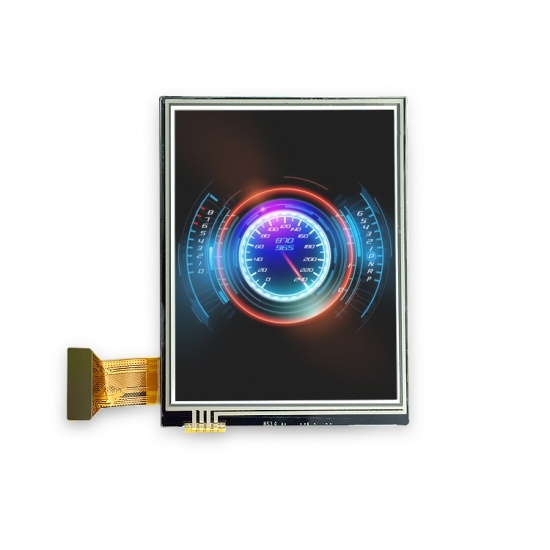

3.5 inch 320x240 resolution transflective TFT LCD display
  • Item No. :

  • Payment :

    T/T in advance
  • MOQ :

  • Lead Time :

    4~5 weeks
  • Package Details :

inquire now
  • Specifications
  • dimention
  • effect

LCD type transflective 3.5" tft lcd
Display type 3.5" TFT, normal white
Touch panel without
Description transflective 3.5" tft lcd
Driver element a-si TFT Active matrix
Outline Dimension(mm) 85.0x53.64x2.93
v.A(mm) 74.52x56.54
A.A.(mm) 71.52x53.64
Driver IC ILI9341
Resolution(dots)_ 320*RGB*240
Viewing Direction 6H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 2400(V)
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 6 LEDs, White
Weight(g) TBD
Module lifetime(Hours) 50,000-100,000
