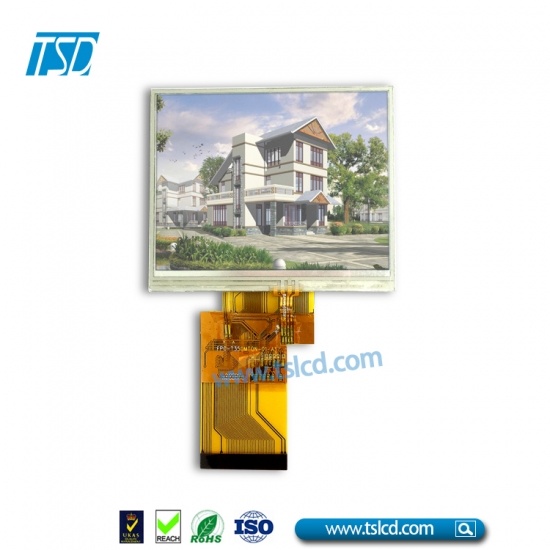

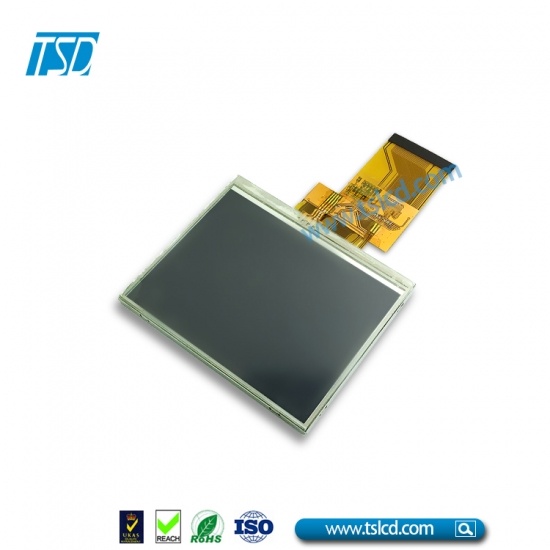

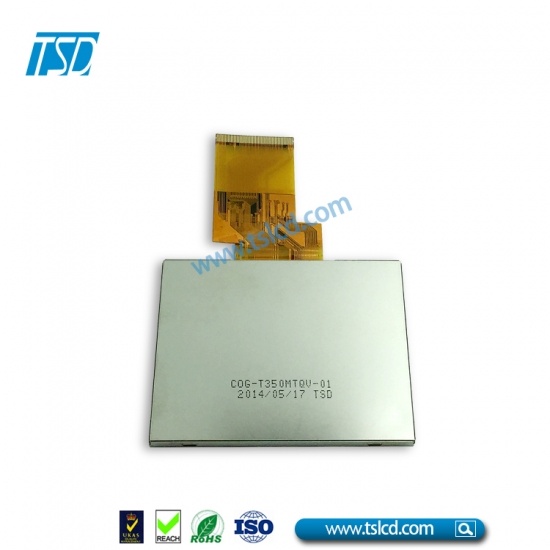

3.5 inch TFT LCD Screen with RTP side bonding
  • Item No. :

    TST350MTQV-01BP
  • LCD Type :

    TFT ,transmissive,nomal type
  • Payment :

    T/T in advance
  • MOQ :

    500
  • Lead Time :

    15days
  • Package Details :

    200pcs/CTN 15KG/CTN
inquire now Data sheet
  • Specifications
  • dimention
  • effect

Specification
LCD type 3.5" tft lcd , Transmissive
Display type 3.5" TFT 262k color, normal white
Item description RTP for 3.5" QVGA tft lcd
Driver element a-si TFT Active matrix
Outline Dimension(mm) 76.9x63.9x3.15
A.A.(mm) 70.08x52.56
Driver IC NV3035
Resolution(dots) 320x240 resolution
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Pixel Pitch 0.219x0.219
Logic Volatge 2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Interface RGB 24 bits parallel interface
Backlight 6 LEDs, White
Weight(g) 29.3
Interface RGB
Module lifetime(Hours) 50,000-100,000
