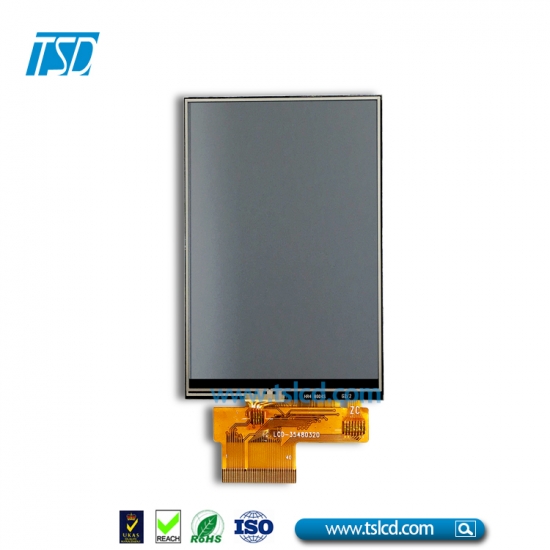

Best offer 3.5'' 320X480 tft lcd screen display with resistive touch panel
  • Item No. :

    TST35HV15BR
  • LCD Type :

    TFT ,transmissive,nomal type
  • Payment :

    T/T in advance
  • MOQ :

    500
  • Lead Time :

    15days
inquire now Data sheet
  • Specifications
  • dimention
  • effect



Specification
LCD type TFT, Transmissive
Display type 3.5 inch TFT lcd hvga, 262k color, normal white
Driver element a-si TFT Active matrix
Outline Dimension(mm) 54.5x83.0x2.1
A.A.(mm) 48.96x73.44
Driver IC HX8357D
Item 3.5 inch tft lcd panel with zif fpc connector
Resolution(dots)_ 320*RGB*480
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Dots Pitch 0.18x0.18
Operating Volatge 2.8v
Pixel arrangement RGB Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 6 LEDs, White
Weight(g) TBD
Interface MCU 8/16 bits
Module lifetime(Hours) 50,000-100,000
