Description:
TSD is a professional LCD manufacturer in China, specializing in TFT LCD, Mono LCD, Touch Panel, OLED Display and E-ink for many years. TSD has developed thousands of OEM&ODM LCD Modules for various fields, including Smart Home Appliances, Industrial, Automotive, Medical, etc.

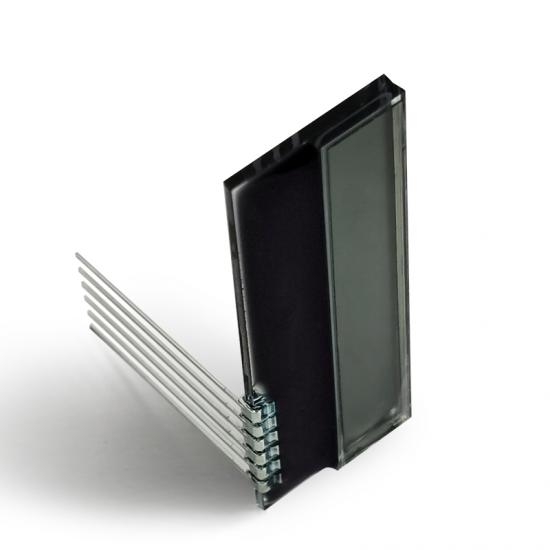

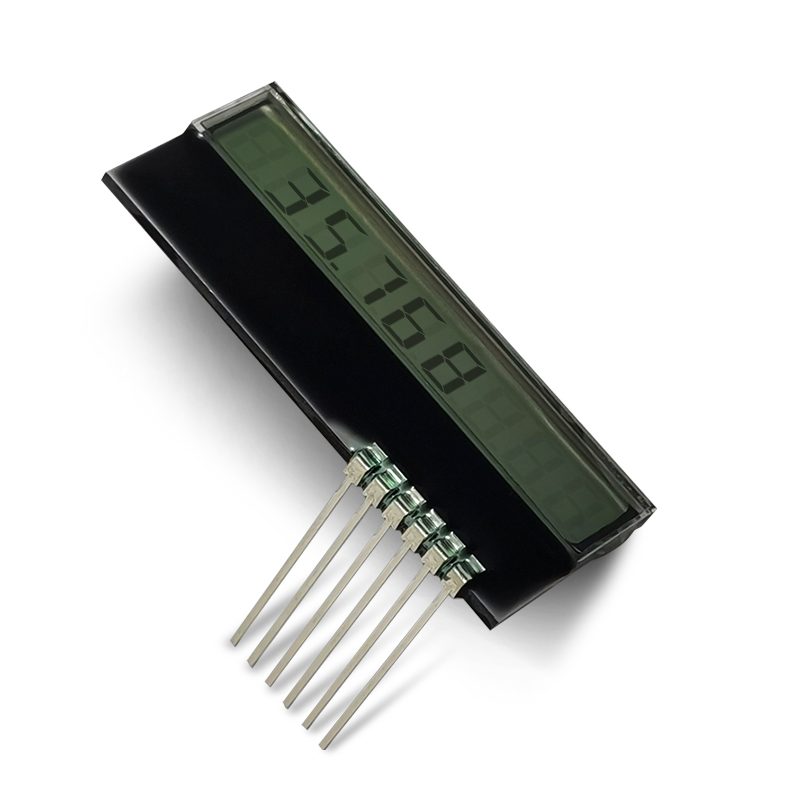

TSD TIC33 TSG093-F-T custom TN glass reflective positive with pin connection:
Custom Process:
Confirm specific requirements → Pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collect
Lead time for custom LCD:
drawing making:2-5days
tooling and samples: around 3wks
OEM and customization are welcome!

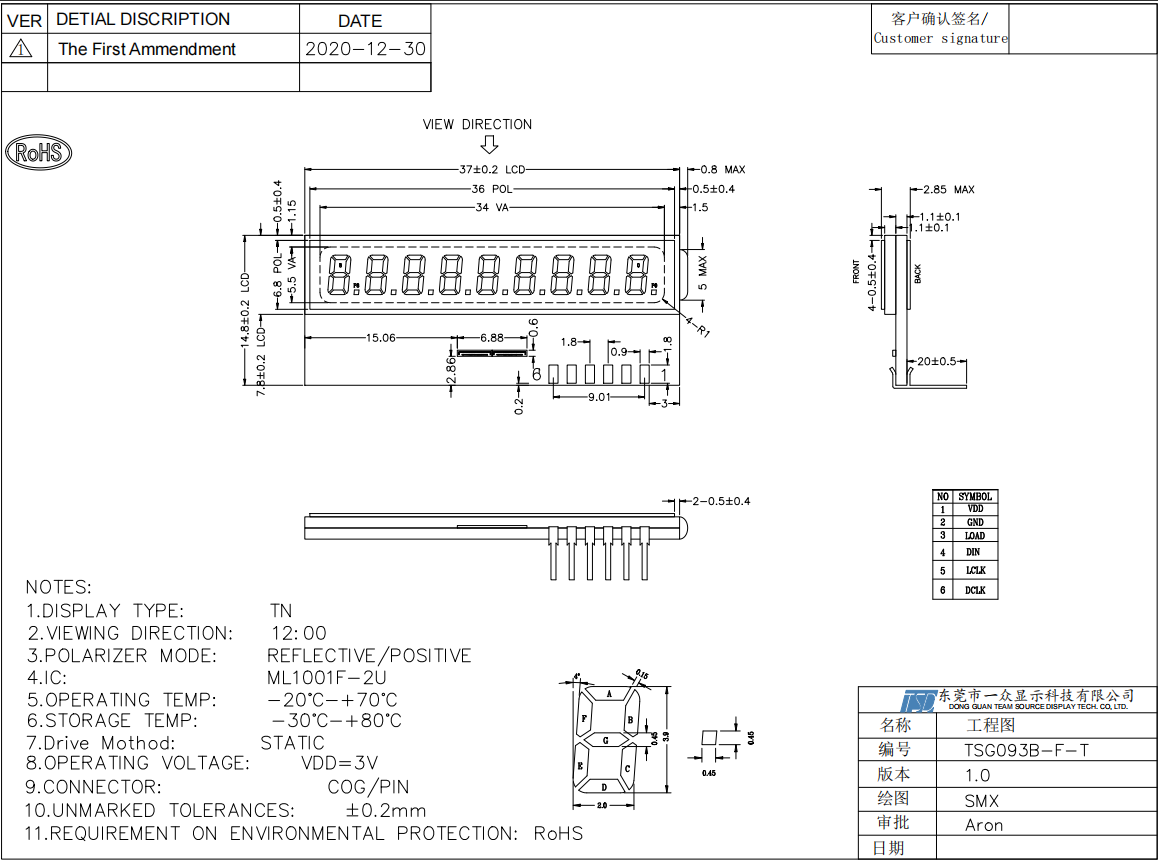

Drawing:
Specifications:
| General Specification | ||
| Part No. | TSG093-F-T | |
| Outline Dimension(mm) |
37.00(W)x14.8(H)x2.85(D) |
|
| Active Area(mm) | 34.00(W) x 5.5(H) | |
| Resolution(dots) | 9 Digital | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 9 Digital | |
| Touch panel | Without | |
| Driver IC | ML1001F-2U | |
| Pixel arrangement | Segment | |
| Display mode | TN/ Refective/ Positive | |
| Surface treatment | No | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | PIN | |
| Module lifetime(Hours) | 50,000-100,000 | |
Applications:
The energy meter, digital meter, oiling machine, crane, and air conditioner are customized for your device.
Product Features:
-
1. TN Reflective Positive LCD with 9 Digital Number
2. COG+PIN Connector
3. 12 O'clock Viewing Angle
4. Support Custom the size, shape, content, display mode, etc.
- 5. Drive Method: STATIC
