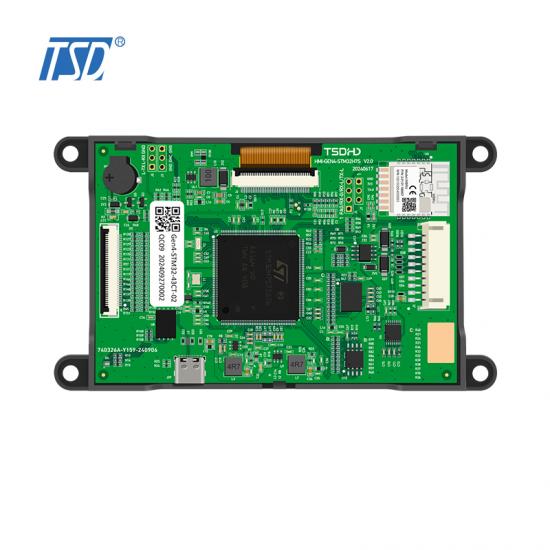

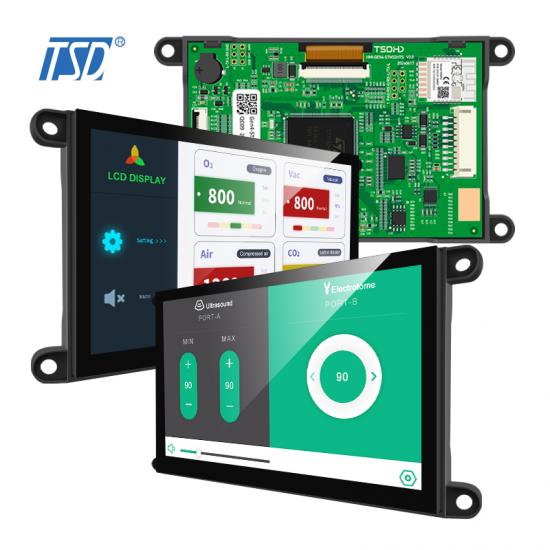

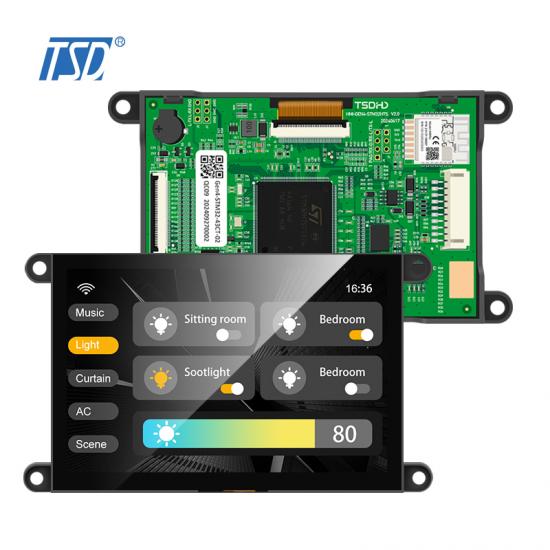

TSD Gen5 smart display 4.3 Inch 800x480 resolution IPS TFT LCD with CAN BUS interface



  • Model Name: Gen5-STM32-43CT-02
  • LCD Type: 4.3 inch smart module display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Surface luminance: 300 cd/m2
  • Controller: STM32H7R7x
  • User Interface: RS232/RS485/CAN, 40pin GPIO
  • Touch Screen: with CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃









Description:



Gen5-STM32-43CT-02 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of TFT LCD panel, Backlight, Capacitive touch screen, Housing,and STM32H7S7x control board.This TFT LCD has a 4.3 (16:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel) resolution.




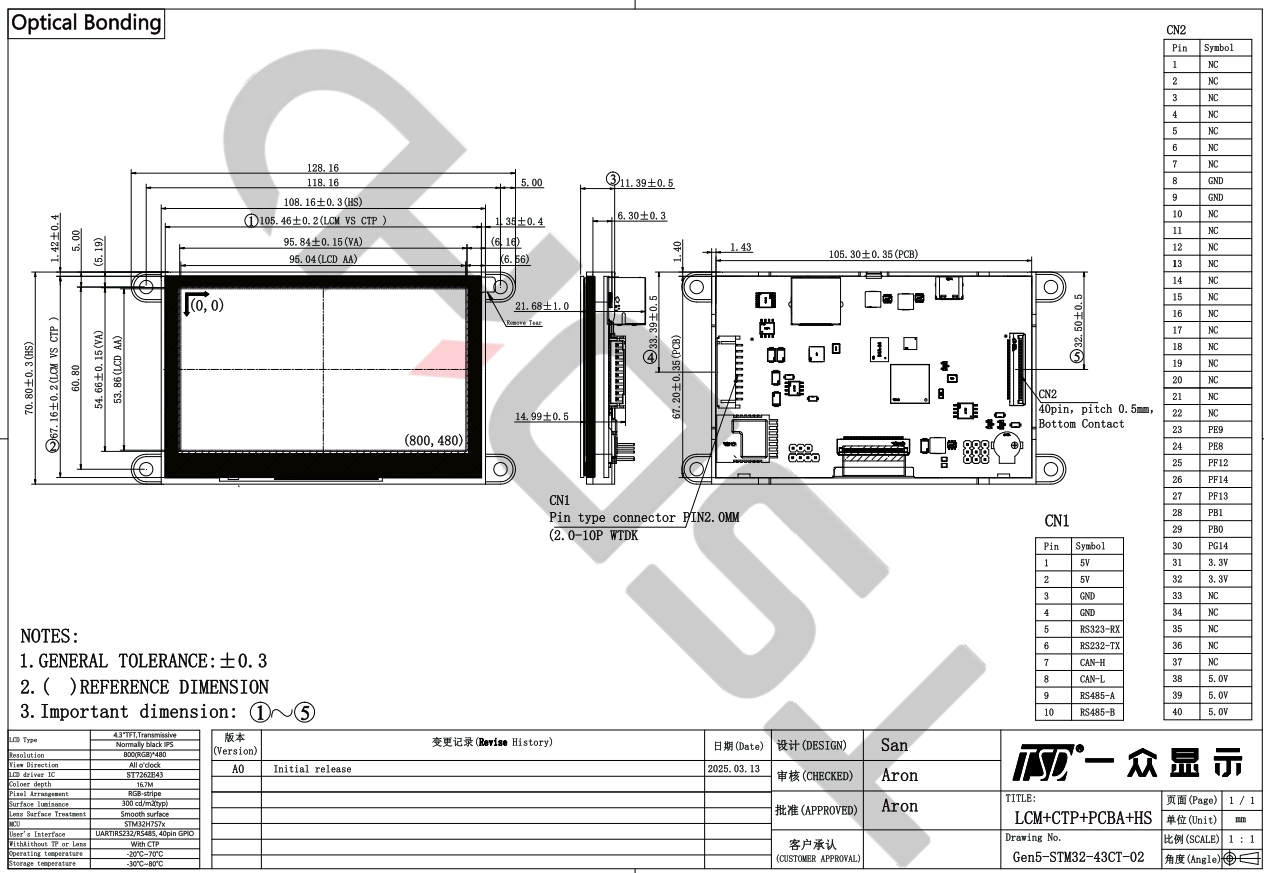

Drawing:



smart lcd display


Specifications:



General Specification
Part No.  Gen4-STM32-43CT-01
Outline Dimension(mm)

128.16x70.8x14.99mm

Active Area(mm) 95.04x53.86mm
Resolution(dots) 800x (RGB) x480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel  with CTP
Driver IC STM32H7R7x
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART/RS232/RS485,40pin GPIO
Module lifetime(Hours) 30,000-50,000





Interface Definition-CN1
Pin No.  Symbol Description
1 5V Power supply (+5.0V)
2 5V Power supply (+5.0V)
3 GND Ground
4 GND Ground
5 RS232-RX
RS232 receive input
6 RS232-TX
RS232 transmit output
7 CAN-H Can bus data transfer, high level
8 CAN-L
Can bus data transfer, low evel
9 RS485-A
RS485 Driver Output/Receiver Input Non-inverting
10 RS485-B
RS485 Driver Output/Receiver Input Inverting







Interface Definition-CN2
Pin No.  Symbol Description
1~7 NC No connection
8~9 GND Ground
10~22 NC No conection
23 PE9 TIM1_CH1, UART7_RTS/UART7_DE, FMC_A14, FMC_BA0,EVENTOUTNC
24 PE8
TIM1_CH1N, UART7_TX, FMC_A12, EVENTOUT
25 PF12
USART1_RX,SPI5_MISO,ADC1_INP6,ADC1_INN2,FMC_D19, EVENTOUT
26 PF14 USART1_CTS,SPI5_MOSI,FMC_A24,LCD_G0,EVENTOUT, ADC2_INP6,ADC2_INN2
27 PF13 USART1_TX,SPI5_NSS,PSSI_D10,FMC_D20,ADC2_INP2, DCMIPP_D10,EVENTOUT
28 PB1 TIM1_CH3N,TIM3_CH4,TIM9_CH2,FDCAN2_TX,LCD_G2
ETH_MII_TXD1/ETH_RMII_TXD1,FMC_NOE,[RNG_S2],EVENTOUT
ADC12_INP5

29 PB0 TIM1_CH2N,TIM3_CH3,TIM9_CH1,
SPI1_SCKI2S1_CK,UART4_CTS,
ETH_MII_TXD0/ETH_RMII_TXD0,GFXTIM_TE,[RNG_S1],
LCD_VSYNC,EVENTOUT,ADC12_INP9,ADC12_INN5
30 PG14 TRACED1,LPTIM1_ETR,SPI6_MOSI/I2S6_SDO,SDMMC2_D7,
ETH_MII_TXD1/ETH_RMII_TXD1,FMC_D31,LCD_B1,EVENTOUT
31~32 3.3V 3.3V Output
33~37 NC No connection
38~40 5V Power supply 5V input




  • Features:
  •
  • 1. Implementing multimodal human-computer interaction based on TouchGFX
  • 2. Powerful 2.5D NeoChrom GPU - smart DMA architecture memory/GPU, High refresh rate and smooth full screen animation effects
  • 3. Integrated with TUYA WiFi module, using SDIO communication, achieving high-speed remote OTA function
  • 4. Rich peripheral interfaces: RS485, RS232, and CAN,  with 40pin GPIO expansion interface
  • 5. Integrated buzzer, support chord sounds
  • 6. High reliability and performance, widely applicable to industries such as home appliances, industry, and new energy etc.
  • 7. For 1024x600 resolution, it can achieve a smooth 60fps refresh rate.
  •

  • Applications:
  •
  • Team Source Display (TSD) specialized in LCD display (0.96 inch to 32 inch) & Touch panel & Intelligent Control & HMI modules. We have the ability to customize STM32 embedded displays basing on customer's requirements, contact us today to get more details freely. For this GEN-4 Intelligence HMI display, the applications are as belows:
  •
  • 1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

    2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

    3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

    4. Medical Devices: sphygmomanometer.

  • 5. Sports Equipment: running machine.

    6. Industrial Control Equipment: remote control, punched-card machine.

    7. Information Terminal Display: POS, PDA, Handheld devices.

    8. Security Products: elevator controller, electronic indicator

  • And other other fields...
  •

GEN-4 STM32 smart display



  •
