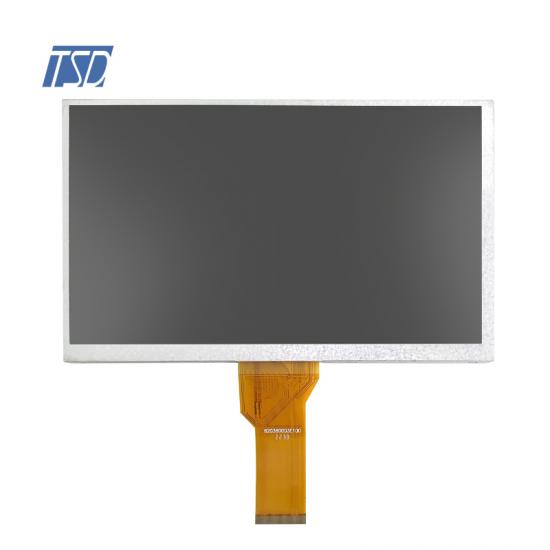

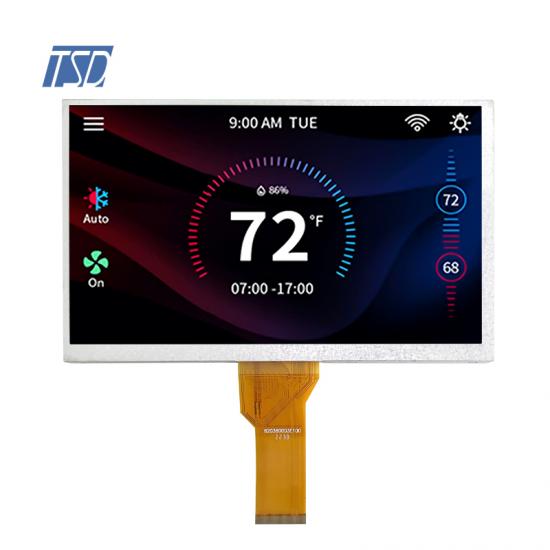

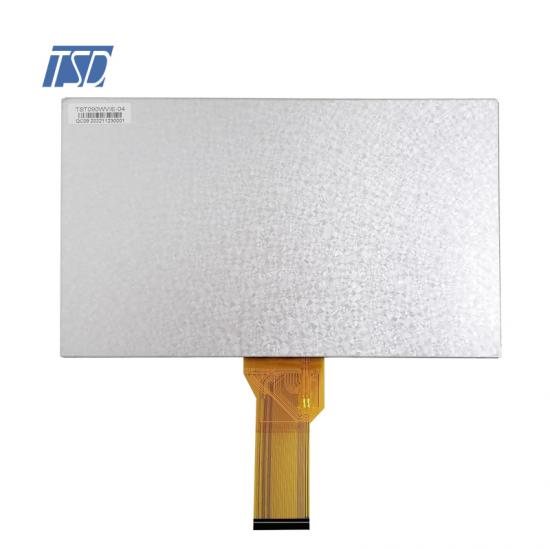

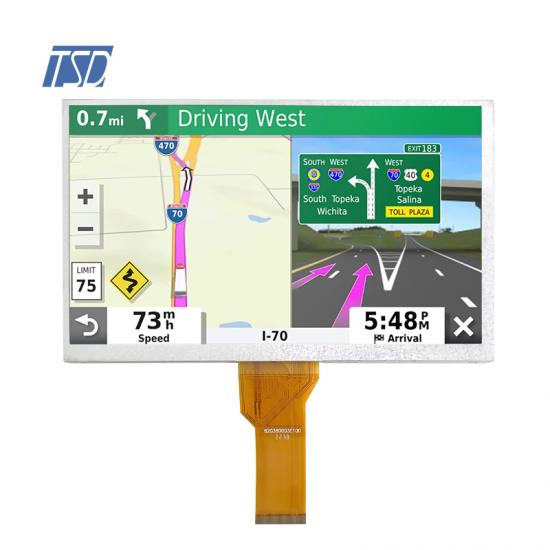

TSD 9 inch tft lcd module 800x480 with RGB interface display

  • Model Name: TST090WVIE-04
  • LCD Type: 9 inch TFT LCD display module
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 450 cd/m2
  • Driver IC: EK9713CA&EK73002A
  • Interface: RGB 24bit
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



Team Source Display model TST090WVIE-04 serials are the standard 9'' color TFT LCD, normally white with transmissive type TN panel,

wvga 800x480 resolution, EK9713CA&EK73002A driver ICRGB-24bits 40pin interface, 16.7M color depth, Anti-glare surface treatment.

with RTP& CTP available,  brightness 450nits.

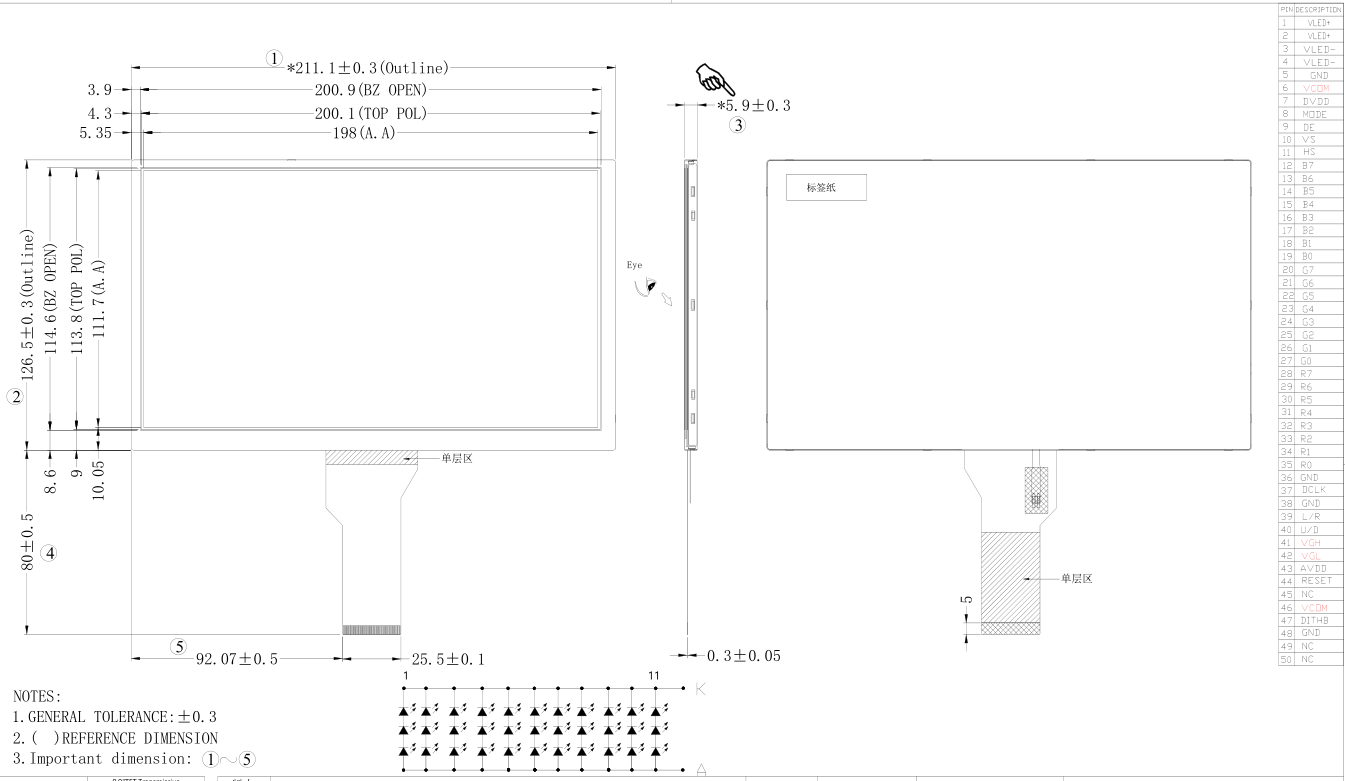

Drawing:




Specifications:



General Specification
Display mode
9'' TFT, Transmissive, Normal white,TN,
Part No.  TST090WVIE-04
Outline Dimension(mm)

211.1x126.5x5.9mm

Active Area(mm) 198x111.7mm
Resolution(dots) 800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Operating Voltage
3.3V
Touch panel  without
Driver IC EK9713CA&EK73002A
Pixel arrangement RGB-stripe
View direction  12H
Interface RGB 24bits
Brightness 450nits
Backlight 33LEDs, 220mA, 9V
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition
Pin No.  Symbol Description
1-2 VLED+ Anode of LED Backlight
3-4 VLED- Cathode of LED Backlight
5 GND Power Ground
6 VCOM A power supply for the TFT-LCD common electrode
7 DVDD Power Voltage (3.3V)
8 MODE DE / SYNC mode select.
9 DE Data Input Enable
10 VS Vertical Sync input
11 HS Horizontal Sync input
12-19 B7-B0

Blue data bus

20-27 G7-G0 Green data bus
28-35 R7-R0 Red data bus
36 GND

Power ground

37 DCLK



Dot clock signal for DPI (RGB) interface
38 GND

Power ground

39 L/R



Source Right or Left sequence control
40 U/D



Gate Up or Down scan control
41 VGH



Power output pin for gate driver
42 VGL



Power output (Negative) pin for gate driver
43 AVDD



Power pad for analog circuit.
44 RESET
Global reset pin
45 NC Not connect
46 VCOM
A power supply for the TFT-LCD common electrode
47 DITHB
Dithering function enable control.
48 GND
Power ground
49-50 NC Not connect

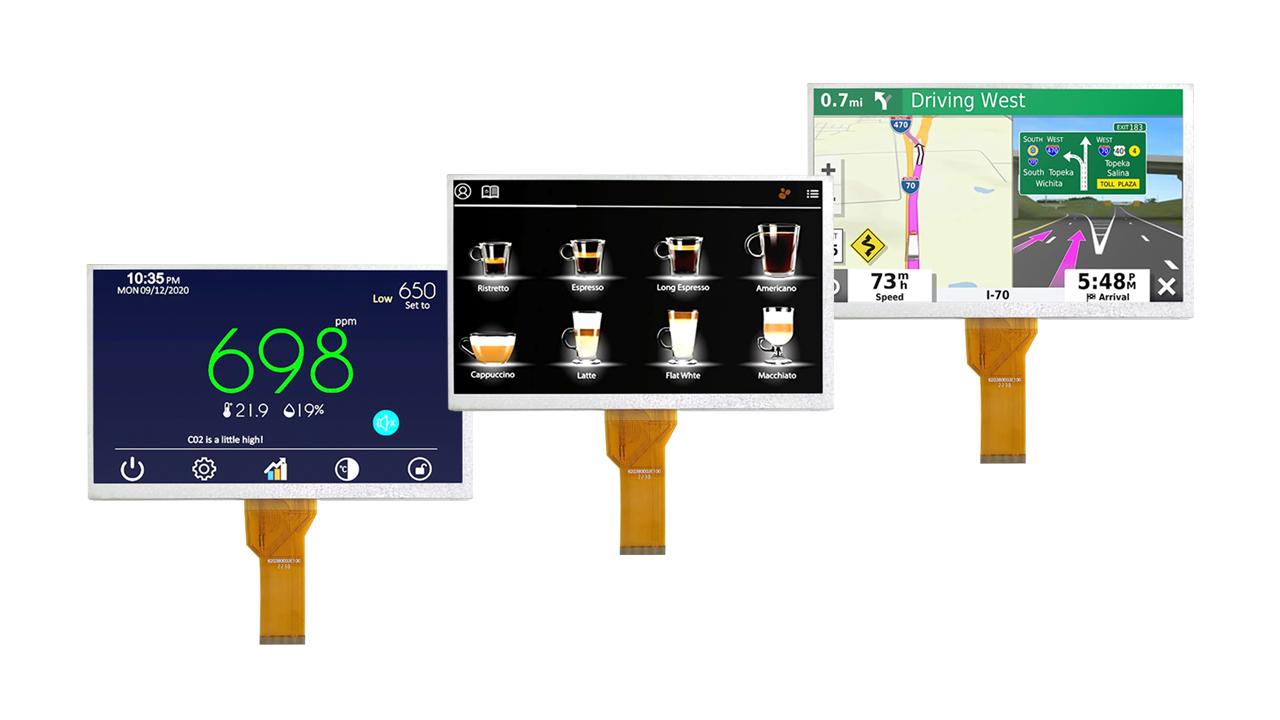

Applications:



For this 9 inch TFT LCD display 800x480 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, consumer products.




Product Features:



1. 800x480 9'' LCD

2. Operating temperature -20~+70 degree.
