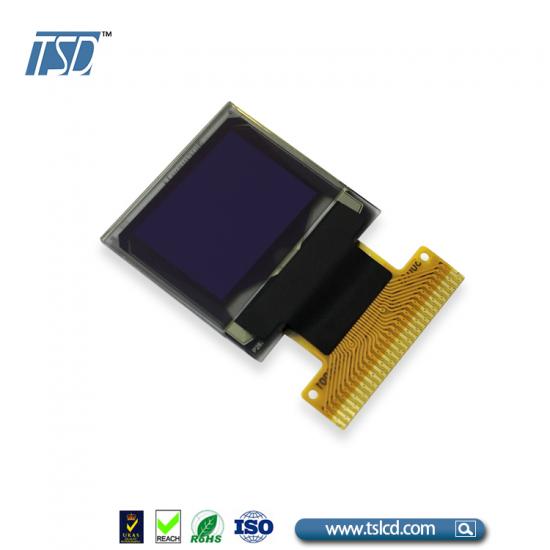

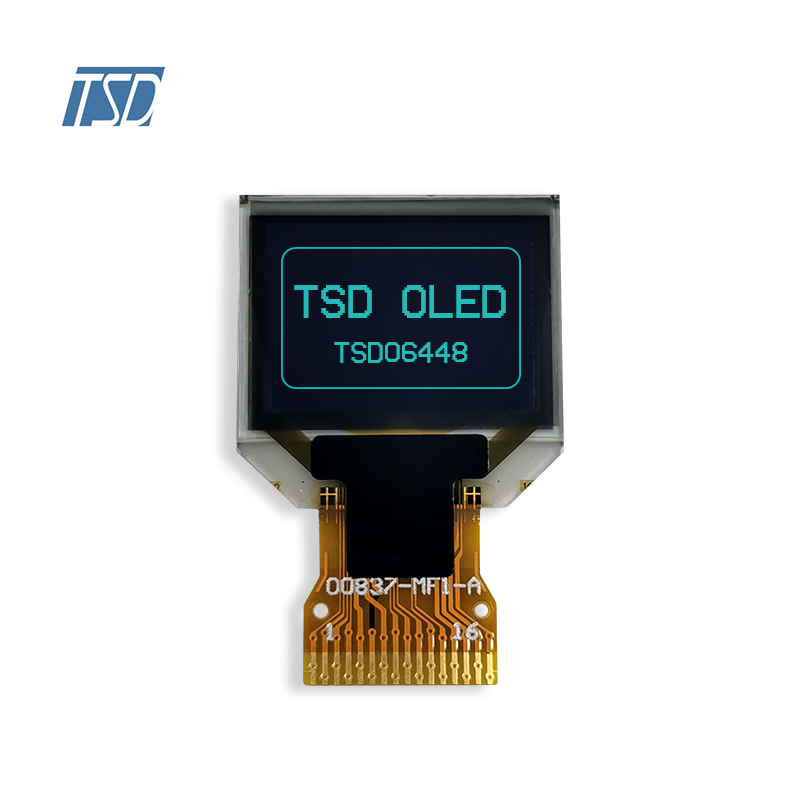

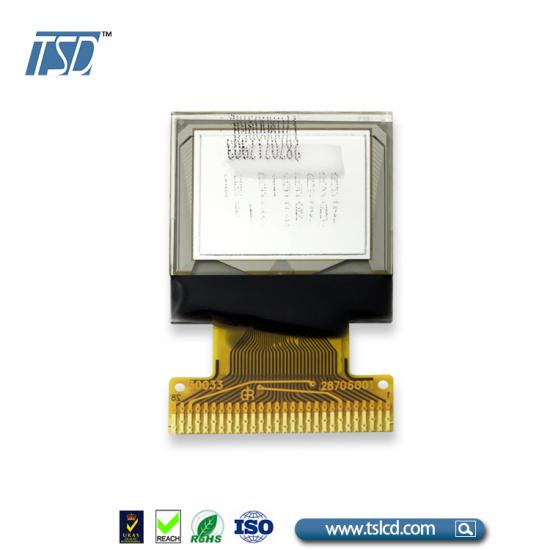

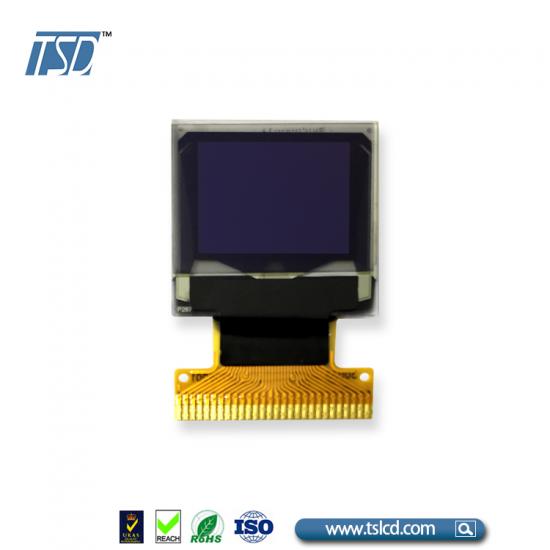

TSD 64*48 dots OLED display 0.66 inch white OLED display

  • Model Name: TSO6448
  • Type: 1.06 OLED Display
  • Color: White
  • Dot Matrix: 64x48dots
  • Driver IC: SSD1306BZ
  • Interface:  4 wire SPI
  • Dot Pitch: 0.21x0.21mm
  • Weight: 0.82g
  • Duty: 1/48
  • Operating Temperature: -40 ~ +70℃
  • Storage Temperature: -40 ~ +85℃

(6) Interface: 4-Wire SPI

Description:



Team Source Display model TSO6448 is a monochrome OLED display module with 64x48 dot matrix. I2C interface. high technology for low power consumption without backlight.  high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and available to add with touch screen or cover glass on top.

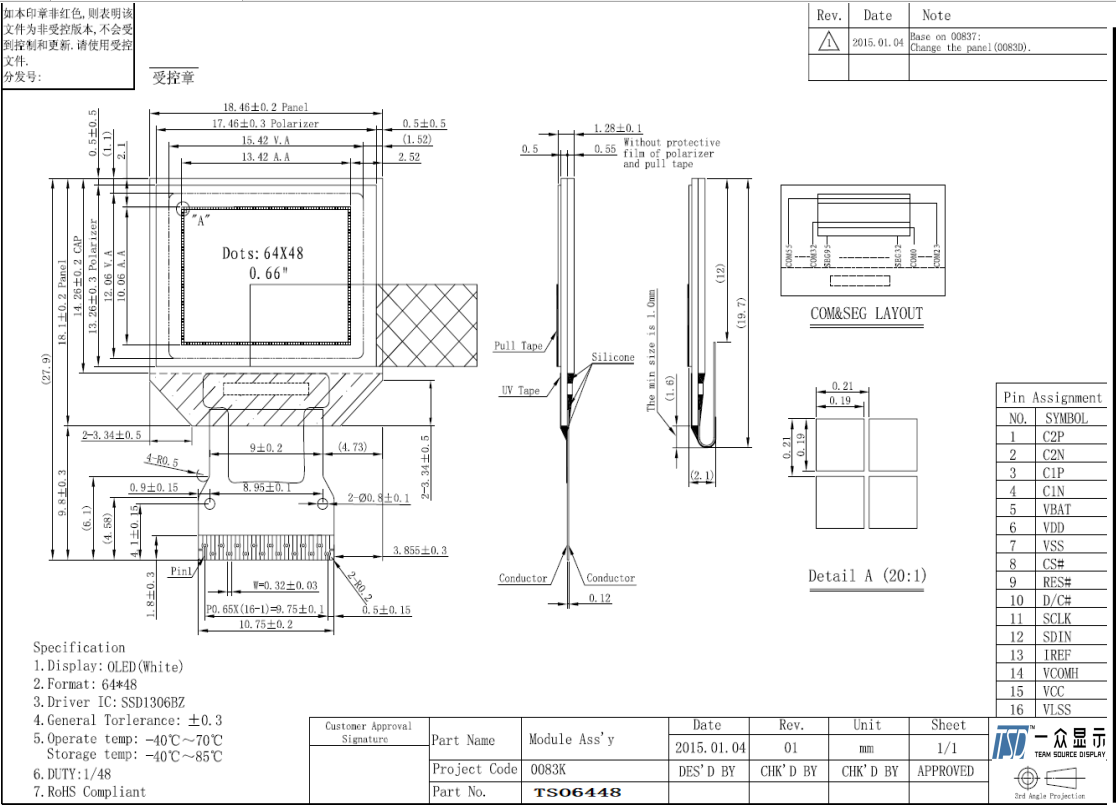

Drawing:




Specifications:



General Specification
Display mode
0.66'' Passive Matrix OLED Monochrome Display
Part No.  TSO6448
Outline Dimension(mm)

18.46(W)x14.26(H)x1.28(D)

Active Area(mm) 13.42(W) x 10.06(H)
Resolution(dots) 64×48 dots
Color White
Operating temperature(°C) -40 ~ +70°C
Storage temperature(°C) -40 ~ +85°C
Operating Voltage
3.3V
Touch panel  could support with cover glass and touch screen
Driver IC SSD1306BZ
Interface  4wire SPI
Dot size 0.19x0.19
Duty 1/48
Weight(g) 0.82g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition

1 C2P
2 C2N
3 C1P
4 C1N
5 VBAT
6 VDD
7 VSS
8 CS#
9 RES#
10 D/C#
11 SCLK
12 SDIN
13 IREF
14 VCOMH
15 VCC




Applications:



For this 0.66inch white OLED Display 64x48 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, Handheld devices and Consumer products.


Product Features:



1. Wide temperature range.

2. Low power consumption.

3. High contrast ratio.
