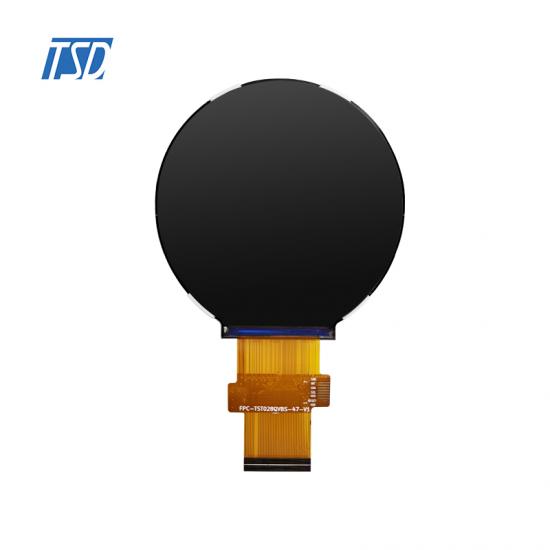

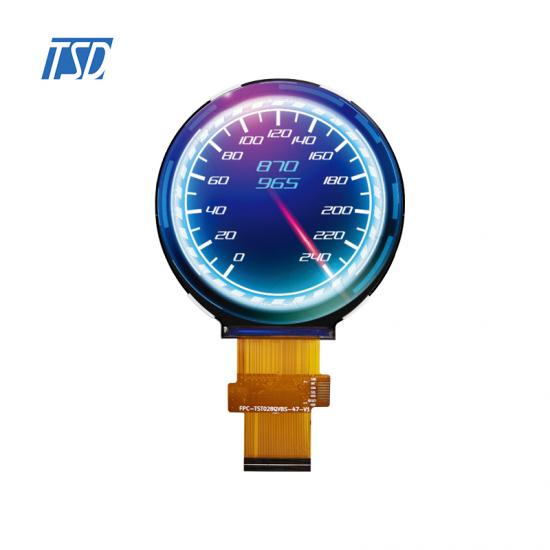

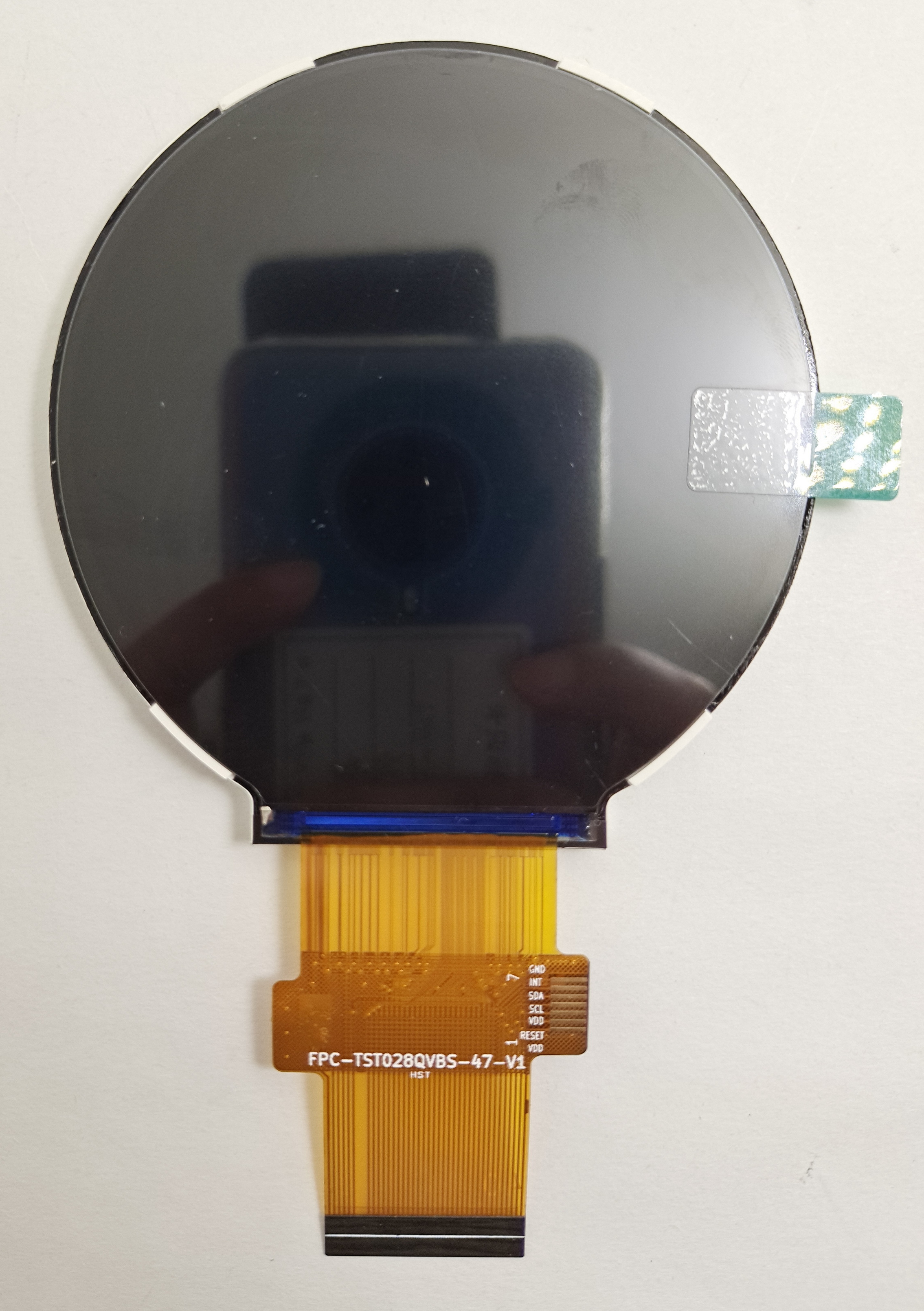

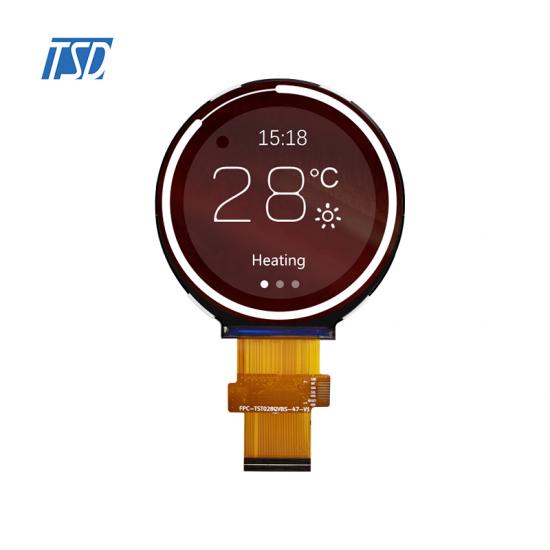

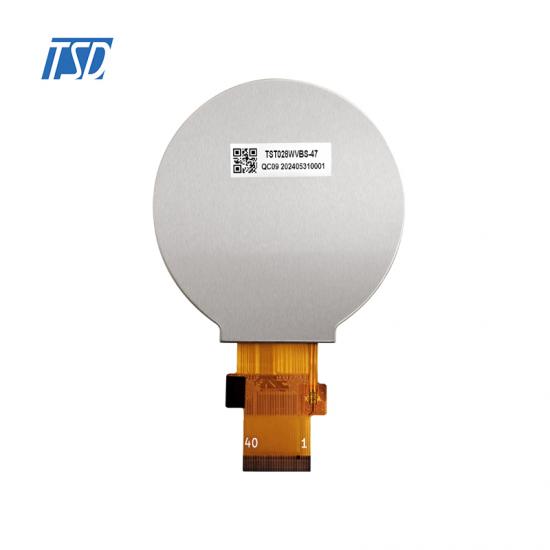

TSD Automotive grade 2.8 inch tft lcd module 480x480 round screen

  • Model Name: TST028WVBS-47
  • LCD Type: 2.8 inch IPS TFT LCD display module
  • Resolution: 480x480
  • Viewing angle:All o'clock
  • Brightness: 1200 cd/m2
  • Driver IC: ST7701S
  • Interface: SPI+RGB 18bit
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃



Description:



Team Source Display model TST028WVBS-47 serials are the standard 2.8'' color round TFT LCD, normally black with transmissive type IPS panel,

480X480 resolution, ST7701S driver IC, SPI+RGB18bits, 16.7M color depth, Anti-glare surface treatment. wide operating temperature-30~+80.

with RTP& CTP available,  brightness 1200nits.

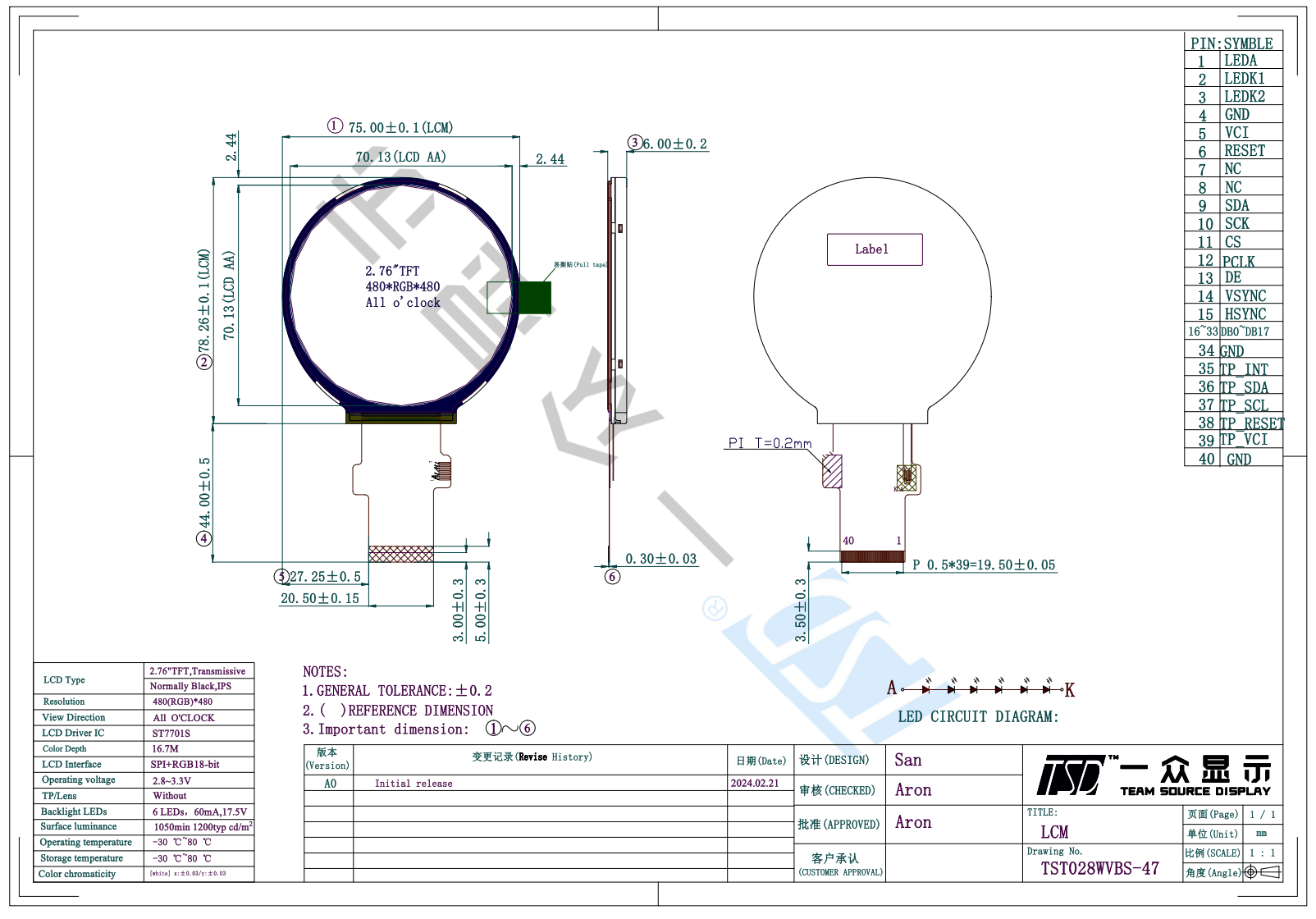

Drawing:




Specifications:



General Specification
Display mode
2.8'' TFT, Transmissive, Normal black,  IPS
Part No.  TST028WVBS-47
Outline Dimension(mm)

75x78.26x6.0mm

Active Area(mm) 70.13x70.13mm
Resolution(dots) 480x (RGB) × 480
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Operating Voltage
2.8~3.3V
Touch panel  without
Driver IC ST7701S
Pixel arrangement RGB-stripe
View direction  All O'clock
Interface SPI+RGB 18bits
Brightness 1200nits
Backlight 6LEDs, 60mA, 17.5V
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition
Pin No.  Symbol Description
1 VLEDA Anode of LED Backlight
2 VLED- Cathode of LED Backlight
5 GND Power Ground
6 VCOM A power supply for the TFT-LCD common electrode
7 DVDD Power Voltage (3.3V)
8 MODE DE / SYNC mode select.
9 DE Data Input Enable
10 VS Vertical Sync input
11 HS Horizontal Sync input
12-19 B7-B0

Blue data bus

20-27 G7-G0 Green data bus
28-35 R7-R0 Red data bus
36 GND

Power ground

37 DCLK



Dot clock signal for DPI (RGB) interface
38 GND

Power ground

39 L/R



Source Right or Left sequence control
40 U/D



Gate Up or Down scan control
41 VGH



Power output pin for gate driver
42 VGL



Power output (Negative) pin for gate driver
43 AVDD



Power pad for analog circuit.
44 RESET
Global reset pin
45 NC Not connect
46 VCOM
A power supply for the TFT-LCD common electrode
47 DITHB
Dithering function enable control.
48 GND
Power ground
49-50 NC Not connect




Applications:



For this 2.8 inch TFT LCD display,  480x480 resolution, suitable for Automotive/Medical/ Industrials Equipments,




Product Features:



1. 480x480 2.8'' Circular LCD

2. Operating temperature -30~+80 degree.
