TSD 160X128 Monochrome Graphic Lcd Display Module



  • Model Name: TSM160128B
  • LCD Type: 160*128 dots lcd
  • Resolution: 160*128
  • Viewing angle: 6H
  • Driver IC: T6963C
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

The TSM160128B is a 160*128 dots dot-matrix LCD module. It has a STN panel composed of 160 segments and 128 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.



Number of dots

 160*128 dots

Module Dimension(mm)

129.0*102*12.1 MAX

Active Area(mm)

101.0*82.0

Dot size

0.54(W)*0.54(H)

Dot pitch

0.58(W)*0.58(H)

Driving Method

1/128 DUTY,1/12,BIAS,VOP=15.0V

Viewing direction

6H

Operating Temperature

-20 to 70

Storage Temperature

-30 to 80

Backlight

White

Driver IC

T6963C+NT7086

Display Mode

STN ,Blue

Display type

Transmissive,Negative

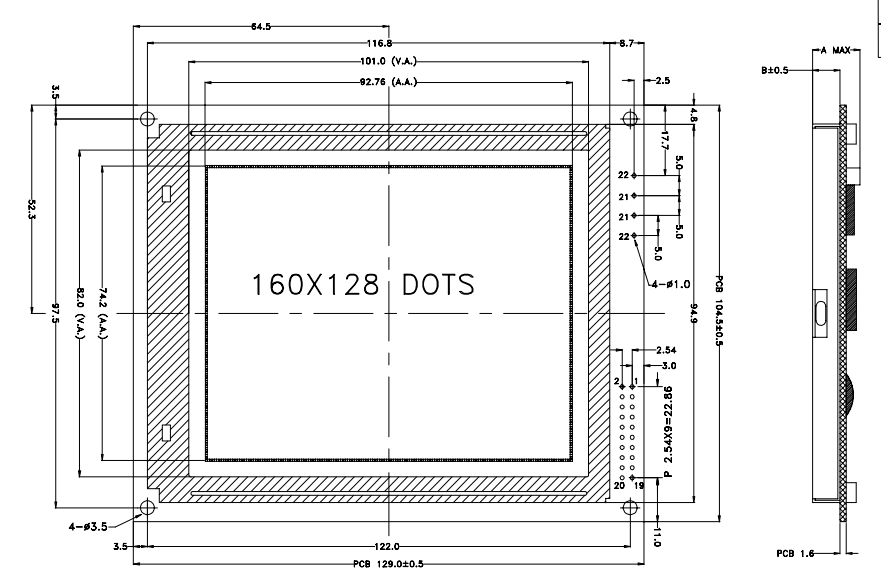

Drawing:



Interface Description:

PIN SYMBOL
1 VEE
2 VSS
3 VDD
4 V0
5 WR
6 RD
7 CE
8 CD
9 NC
10 RES
11 DB0
12 DB1
13 DB2
14 DB3
15 DB4
16 DB5
17 DB6
18 DB7
19 FS1
20 NC
21 LED-
22 LED+



Applications:

For our TSM160128B dots Graphic lcd , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1. TSM160128B dots lcd with 16pins

2. 5v working Voltage

3.T6963C IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
