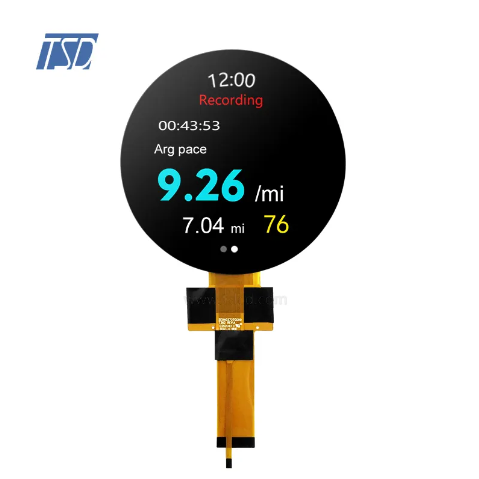

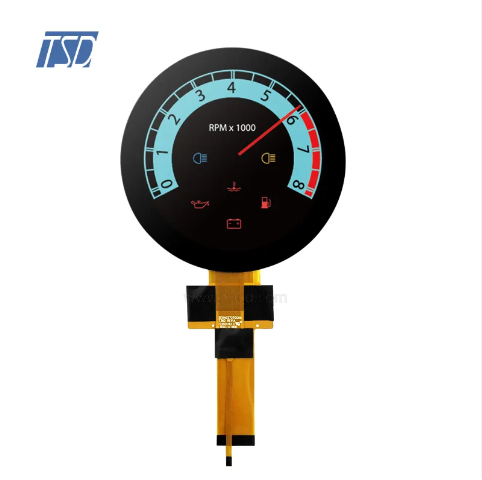

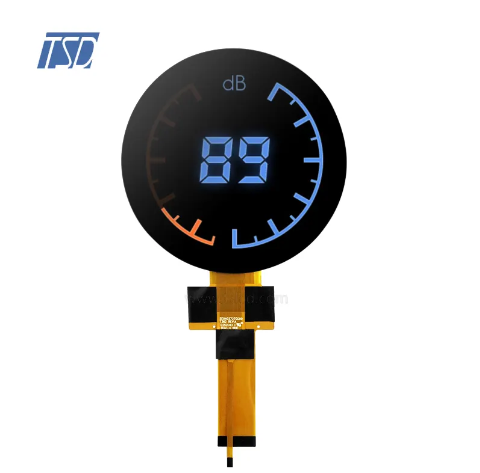

TSD 4.21 Inch TFT LCD round lcd panel 720 x (R,G,B) x 720 resolution with capacitive touch panel

Part number: TST421GGU-01C

Resolution:720 x (R,G,B) x 720

View Direction: All o’clock

Active area: 105.84(H) 105.84(V)

LCM:132.5(H) x132.5(V) x9.3(D)

Backlight:  LED

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST421GGU-01C is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 105.84(H) 105.84(V) and the native resolution is 720 x (R,G,B) x 720 feathers of this product are listed in the following table

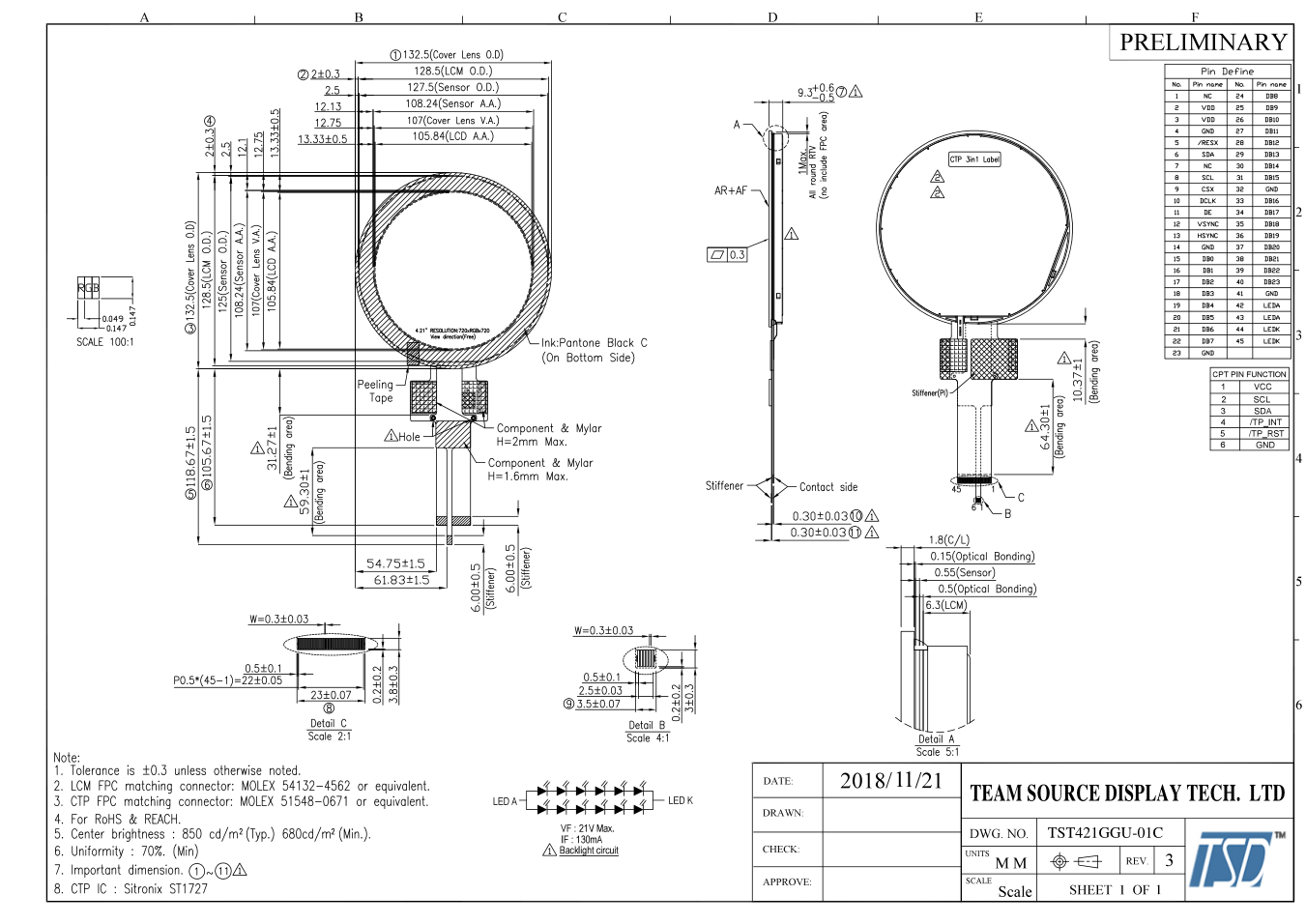

Drawing:

Specification



General Specification

Part No.

TST421GGU-01C

Display Size(Diagonal)

4.21 inch

LCD type

TFT,Transflective,Normally white

Resolution

720*RGB*720

View Direction

ALL o’clock

Module Outline

132.5(H) x132.5(V) x9.3(D)

Active Area

105.84(H) 105.84(V)

Viewing Area

ALL o’clock

Backlight

LED

Driver IC

ST1727

Interface

RGB

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080





Pins Description

Pin No.

Symbol

Description

1

NC

No Connection

2

VDD

Power supply for analog system

3

VDD

4

GND

Ground

5

RESX

This signal will reset the device and must be applied to

properly initialize the chip. Signal is active low..

6

SDA

Serial data input signal.

NC

No Connection

8

SCL

Serial data clock signal.

9

CSX

Chip select input pin (“Low” enable).

10

DCLK

Pixel clock signal.

11

DE

Data enable signal.

12

VSYNC

Vertical sync.

13

HSYNC

Horizontal sync.

14

GND

Ground

15

DB0

 RGB data bus.

16

DB1

17

DB2

18

DB3

19

DB4

20

DB5

21

DB6

22

DB7

23

GND

GND Ground

24-31

DB8-DB15

RGB data bus.

32

GND

Ground

33-37

DB16-DB20

RGB data bus.

38

DB21

RGB data bus.

39-40

DB22-DB23

RGB data bus.

41

 GND

Ground



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
4 inch IPS TFT LCD
TSD 4 inch Round tft LCD display with 720x720 resolution and FL7707N IC
  Model Name: TST040HDBY-41 LCD Type: 4 inch IPS TFT display Resolution: 720x720 Viewing angle: All o'clock Brightness: 300 cd/m2 Driver IC: FL7707N Interface: MIPI Touch Screen: without Operating Temperature: -10 ~ +60℃ Storage Temperature: -20 ~ +60℃
TST421GGU-01C
TSD 4.21 Inch TFT LCD Customization lcd panel 720*720 resolution
Part number: TST421GGU-01C Resolution: 720*720 View Direction: All o’clock Active area: 105.84(H) 105.84(V)   LCM: 132.5(H) x132.5(V) x9.3(D) Backlight:  LED   Weight: TBD Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃

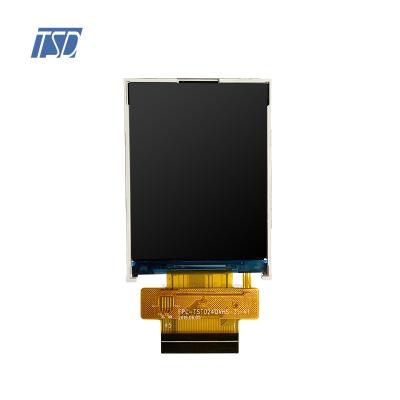

2.4 inch IPS lcd
