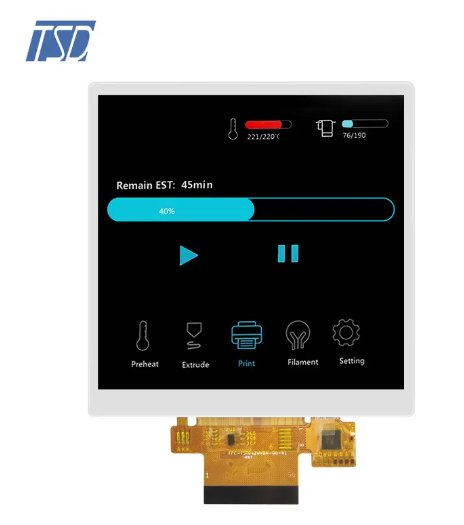

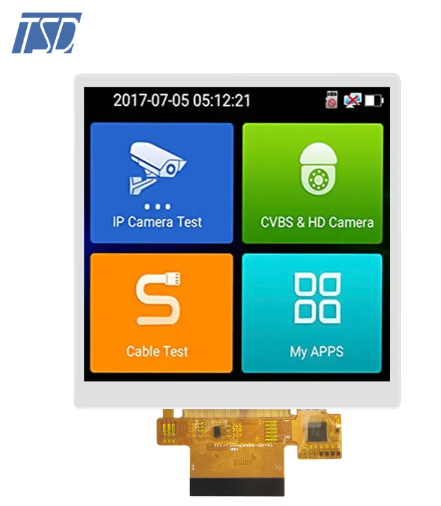

TSD 4.3 inch TFT LCD 720(RGB)*672 Resolution SPI Interface+RGB24-bit

Model Name: TST042WVBN-06C

Resolution: 720(RGB)*672

Viewing Angle:All O'CLOCK

Brightness:250(min),300(Typ) cd/

CTP: With CTP

Interface: SPI+RGB24-bit

Operating Temperature: -20~+70

Storage Temperature: -30~+80

Description:

TST042WVBN-06C is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 74.3904x74.3904 measurement on the diagonal, with an active resolution of 720(RGB)*672. This 4.2 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

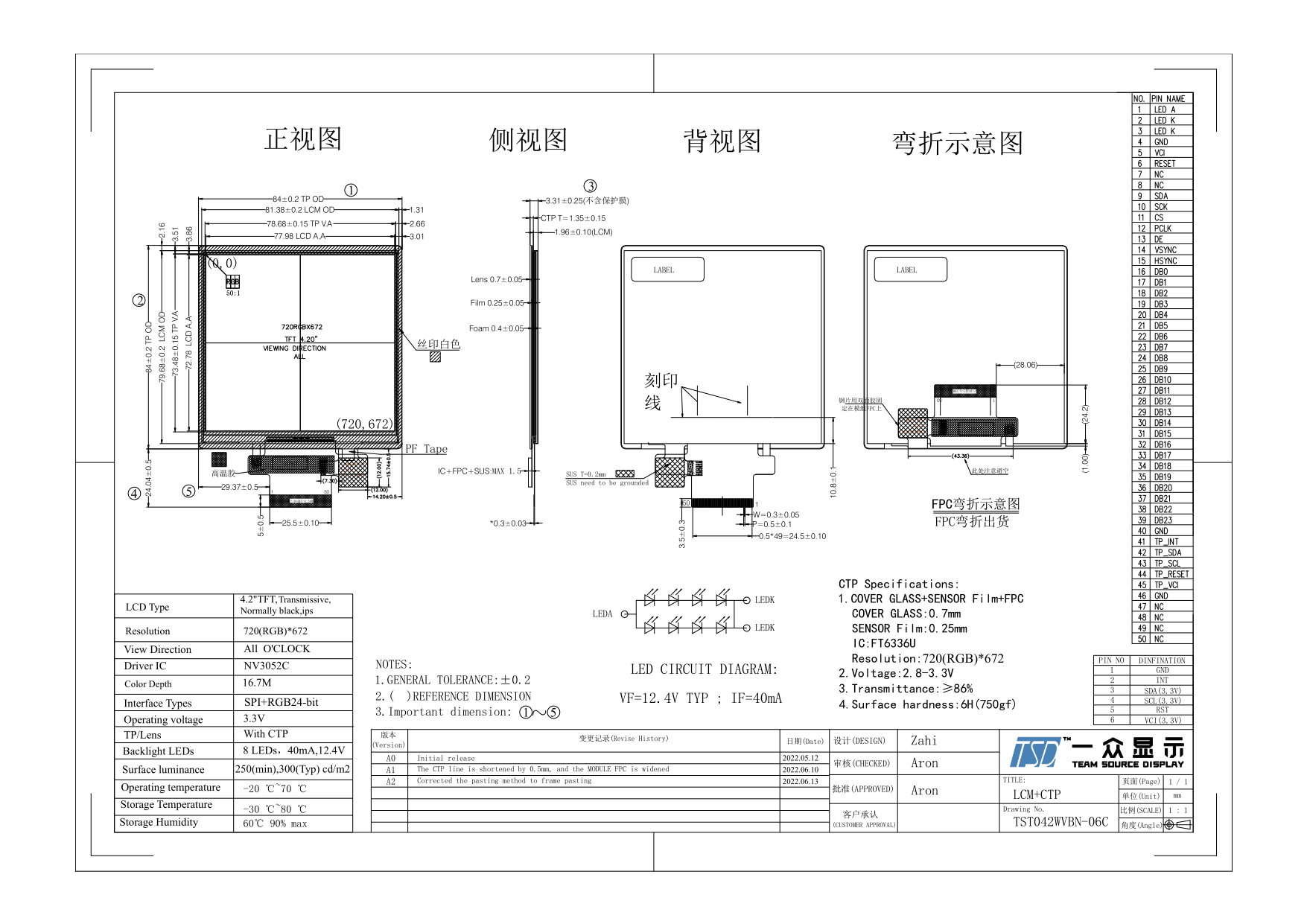

Drawing:





Specifications:





General Specification

Part No.

TST042WVBN-06C

Voltage

2.8-3.3V

Surface hardness

6H

Resolution(dots)

720 (RGB)* 672

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

250(min),300(Typ) cd/m2

Touch panel

Yes

Pixel arrangement

RGB-stripe

Display mode

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

SPI+RGB24-bit

Module lifetime(Hours)

25g



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
